Presentatie van de kenmerken van de apparatuur

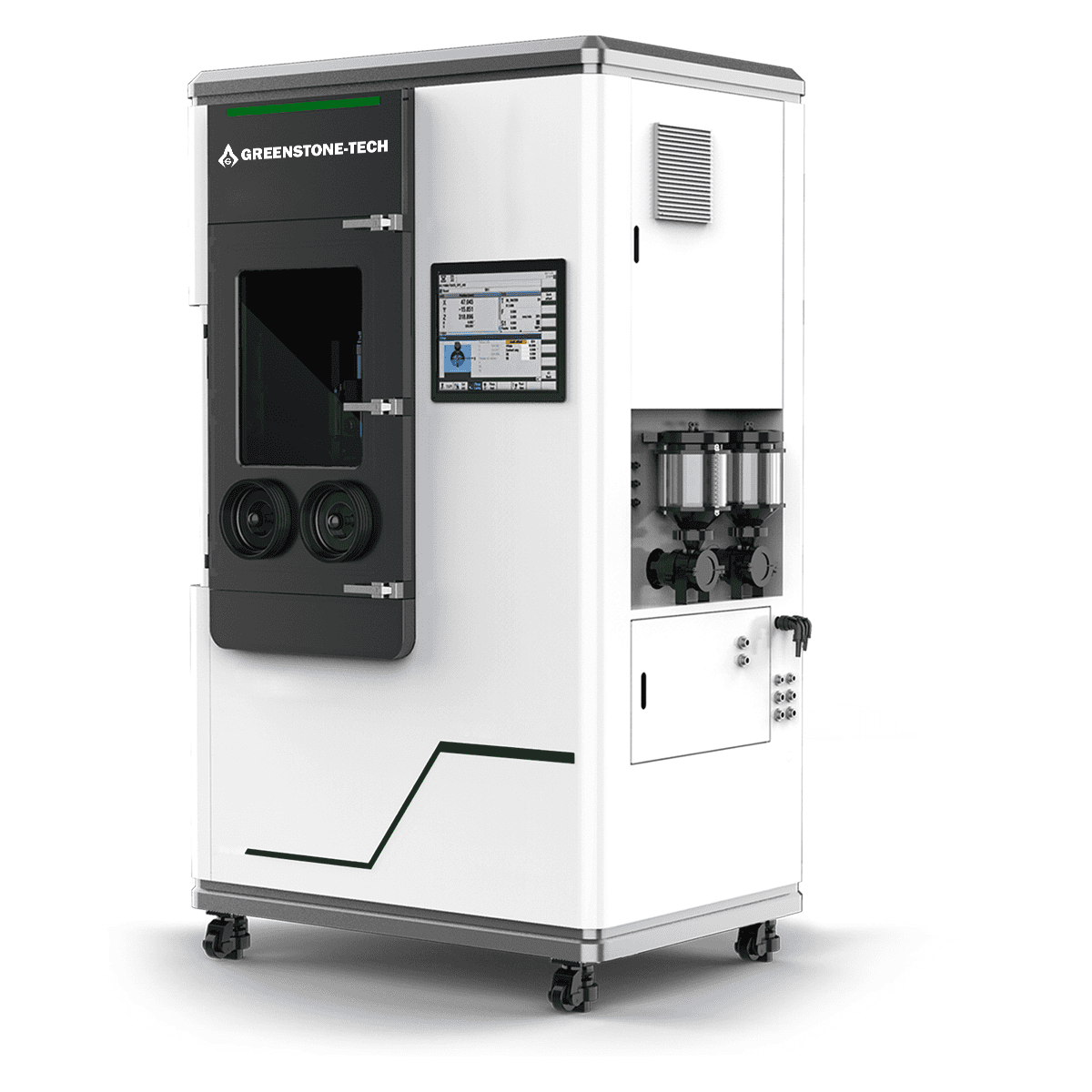

De Greenstone-Tech GLAM 150U Protective Atmosphere Powder Feed Laser Additive Manufacturing Equipment is ontworpen met een vijfassig bewegingssysteem (XYZ travel: 200mm × 150mm × 150mm, B-axis: -90° tot +90°, C-as: 360° continue rotatie), offering repetition positioning accuracy of ±0.015mm. This ensures high-precision, support-free printing en near-net-shape forming capabilities. The system features an inert atmosphere protection chamber with a chamber volume of just 0.2m³, combined with a highly efficient gas circulation system that enables rapid gas purging in 0.5 hours, significantly reducing the consumption of protective gases. The equipment supports laser power configurations ranging from 500W to 2000W, paired with an advanced powder feed system, ensuring smooth surface finish and dense internal structures for high-quality formed parts.
verwerkte monsters
De GLAM 150U excels in precisie, speed, quality, en cost efficiency. De vijfassig bewegingssysteem en fine powder feeding technology enable high-quality, support-free forming, drastically reducing the need for post-processing. The small-volume chamber combined with the rapid gas purging technology ensures extremely low inert gas consumption, effectively controlling operational costs. High-precision motion control en stable inert atmosphere guarantee consistent forming quality and reliable material properties. The GLAM 150U balances printing precision met forming efficiency, offering users an economical and reliable metal additive manufacturing solution.
GLAM 150U Protective Atmosphere Laser Additive Manufacturing System
| Parameter | Specificatie |
|---|---|
| Bewegingssysteem | 5-Axis |
| XYZ reisbereik | 200mm × 150mm × 150mm |
| X/Y/Z herhaalbaarheid | ±0.015mm |
| B-Axis reizen | -90° to +90° |
| C-as verplaatsing | 360° continuous |
| Afmetingen | 1300mm × 900mm × 2250mm |
| Aanbevolen laservermogen | 500W / 1000W / 2000W |
| Model | GLAM 150U |
