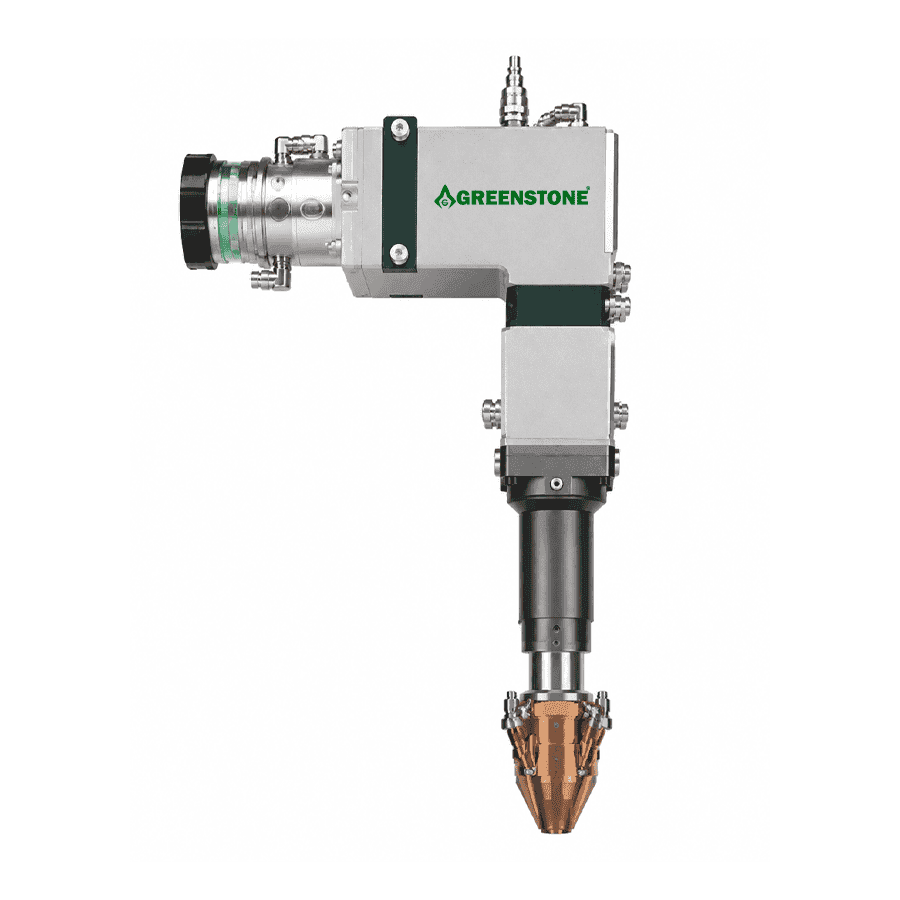

GST 90-Degree Bend Reflective Laser Cladding Head
Presentation of the equipment's characteristics
The GST 90° Bend Reflective Laser Cladding Head is a high-power processing head designed for laser cladding and DED/LMD applications where compact installation space and angled access are required.
Featuring a 90-degree bend laser head design, it enables flexible toolpath reach and improves accessibility for complex parts, internal corners, and confined working areas.
Built with a reflective optical design, this cladding head supports a laser power range of 6–15 kW and offers focal length configurations including F150, F350, and F400. With optional annular powder feeding modes, it delivers stable deposition quality and efficient coating performance for industrial repair and surface engineering tasks.
90° Bend Laser Head for Better Accessibility
Provides angled laser output for tight spaces, complex geometries, and hard-to-reach cladding positions.Reflective Optical Design for High Power
Optimized for high-power laser processing with improved thermal stability and reliable beam transmission.High Power Range (6–15 kW)
Suitable for heavy-duty cladding, refurbishment, and high-throughput industrial coating production.Multiple Focal Length Options
Supports F150 / F350 / F400 to match different working distances and process requirements.Configurable Annular Powder Feeding
Supports annular powder outlet options such as 3×3 / 4×4 / 5×5, improving powder distribution and coating uniformity.Multiple Fiber Laser Interfaces
Compatible with QBH / LOE / QD / Q+ interfaces for easy integration with mainstream fiber laser sources.Replaceable Protective Windows
Upper and lower protective windows protect internal optics and help reduce maintenance downtime.
| Parameter | Specification |
|---|---|
| Product Model | GST-F150 / 4×4-F350 |
| Head Type | 90° bend laser head |
| Optical Design | Reflective |
| Laser Power Range | 6,000 W – 15,000 W |
| Focal Length Options | F150 / F350 / F400 |
| Beam Spot Type | Circular (typical) |
| Spot Size | 3 – 5 mm (typical) |
| Powder Feeding Options | Annular powder feeding: 3×3 / 4×4 / 5×5 |
| Laser Interface | QBH / LOE / QD / Q+ |
| Upper Protective Window | 50 × 5 mm |
| Lower Protective Window | 50 × 5 mm |
| Application | Laser cladding, DED/LMD, surface repair, wear & corrosion protection coatings |
