Industrial Laser Cleaning Solutions
Delivering advanced non-contact laser cleaning technologies, Greenstone provides industrial-grade solutions for surface preparation, oxide and rust removal, coating stripping, weld seam cleaning, and precision material restoration. Our systems are engineered for demanding global industries requiring environmentally friendly processing, high cleaning precision, substrate protection, and continuous high-efficiency operation.
What Is Laser Cleaning Technology?
Laser cleaning technology is an advanced non-contact surface treatment and precision cleaning process that uses high-energy laser beams to remove contaminants such as rust, oxide layers, paint, grease, coatings, and surface residues from a substrate without damaging the underlying base material. By precisely controlling laser energy, contaminants rapidly absorb the laser radiation and are vaporized, ablated, or thermally separated from the workpiece surface, achieving highly efficient, environmentally friendly cleaning with exceptional accuracy.
This process is widely recognized for providing superior surface preparation, restoration, and maintenance across industrial applications including weld seam preparation, mold cleaning, aerospace component refurbishment, automotive manufacturing, power generation equipment maintenance, and precision mechanical engineering. Laser cleaning enables selective removal of unwanted materials while preserving substrate integrity, making it highly effective for sensitive, high-value components.
Unlike traditional cleaning methods such as chemical cleaning, abrasive blasting, or mechanical grinding, laser cleaning offers localized energy input, minimal thermal distortion, reduced secondary waste, and eliminates the need for chemicals, media blasting materials, or consumables. These advantages significantly improve cleaning quality while reducing environmental impact, maintenance downtime, and operational costs.
Laser cleaning systems support a broad range of materials including carbon steel, stainless steel, aluminum alloys, titanium alloys, copper alloys, molds, rail components, and composite surfaces. The process allows precise adjustment of power density, pulse frequency, scanning patterns, and automation parameters, providing exceptional flexibility for customized industrial cleaning solutions.
Due to its precision, efficiency, automation compatibility, and sustainable manufacturing benefits, laser cleaning technology is increasingly adopted across industries such as aerospace, rail transportation, heavy equipment, shipbuilding, automotive, tooling, and energy sectors. It plays a critical role in extending equipment lifespan, improving surface quality, reducing hazardous waste, and supporting modern green manufacturing initiatives.
As a high-performance industrial cleaning solution, laser cleaning continues to redefine surface treatment standards by delivering cost-effective, precise, and environmentally responsible solutions for advanced industrial maintenance and manufacturing.
Advantages Of Laser Cleaning Technology
Laser cleaning technology represents a transformative advancement in industrial surface treatment, delivering significant advantages over traditional cleaning methods such as abrasive blasting, chemical cleaning, dry ice blasting, and thermal cleaning. By utilizing highly focused laser energy for precise contaminant removal, laser cleaning provides superior cleaning efficiency while minimizing substrate damage, consumable costs, environmental impact, and operational complexity.
As an advanced non-contact surface engineering solution, laser cleaning is widely recognized for its ability to improve production efficiency, reduce maintenance costs, eliminate hazardous waste, and enhance cleaning precision across modern industrial sectors. Its selective material removal capability allows manufacturers to remove rust, paint, oxides, grease, coatings, and contaminants without affecting the underlying base material.
Why Laser Cleaning Matters
Compared to conventional cleaning technologies, laser cleaning provides a safer, more sustainable, and highly automated solution for industrial maintenance, restoration, and manufacturing preparation. It is increasingly used across aerospace, automotive, heavy equipment, rail transportation, power generation, tooling, electronics, medical equipment, and food processing industries where precision, cleanliness, and environmental compliance are essential.
By combining precision beam control, automation compatibility, consumable-free operation, and green manufacturing principles, laser cleaning technology has become a leading solution for advanced industrial cleaning and surface preparation worldwide.
Eco-Friendly and Chemical-Free Process
No chemicals, solvents, abrasives, or cleaning fluids are required, significantly reducing environmental pollution and hazardous waste generation.
Non-Contact Cleaning Without Substrate Damage
Laser cleaning precisely removes contaminants while preserving the structural integrity, dimensional accuracy, and surface finish of the base material.
Selective Precision Cleaning Capability
Laser energy can target specific contaminants or treatment zones, minimizing unnecessary material removal and improving localized process control.
Minimal Secondary Waste and Easy Waste Recovery
Cleaning byproducts are typically dry particles or fumes that are easily captured through filtration systems, greatly simplifying waste management.
Low Operating and Maintenance Costs
No consumables, reduced tooling wear, and easy automation integration significantly lower long-term operating expenses.
Enhanced Safety and Health Protection
Reduced operator exposure to chemicals, blasting media, and hazardous residues improves workplace safety.
High Automation and Process Integration
Laser cleaning systems can be integrated with robotic arms, CNC platforms, and production lines for repeatable, high-throughput industrial applications.
Versatile Material Compatibility
Suitable for metals, composites, molds, precision tools, aerospace alloys, medical equipment, and delicate industrial surfaces.
Reduced Downtime and Improved Productivity
Fast setup, precision targeting, and minimal post-processing requirements increase production throughput and reduce maintenance interruptions.
Superior Sustainability and Green Manufacturing Compliance
Supports modern environmental standards by minimizing emissions, reducing waste, and lowering total lifecycle environmental costs.
Laser cleaning compared with other cleaning
Laser cleaning does not use any chemical solvents or other consumables. It is environmentally friendly, safe to operate, and has obvious advantages.
technical background:
Traditional cleaning methods include mechanical cleaning, chemical cleaning and ultrasonic cleaning. Their applications in environmental protection and high-precision requirements are greatly limited. In the 1980s, people discovered that focusing a high-energy laser beam on the contaminated parts of an object causes the irradiated material to undergo a series of complex physical and chemical processes such as vibration, melting, evaporation, and combustion, which can cause the pollutants to escape from the surface of the object. , to achieve the removal of surface contaminants, this is laser cleaning, which gradually replaces traditional cleaning processes in many fields with its many advantages.
Industry application system principles:

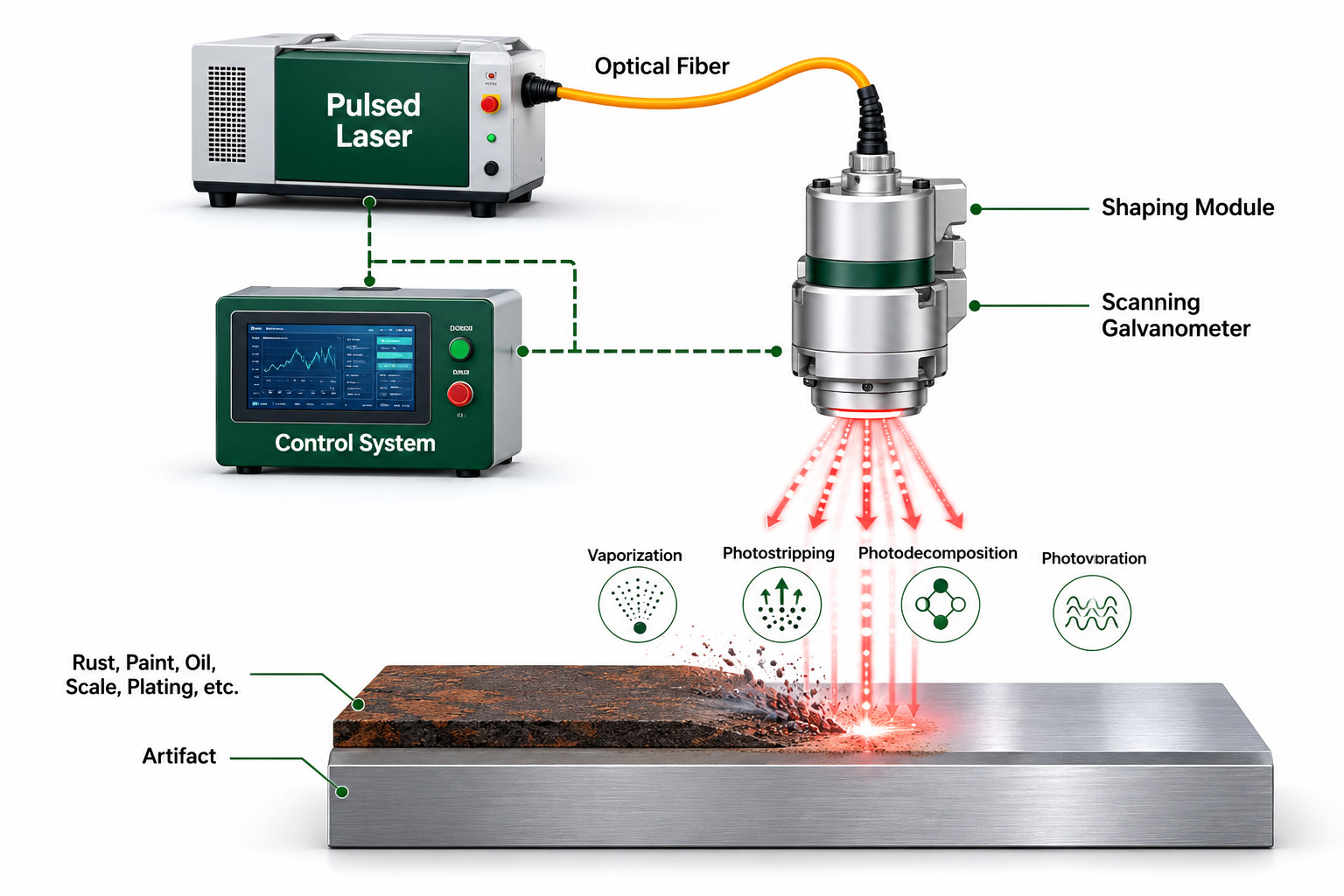

The pulse laser generates high-energy pulse laser and transmits it to the shaping module through the optical fiber. It is reflected by the single-axis or dual-axis scanning galvanometer and irradiates the dirt layer on the surface of the workpiece. It adheres to the rust, paint, oil, oxide scale, coating, etc. on the surface of the workpiece. The purpose of cleaning is achieved after the layer is vaporized, light-stripped, light-decomposed, and light-vibrated.
Items | Laser cleaning | Chemical cleaning | Mechanical grinding | Dry ice blasting | Ultrasonic cleaning |
Cleaning method | laser non-contact | Chemical cleaning agent contact type | Mechanical/Sandpaper | Contact | Dry ice non-contact |
Workpiece damage | no | yes | yes | no | no |
Cleaning efficiency | high | low | low | medium | medium |
Consumables | Just power on | chemical cleaning agent | Sandpaper | grinding wheel | whetstone |
Cleaning effect | Very good | high cleanliness | Average | uneven | Average |
Precise cleaning | Accurate and controllable | high accuracy | Uncontrollable | poor accuracy | Uncontrollable |
Safety/eco friendly | No pollution | chemical pollution | polluted environment | No pollution | No pollution |
Manual operation | Easy to operate | handheld or automated | The process flow is complex and requires high requirements on operators | and pollution prevention measures need to be taken. | It consumes manpower and requires pollution prevention measures. |
Cost input | High initial investment | no consumables | and low maintenance costs | Low initial investment and extremely high consumable costs | High initial investment |

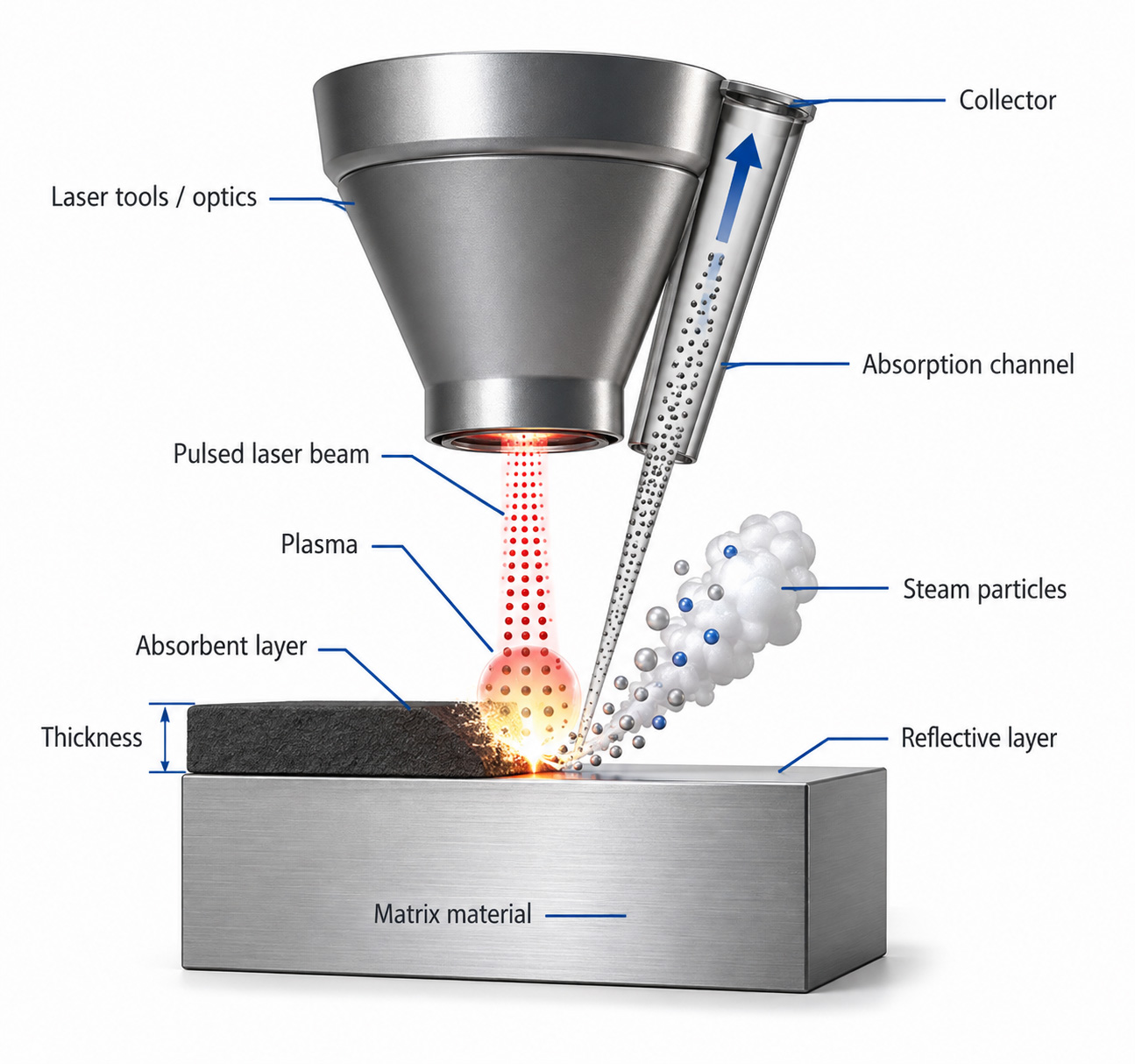

Industrial laser cleaning principles
Industry application system principles
Laser cleaning test
Can be flexibly applied to various cleaning surface treatment operations in industrial products
Orthogonal experiment on paint removal from iron-based substrates
Base material: iron base
Contaminant: paint layer
Thickness: 80-100μm
Removal efficiency: 3㎡/h
Iron-based substrate surface oil stain/scale removal experiment
Base material: iron base
Pollutants: rust, oil, scale
Removal efficiency: 4㎡/h
Laser Cleaning Technology Application Cases
Laser cleaning technology is widely applied across modern industrial sectors for precision surface preparation, selective contaminant removal, coating stripping, oxidation removal, weld preparation, equipment maintenance, and high-value component restoration. By delivering highly localized, non-contact cleaning with minimal thermal impact, laser cleaning offers an ideal solution for industries requiring precision, repeatability, and environmentally sustainable manufacturing.
As an advanced industrial cleaning process, laser cleaning is particularly valuable for high-performance manufacturing, maintenance, and refurbishment applications where conventional cleaning methods may cause substrate damage, excessive waste, or operational inefficiencies.
Industry Application Advantages
Laser cleaning enables manufacturers to improve cleaning precision, reduce hazardous waste, minimize downtime, and significantly lower lifecycle operating costs. Compared to abrasive blasting, chemical stripping, and thermal cleaning, laser cleaning offers superior flexibility for complex geometries, selective treatment zones, and automated production integration.
General Manufacturing Industry
Rust removal, paint stripping, weld seam cleaning, tooling maintenance, and production line cleaning.
Aerospace and Aviation Applications
Aircraft component cleaning, turbine maintenance, oxide removal, coating preparation, and composite-safe cleaning.
Automotive Manufacturing
Brake system cleaning, battery tray preparation, mold cleaning, weld seam pretreatment, and engine component restoration.
Mold and Tooling Industry
Injection molds, die-casting molds, rubber molds, stamping dies, and precision tooling residue removal.
Rail Transportation Systems
Brake disc cleaning, rail surface preparation, wheelset maintenance, corrosion removal, and infrastructure refurbishment.
Power Generation and Heavy Equipment
Turbines, generators, mining equipment, oil & gas components, and industrial machinery maintenance.
Medical Equipment and Precision Devices
Sterilization support, oxide removal, surgical instrument cleaning, and contamination-free surface treatment.
Food and Beverage Industry
Packaging machinery cleaning, production equipment sanitation, and contamination control without chemical residue.
Electronics and Semiconductor Manufacturing
Precision oxide cleaning, circuit preparation, delicate coating removal, and contamination-sensitive applications.
Representative Laser Cleaning Workpiece Cases
Rail brake discs, aerospace panels, molds, gears, engine parts, weld seams, battery trays, food equipment, and precision tooling.
Technical Application Features
- Precision Surface Cleaning for Critical Functional Areas
Removes rust, coatings, oxides, oils, and residues from localized surfaces, weld seams, molds, and sensitive components. - Minimal Thermal Distortion and No Mechanical Stress
Highly controlled energy input protects critical surfaces and prevents deformation. - Superior Cleaning Efficiency and Surface Quality
Delivers repeatable cleaning results while improving adhesion for welding, coating, and bonding applications. - Flexible Automation for Complex Industrial Components
Robotic and CNC-compatible systems support large, irregular, or high-value workpieces. - Environmentally Friendly Manufacturing
Eliminates chemicals, blasting media, and large-scale waste disposal. - High Productivity and Cost Efficiency
Reduces consumables, lowers maintenance requirements, and shortens process cycles.
