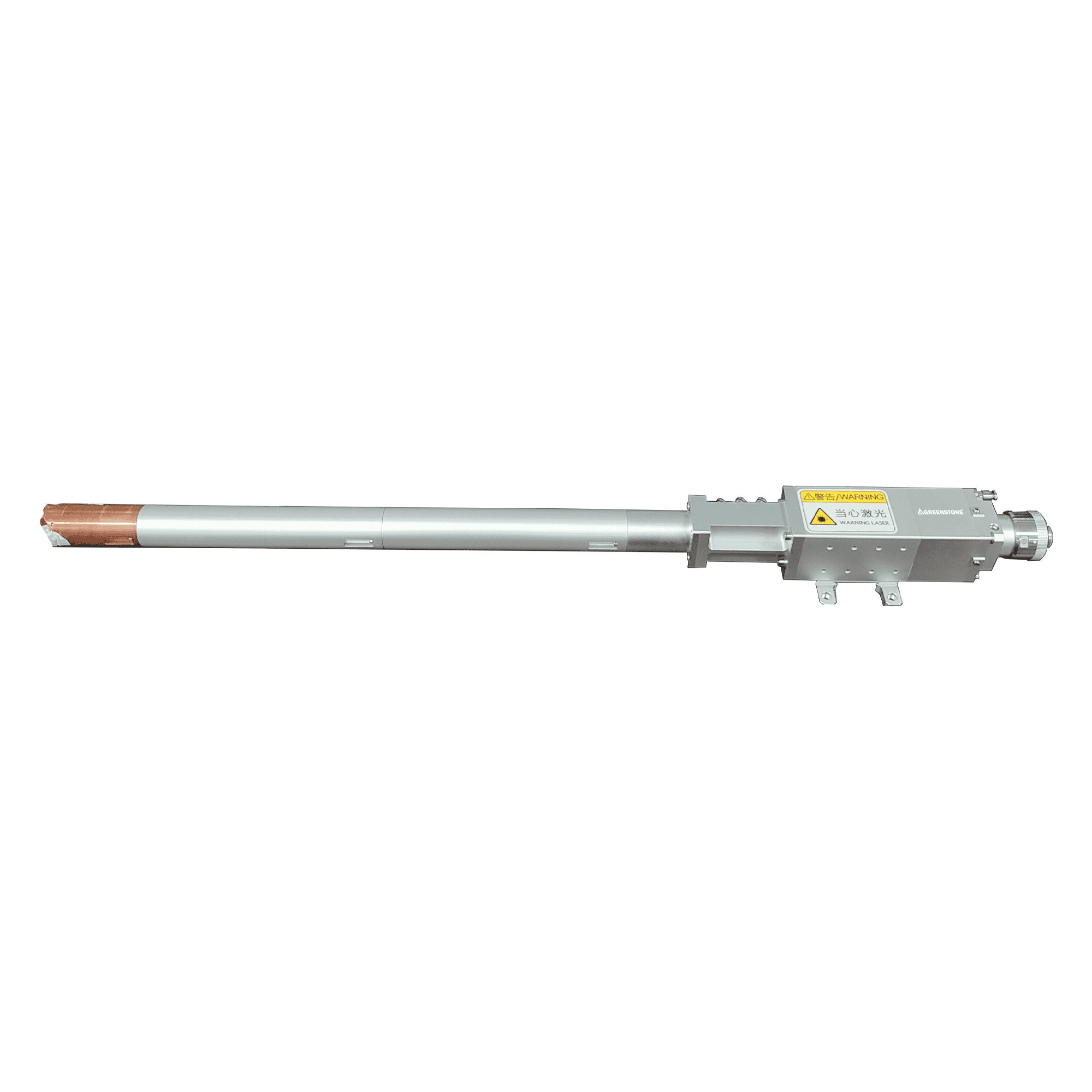

GST 100mm Internal Bore Laser Cladding Head
Presentation of the equipment's characteristics
The GST 100mm Internal Bore Laser Cladding Head is designed for high-efficiency internal laser cladding and DED/LMD deposition in large bores and internal cylindrical surfaces.
With a robust optical and powder delivery structure, it supports stable coating build-up inside bores where conventional external cladding heads cannot reach.
This model supports up to 10 kW laser power and provides flexible powder feeding configurations, including two-beam and four-beam powder delivery, enabling optimized deposition stability and productivity for different internal cladding requirements.
Designed for Large Internal Bores (≥ 100 mm ID)
Optimized for internal cladding and coating build-up on large inner diameters.High Power Capability (≤ 10 kW)
Suitable for demanding industrial cladding and refurbishment applications.Flexible Powder Feeding Options
Supports two-beam and four-beam powder feeding, enabling stable powder distribution and improved deposition consistency.Stable Internal Deposition Performance
Designed to improve melt pool stability and coating uniformity for internal cylindrical surfaces.Multiple Fiber Laser Interface Compatibility
Compatible with QBH and LOE interfaces for integration with mainstream fiber laser sources.Multi-Layer Protective Window Design
Upper, middle, and lower protective windows protect internal optics and extend maintenance intervals in harsh internal processing environments.
| Parameter | Specification |
|---|---|
| Product Model | GST-F100 / F200 |
| Product Type | Internal bore laser cladding head |
| Maximum Laser Power | ≤ 10 kW |
| Collimation | F100 |
| Focal Length | F300 |
| Powder Feeding | Two-beam powder feeding / four-beam powder feeding |
| Laser Interface | QBH / LOE |
| Minimum Bore Diameter | ≥ 100 mm |
| Upper Protective Window | 35 × 2 mm |
| Middle Protective Window | 35 × 4 mm |
| Lower Protective Window | 10 × 1.6 mm |
| Application | Internal bore laser cladding, DED/LMD deposition, wear & corrosion protection, internal surface repair |
