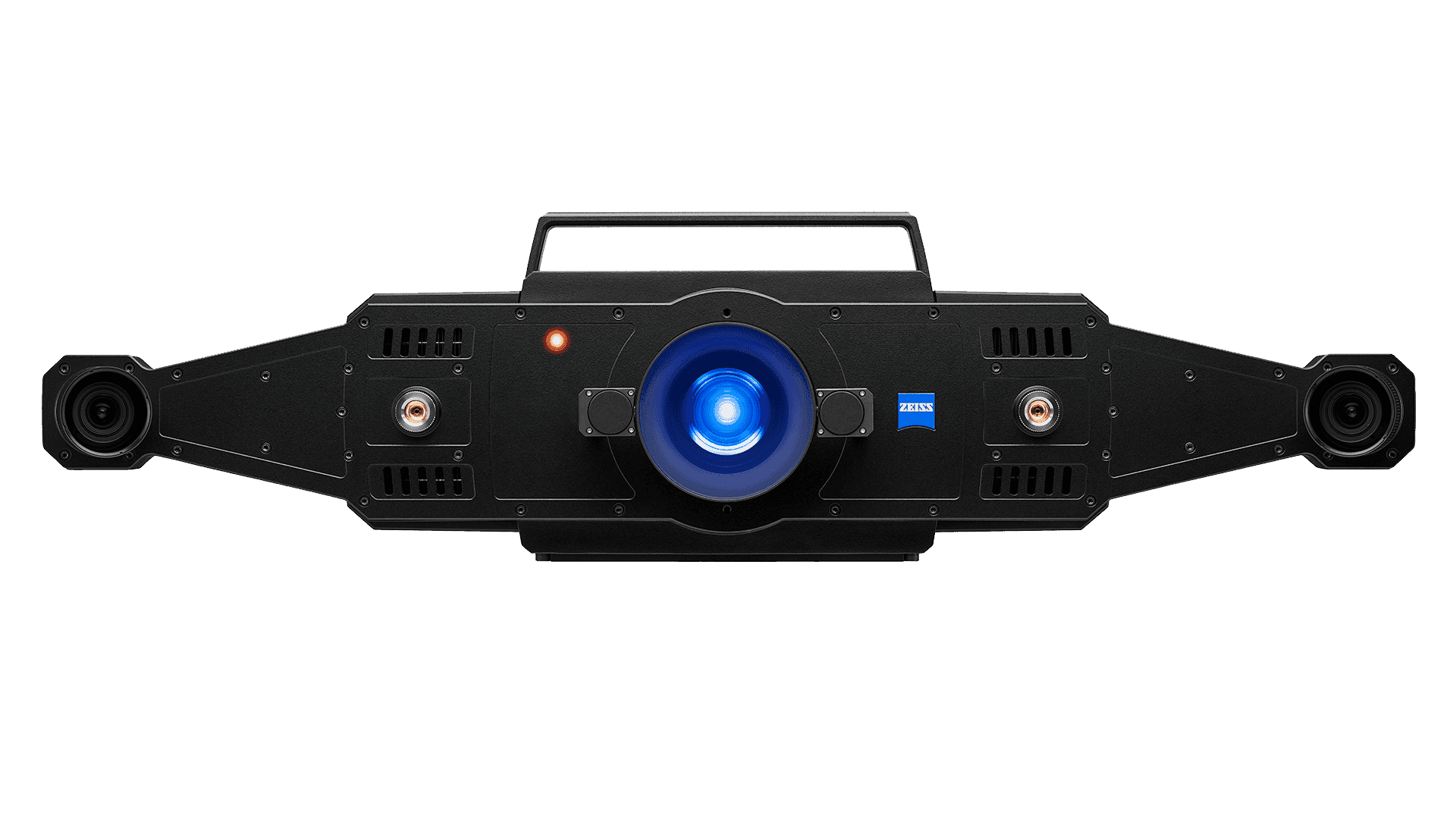

Fast full-field data for large measuring areas
With its ultra-bright laser source and large measuring area of ​​up to 4 m², the ZEISS ATOS LRX provides accurate full-field data in a short time. With just one scan, the sensor captures up to 2 × 12 million coordinate points.

3D scanning system for industrial needs
The sensor meets the high metrological requirements of industrial users. In combination with ZEISS INSPECT, the widely recognized 3D measurement standard, the 3D scanner seamlessly guides you through the complete workflow of scanning, inspection and reporting.

Fast digitization, high-resolution data
The ZEISS ATOS LRX provides accurate full-field high-resolution data, even for complex geometries and free-form surfaces. The ultra-bright laser source combined with the large measuring area reduces the number of scans required.

Rugged design
The sensor is designed for industrial use and its rugged housing is dust- and water-resistant. To work reliably and accurately even in harsh production environments, the system monitors the calibration status itself.

All-in-one software for scanning, inspection and reporting: The sensors are managed by ZEISS INSPECT. The software supports the 3D scanning and inspection process with detailed analysis and reporting functions.

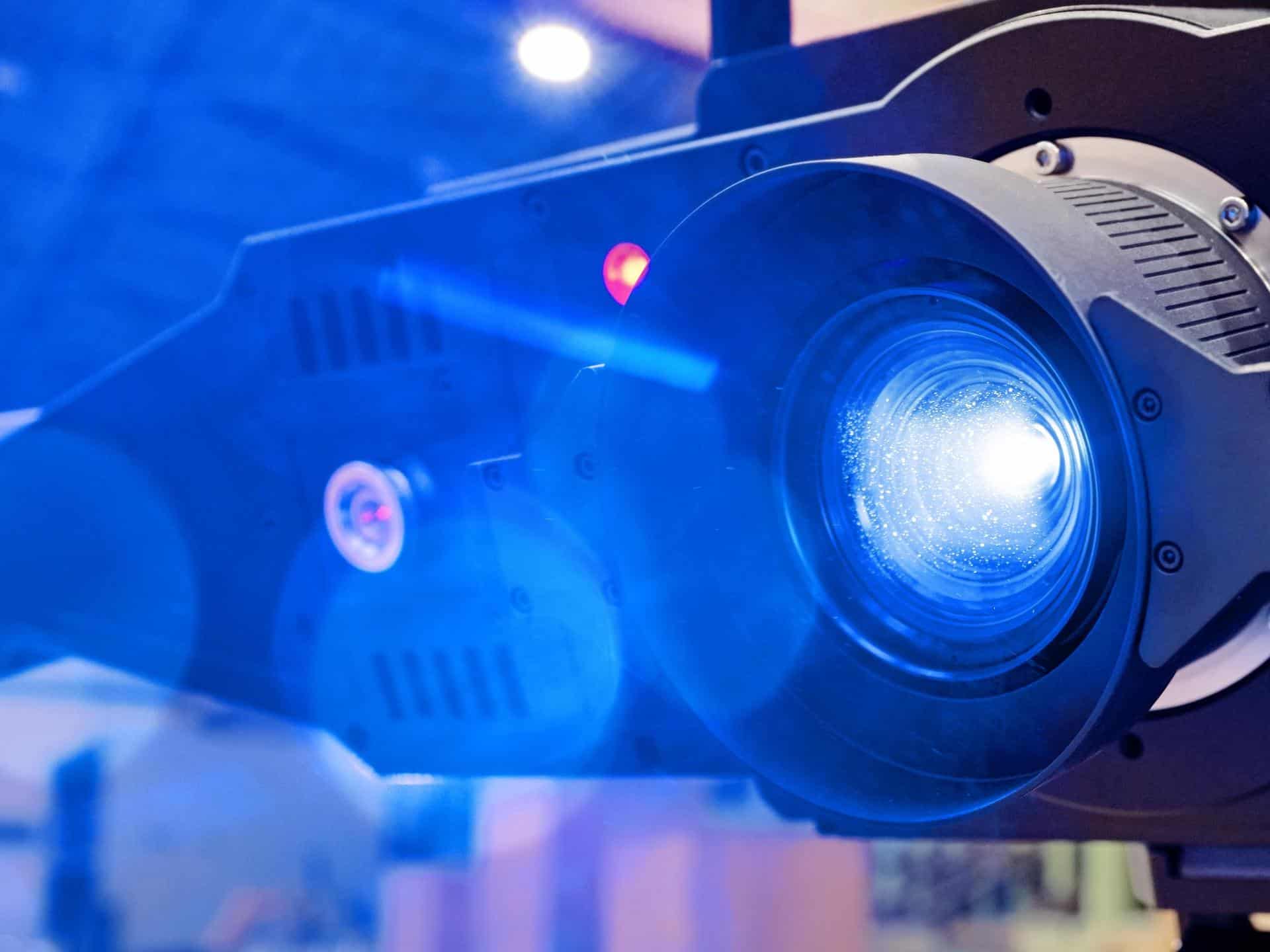

New generation of laser sources
The ZEISS ATOS LRX is equipped with an advanced ultra-bright laser source that enables 3D scanning even in difficult ambient light conditions. By capturing a large measurement area, the system is the first choice for fast large-area scanning of surfaces, even dark or shiny surfaces, and still provides accurate high-resolution data.

Laser compressor
The built-in laser source compressor couples several laser sources together to produce very bright light. It can illuminate the entire measurement area (up to 4 square meters) with a very short exposure time, thus increasing the scanning speed.

Highly safe
Despite the use of laser light, the ZEISS ATOS LRX guarantees maximum safety for manual use: The built-in sensor directly monitors the safety distance to the user and reduces the light intensity if necessary. The resulting non-witnessed laser protection class 2 allows the system to be operated without any further protective measures.

Interactive functions
ZEISS ATOS LRX supports interactive functions such as probe pair measurement, real-time tracking and feedback. The sensor can be controlled by a PC or remote control.

Effective analysis tools
ZEISS INSPECT is a one-stop shop
Scanning, inspection and reporting: The software guides you through the entire workflow. Check nominal-actual comparisons as well as geometric and positional tolerances. With easy-to-understand results, you can directly make necessary corrections. Use ZEISS INSPECT for comprehensive analysis, comprehensive reporting and integration of measurement results into existing processes.

Reliable and easy to use
The entire workflow is controlled by the powerful ZEISS INSPECT software: The 3D scanner generates full-field data and derives any required inspection or analysis results from it. This allows users to operate easily and intuitively from data acquisition to inspection and reporting in a unified interface.

HyperScale: Recalibration without delays
The new HyperScale software function is designed for very fast on-site calibration. Calibration is completed with just one measurement of a DAkkS-certified length standard.

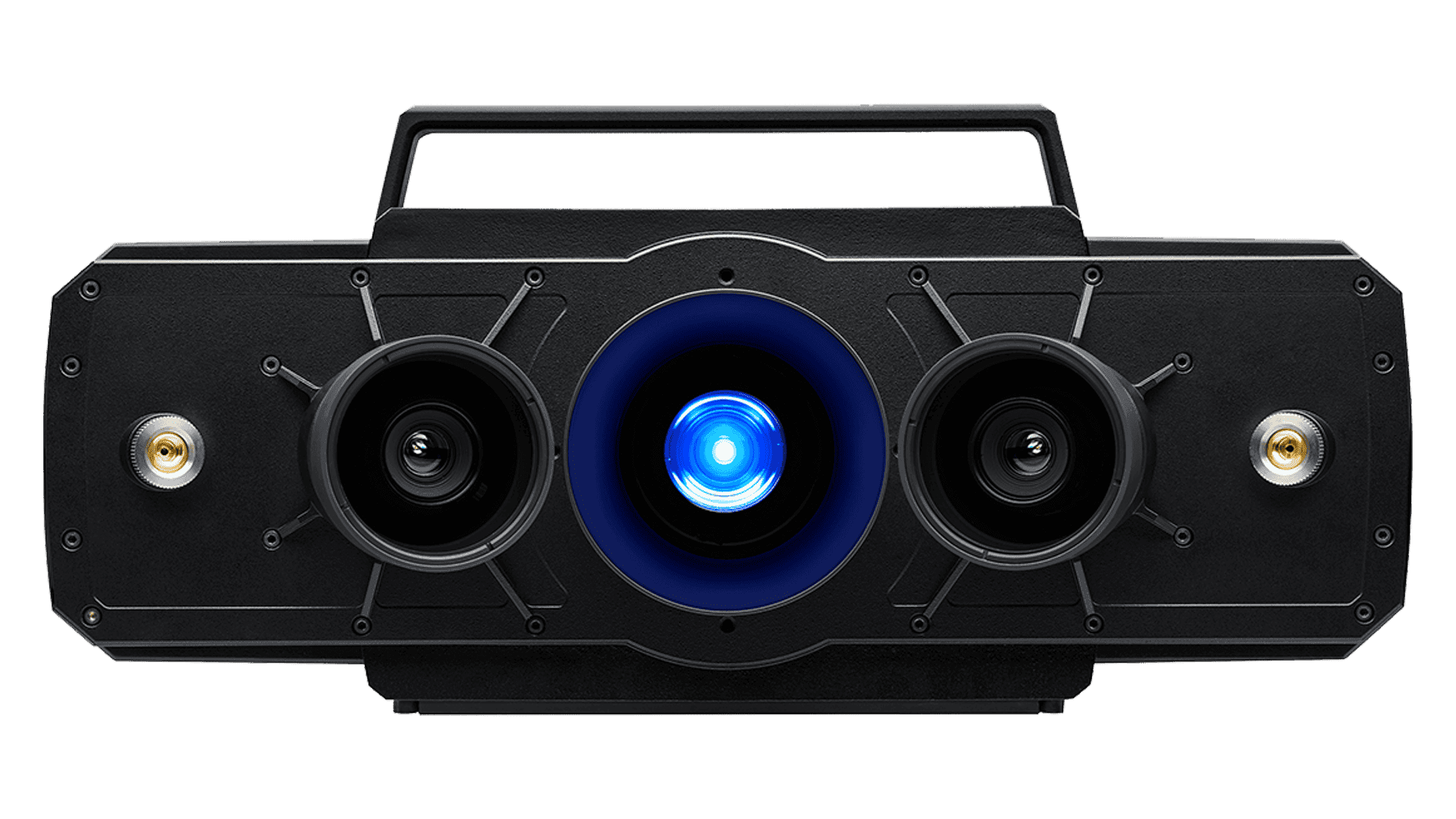

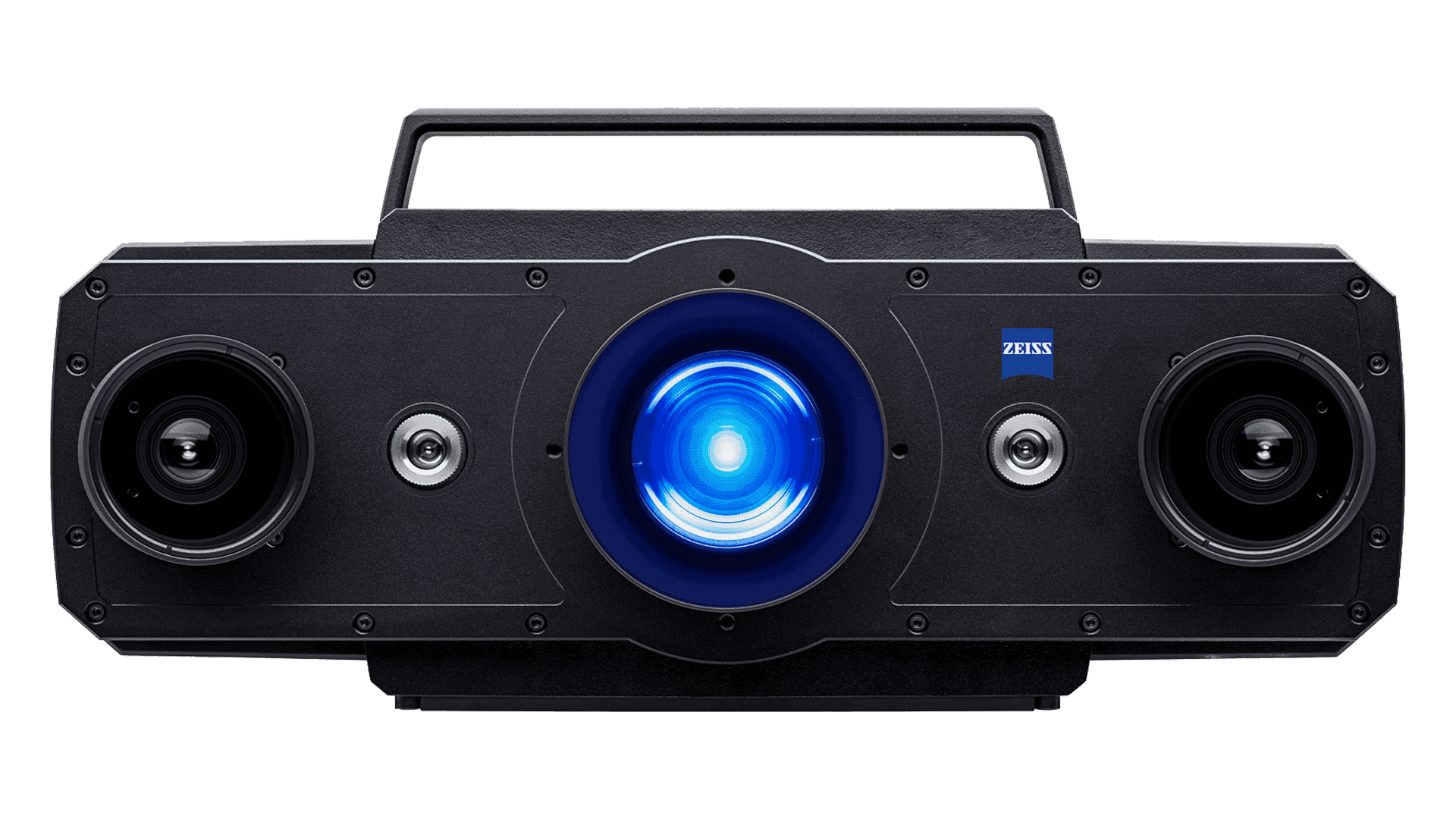

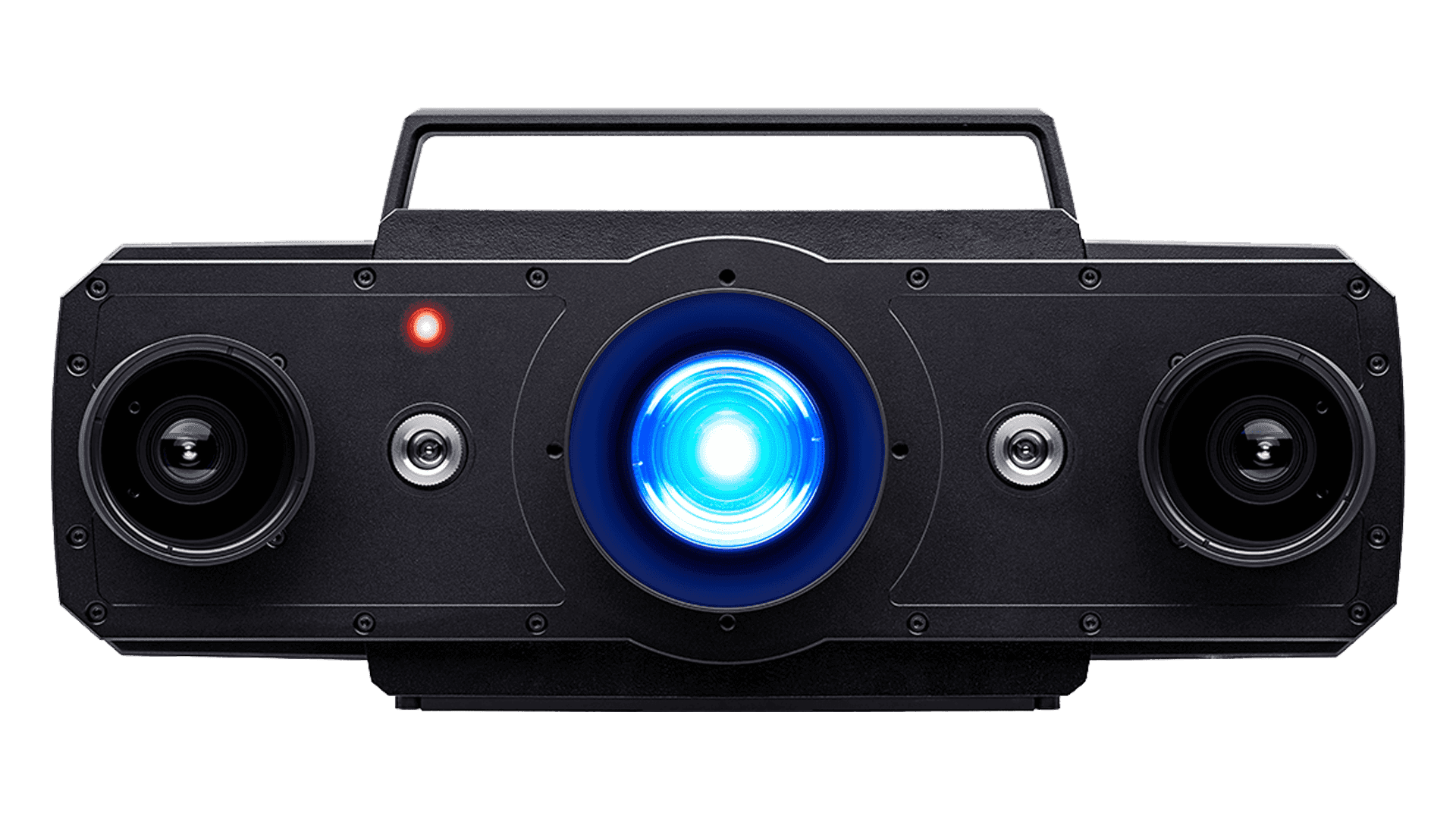

ATOS 5 Series
ATOS sensors are tailored to the metrological requirements of industry. They deliver absolutely accurate and traceable measurement results even under harsh conditions. The 3D sensors use structured blue light for contactless scanning.

Powerful in multiple industries

Industria aerospațială

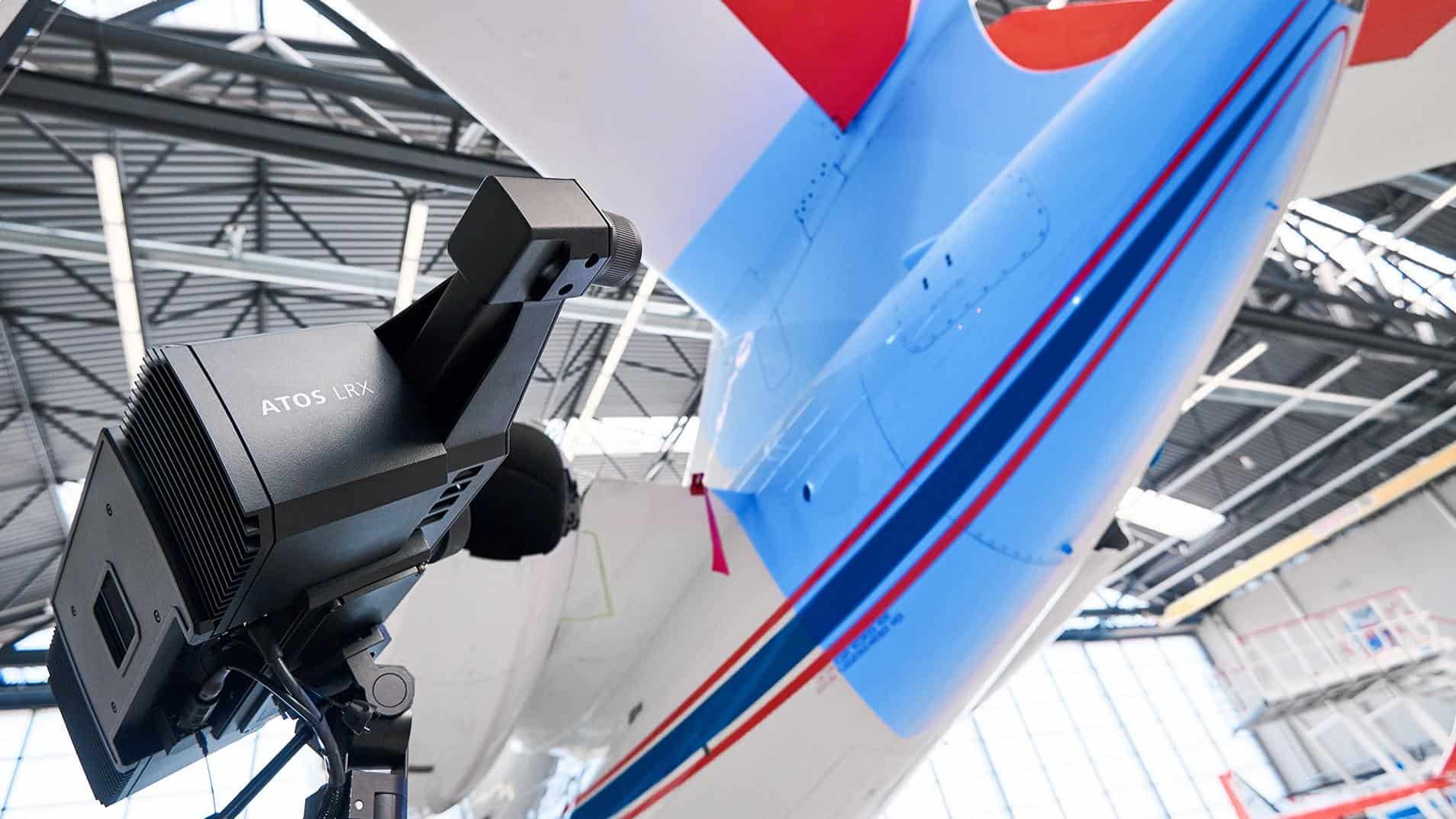

In aerospace, the ZEISS ATOS LRX inspects structural components such as fuselages, wing fins, tailplanes and wings. The sensor is also used to digitize fuselage skins, for example to check the flatness between rivets and panels. In addition, the measurement results reveal more surface defects, which speeds up maintenance and repairs.

Automobile
ZEISS ATOS LRX is used to digitize surfaces such as clay models in automotive design. Due to the large measuring area, the sensor allows for a fast nominal-actual comparison after applying clay to the model. In crash tests, the ZEISS ATOS LRX enables fast 3D scanning of crashed vehicles.

Shipbuilding
3D scanners digitize the entire surface of a ship’s propeller, providing important information for maintenance and repair, such as damage to the hull.

Toolmaking and mechanical engineering
ZEISS ATOS LRX optimizes the design of components and tools. The sensor enables high-resolution digitization of models, mold halves and casting rings, such as forming tools. In mechanical engineering, 3D scanners speed up quality control of large welded assemblies.

Energia eoliană
In the design and production of wind turbines, ZEISS ATOS LRX captures rotor blades and tools as well as wind turbine casings.
