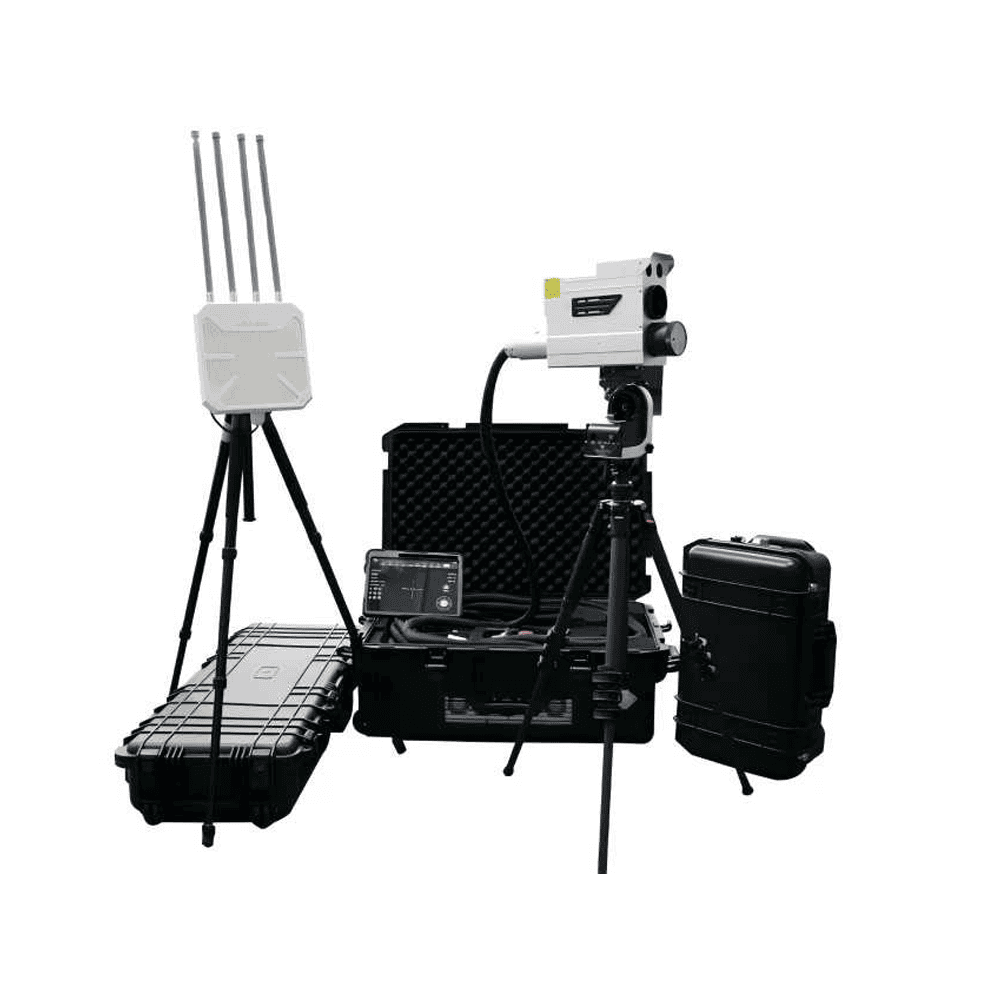

Sistem de curățare a obstacolelor cu laser cu rază lungă de acțiune Greenstone GST Series (autofocus, 0-300 m)

începeți

Prezentarea caracteristicilor echipamentului

The Greenstone GST Series Long-Range Laser Obstacle Clearing System is a professional remote laser solution designed for targeted clearing of obstacles and foreign objects in hard-to-reach areas—especially for power transmission corridors, railway overhead line zones, and restricted-access sites. Featuring a larger-aperture optical design and auto-focus capability, the system delivers a smaller, more concentrated spot for efficient clearing performance. With a working distance up to 0–300 meters, operators can perform long-range clearing while staying at a safe standoff distance, improving operational efficiency and reducing现场作业风险. The GST series supports multiple power configurations to match different targets and work intensity, making it ideal for industrial maintenance teams seeking fast deployment and reliable performance in real outdoor conditions.

probe prelucrate
Sistem de curățare a obstacolelor cu laser cu rază lungă de acțiune Greenstone GST Series (autofocus, 0-300 m)
Sistem de curățare a obstacolelor cu laser cu rază lungă de acțiune Greenstone GST Series (autofocus, 0-300 m)
Sistem de curățare a obstacolelor cu laser cu rază lungă de acțiune Greenstone GST Series (autofocus, 0-300 m)
Sistem de curățare a obstacolelor cu laser cu rază lungă de acțiune Greenstone GST Series (autofocus, 0-300 m)

  • Auto Focus + High-Efficiency Output: Auto-focus keeps the energy concentrated, helping achieve faster clearing results and stable performance across varying distances and target conditions.

  • Long-Range Operation (Up to 300 m): Enables remote operation for overhead-line corridors and restricted areas, reducing the need for close-range manual work and improving job safety.

  • Smaller Spot, Better Precision: Optimized optics provide a tighter focus for controlled, directional clearing—useful for minimizing unnecessary impact on surrounding areas.

  • Industrial Safety & Control Features: Includes safety interlocks and monitoring for key parameters (permissions, process settings, laser emission safety, position and electrical status) to support safe field operation.

  • Fast Deployment & Easy Operation: Integrated control and aiming/visual assistance (crosshair guidance and remote display) help shorten training time and speed up task execution.

  • Flexible Power Options (GST Series): Multiple model levels allow customers to choose the best configuration for their maintenance workload and operating environment.

ArticolulGST-HELS-500-UltraGST-HELS-1000-UltraGST-HELS-1500-UltraGST-HELS-2000-Ultra
Tip laserLaser cu fibrăLaser cu fibrăLaser cu fibrăLaser cu fibră
Distanța de lucru0–300 m0–300 m0–300 m0–300 m
Max Output Power500 W1000 W1500 W2000 W
Reglarea puterii10%–100% adjustable10%–100% adjustable10%–100% adjustable10%–100% adjustable
Lungimea de undă laser1070 ± 10 nm1070 ± 10 nm1070 ± 10 nm1070 ± 10 nm
Focus / Spot ControlAuto-focus; spot size stabilization (process-dependent)AcelașiAcelașiAcelași
Aiming / IndicationCrosshair guidance; alignment within 300 m (typical)AcelașiAcelașiAcelași
Remote ViewingIntegrated remote display/monitoring; no direct eye observation requiredAcelașiAcelașiAcelași
Display Latency≤ 100 ms≤ 100 ms≤ 100 ms≤ 100 ms
RăcireForced air coolingForced air coolingForced air coolingForced air cooling
Lungimea cablului de fibră≥ 1 m (custom length available)AcelașiAcelașiAcelași
Pan-Tilt (Optional)Horizontal 0–359°; Vertical -60° to 90°AcelașiAcelașiAcelași
Temperatura de funcționare-10°C până la 40°C-10°C până la 40°C-10°C până la 40°C-10°C până la 40°C
Main Unit Weight (Typical)≤ 30 kg≤ 50 kg≤ 60 kg≤ 80 kg
Power Unit (Typical)External power module (size/weight varies by model)AcelașiAcelașiAcelași
Continuous Full-Load Runtime≥ 1 hour (typical)≥ 1 hour (typical)≥ 1 hour (typical)≥ 1 hour (typical)
Safety FeaturesKey switch, emergency stop, password access, operational boundary/zone control, tilt protection, intrusion stop (typical)AcelașiAcelașiAcelași
