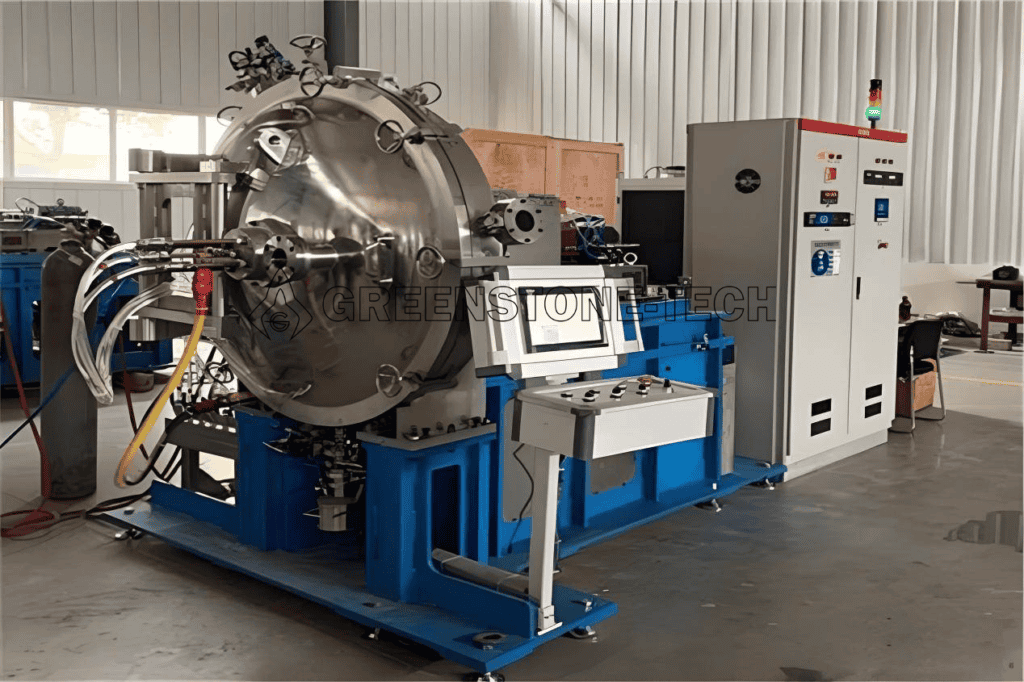

Presentation of the equipment's characteristics
processed samples
Functional Advantages

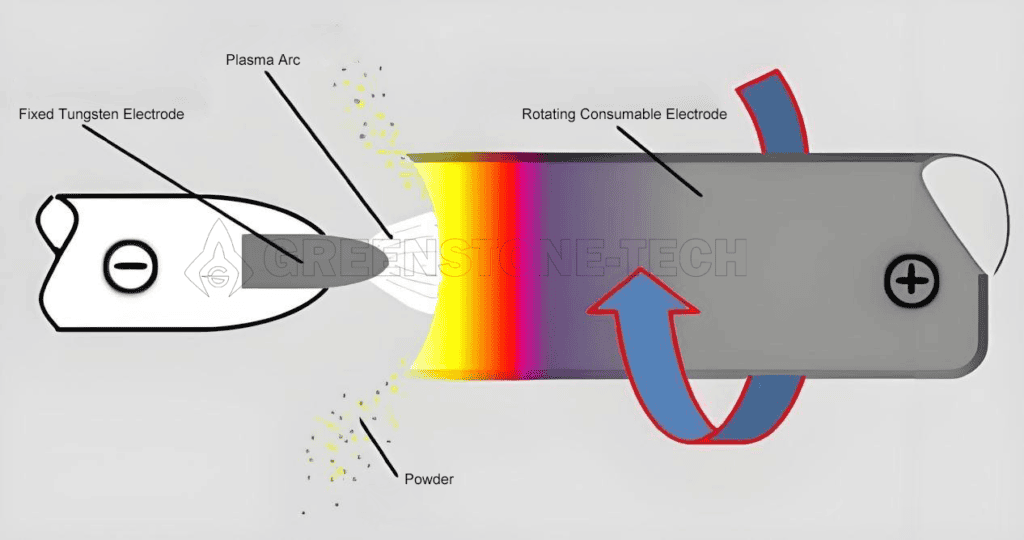

- High Speed and Efficiency: Electrode rod rotation speed reaches 50,000 rpm, ensuring high efficiency, stability, and reliability. Each batch can be completed within 1 hour.
- Wide Material Compatibility: High energy density with a melting temperature exceeding 2600°C, capable of producing titanium alloys, special steels, superalloys, high-entropy alloys, and refractory metals.
- High Fine Powder Yield: Fine powder yield is high, with a 15-53μm powder collection rate of ≥70% (IN718).
- High Purity and Sphericity: Non-contact powder production process ensures high powder purity, oxygen increment ≤100ppm, excellent sphericity, and minimal hollow and satellite powder.
- Compact and Easy Installation: The equipment has a small footprint, making it easy to install.
- Ideal for R&D and Production: Suitable for rapid research and production of small-batch, multi-variety, high-quality spherical metal powders.
| Rotation speed | ～50000 rpm |
| Diameter of electrodes | Φ30 mm |
| Powder morphology | spherical rate≥95% |
| Particle size | D50≤43μm (IN718) |
| Oxygen increment | ≤100 ppm（IN718） |
| Production capacity | ≥10-15 kg/8h（IN718） |
| Atmosphere | Ar or He |
| Maximum power | 120 kW |
| Floor space | 4 m×3 m×2.5 m |
