GFlex Robot cu șase axe Echipament de placare cu laser pentru producție aditivă

începeți

Prezentarea caracteristicilor echipamentului

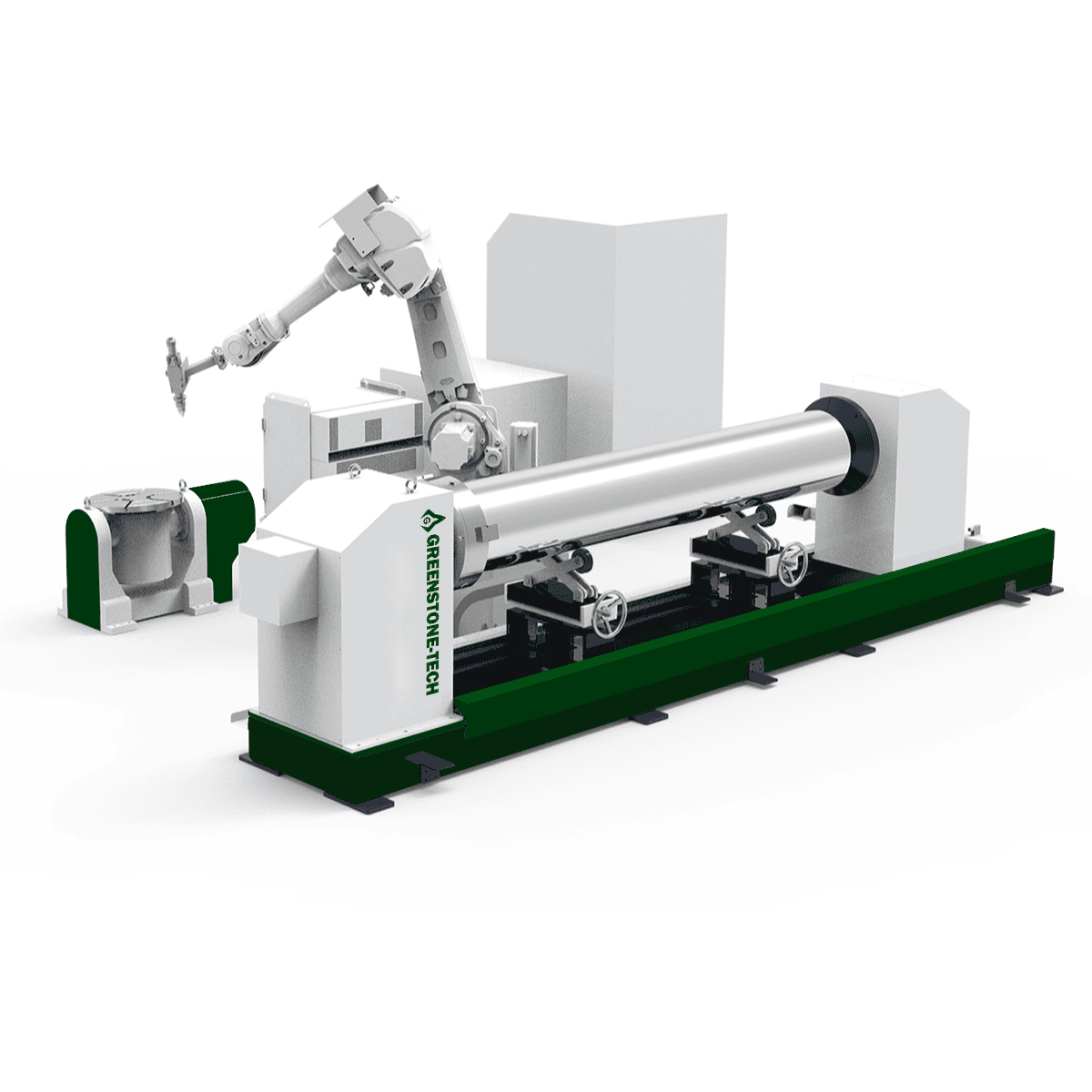

The Greenstone-Tech GFlex Series is a cutting-edge open six-axis additive manufacturing system based on industrial robots, designed for high-performance applications. It features a serial six-degree-of-freedom robot, integrated with a horizontal bed și positioner, în sprijinul 7/8-axis linkage. With robot arm spans ranging from 1400mm to 3000mm, the system comes equipped with two powder feeders și fiber laser technology, offering laser power options from 3kW to 6kW. It is ideal for additive manufacturing and repair of a variety of materials, including nickel-based alloys, mold steels, stainless steels, și high-temperature steels. The system also supports optional accessories, such as robotic slides, single-axis positioners, or dual-axis positioners, ensuring versatility and ease of use. With its modular design și highly integrated features, the GFlex Series offers unparalleled flexibility in industrial additive manufacturing applications.

probe prelucrate
Prelucrarea prin placare laser a diferitelor piese
Tehnologie tradițională de placare cu laser de viteză ultra-rapidă
Caz de placare cu laser
GFlex Robot cu șase axe Echipament de placare cu laser pentru producție aditivă

The GFlex Series stands out with its high freedom of movement, offline programming capability, și extended forming range, making it perfect for manufacturing long-axis și complex curved components like crankshafts, hydraulic supports, columns, și rollers. Its modular design ensures high system stability, while the integrated system simplifies operations and reduces setup time. The GFlex Series is highly adaptable, making it the ideal choice for demanding industrial environments with complex conditions. Whether for additive manufacturing sau remanufacturare, a GFlex Series offers exceptional performance and versatility, streamlining the production process and providing efficient, cost-effective solutions for industries such as auto, aerospațial, și energie.

GFlex Series

FeatureSpecificații
Motion ModeSerial 6-axis robot combined with horizontal bed and positioner
Robot Arm Span1400-3000mm (optional)
Number of Powder Feeders2
Puterea laserului3kW-6kW
Materiale aplicabileNickel-based alloy, Mold steel, Stainless steel, High-strength steel
Tip laserLaser cu fibră
Accesorii opționaleRobot sliding unit, Single-axis positioner, Dual-axis positioner

GFlex Robot cu șase axe Echipament de placare cu laser pentru producție aditivă
