Prezentarea caracteristicilor echipamentului

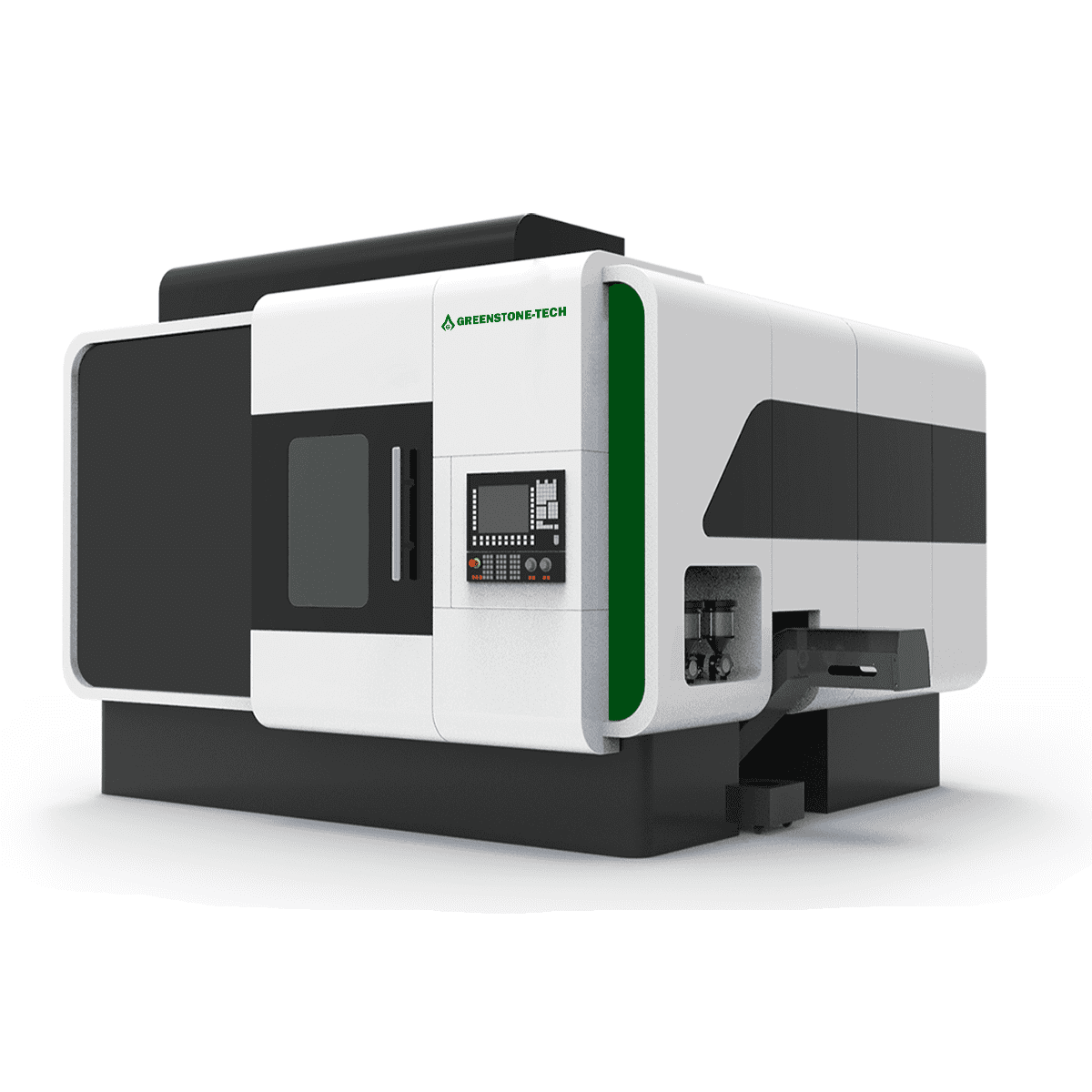

The Greenstone-Tech GAS 600H Additive-Subtractive Hybrid Machining Center integrates five-axis motion cu additive and subtractive coaxial processing technology, enabling in-situ processing without the need for secondary setup. The machine is equipped with a Φ320mm worktable, providing a three-axis travel range of 600/320/320mm. It supports a horizontal worktable load of 220kg și vertical load of 120kg, with a 7.5kW spindle power și un BT40 spindle taper, ideally paired with 1-3kW laser power. The GAS 600H is particularly suited for the forming and enhancement of complex, high-precision products cum ar fi blades și molds, offering eficiență ridicată și exceptional precision for advanced manufacturing applications.

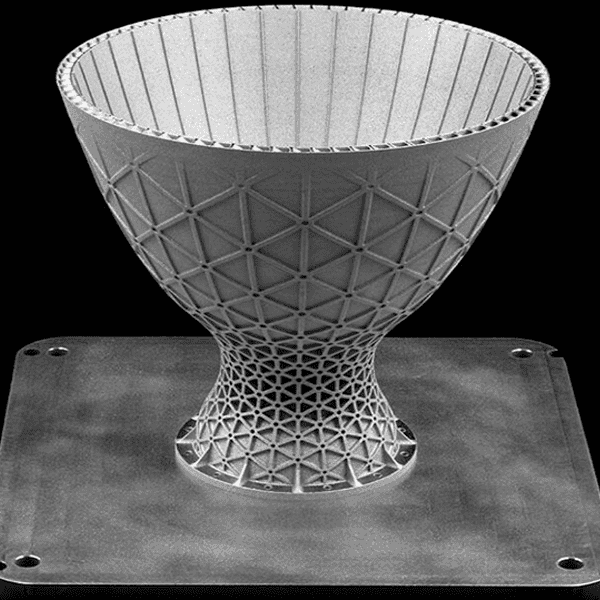

probe prelucrate
The Greenstone-Tech GAS 600H enables automatic switching between additive and subtractive processes, utilizing a shared coordinate system for both, significantly simplifying the programming process. The integrated machining capability eliminates the need for secondary setups, greatly improving eficiența producției și machining accuracy. This makes it particularly ideal for high-complexity, high-precision manufacturing tasks, such as those required in the aerospațial, mold-making, și precision engineering industries. The GAS 600H helps users shorten production cycles și reduce operational complexity, providing a seamless hybrid manufacturing solution that enhances workflow efficiency și part quality.
| Feature | Specificații |
|---|---|
| Motion Mode | 5-Axis Linkage |
| Table Diameter | φ320 mm |
| Axis Travel (X/Y/Z) | 600 / 320 / 320 mm |
| Horizontal Load Capacity | 220 kg |
| Vertical Load Capacity | 120 kg |
| Spindle Power | 7.5 kW |
| Spindle Taper | BT40 |
| Add/Subtractive Method | Coaxial Additive & Subtractive Machining |
| Putere laser recomandată | 1 – 3 kW |
