PVD, CVD, and EB-PVD are advanced thin-film coating technologies used to improve the surface performance of high-value industrial components.

Unlike laser cladding, PTA hardfacing, HVOF, or cold spray, these processes are generally used for much thinner functional coatings, often in the micrometer range.

Their main applications include:

• Hard coatings
• Wear resistance
• Corrosion resistance
• Oxidation resistance
• Thermal barrier coatings
• Surface friction control
• High-temperature protection

Although the three processes are different, they all play an important role in modern industrial surface engineering.

1. What Is PVD?

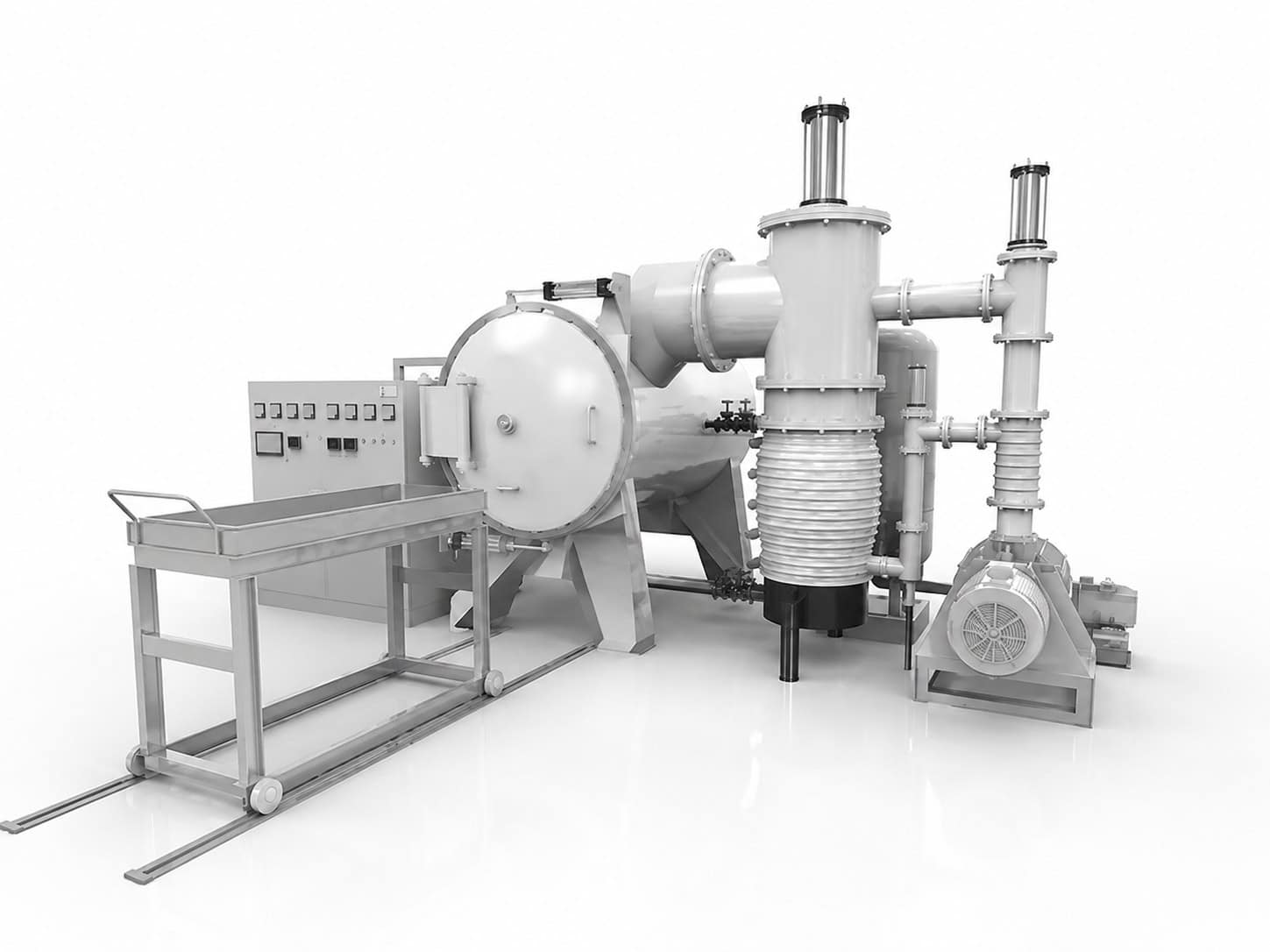

PVD, or Physical Vapor Deposition, is a vacuum coating process in which a solid material is converted into vapor and deposited onto a component surface.

Common PVD methods include:

• Arc evaporation
• Sputtering
• Electron-beam evaporation

The coating material condenses onto the substrate and forms a thin functional film.

Typical PVD coatings include:

• TiN
• CrN
• TiAlN
• DLC-related coatings
• Other metallic or ceramic thin films

PVD is widely used for:

• Cutting tools
• Molds
• Precision components
• Wear-resistant parts
• Decorative and functional surfaces

Its major strengths include high coating hardness, good wear resistance, relatively low coating thickness, and excellent surface quality.

2. What Is CVD?

CVD, or Chemical Vapor Deposition, forms a coating through chemical reactions involving gaseous precursors.

The reactive gases enter a controlled chamber and decompose or react at the substrate surface, creating a solid coating.

Compared with PVD, CVD often operates at higher temperatures.

Typical industrial CVD coatings can provide:

• High hardness
• Excellent wear resistance
• Good coating conformity
• Strong surface coverage

CVD is widely used for:

• Cutting tools
• Wear components
• High-temperature coatings
• Corrosion-resistant surfaces

Its ability to coat complex geometries can be an advantage, but the higher processing temperature may limit its suitability for some heat-sensitive substrates.

3. What Is EB-PVD?

EB-PVD, or Electron Beam Physical Vapor Deposition, is a specialized PVD process.

A high-energy electron beam heats and evaporates coating material inside a vacuum chamber.

The vaporized material then condenses onto the component surface.

EB-PVD is especially important in applications requiring high-performance thin-film structures and thermal barrier coatings.

Typical applications include:

• High-temperature components
• Thermal barrier coating systems
• Energy industry components
• High-performance mechanical parts
• Specialized aerospace applications

One of EB-PVD’s key advantages is its ability to create controlled coating microstructures with good thermal cycling performance.

4. PVD vs CVD vs EB-PVD

All three technologies generally produce much thinner coatings than laser cladding or thermal spray.

5. Thin Films and Surface Performance

The main value of PVD, CVD, and EB-PVD is not dimensional rebuilding.

These processes are designed to modify the surface properties of a component with a thin functional layer.

Typical benefits include:

• Increased surface hardness
• Reduced friction
• Improved wear resistance
• Improved corrosion resistance
• Improved oxidation resistance
• Thermal protection

Because the coating is thin, the original component geometry is largely retained.

This makes these technologies particularly suitable for precision parts and finished components.

6. Hard Coatings

PVD and CVD are widely used to create hard coatings on tools and mechanical components.

These coatings can improve:

• Abrasion resistance
• Adhesive wear resistance
• Tool life
• Surface hardness

Common applications include:

• Cutting tools
• Dies
• Molds
• Precision wear components
• Mechanical contact surfaces

The coating thickness is typically small compared with hardfacing or laser cladding.

7. Thermal Barrier Coatings

EB-PVD is particularly important for thermal barrier coating applications.

Thermal barrier systems are designed to reduce heat transfer into the underlying component.

They are used where surfaces operate at elevated temperature and require additional thermal protection.

Depending on the application, thermal barrier coatings may be used together with bond coats and other engineered surface layers.

This is a very different engineering objective from wear-resistant hardfacing.

8. Wear and Corrosion Resistance

PVD and CVD coatings can improve wear and corrosion performance without adding significant material thickness.

This makes them suitable when:

• Component dimensions must remain nearly unchanged
• Surface hardness is more important than rebuilding
• Thin functional coatings are sufficient
• Precision and surface finish are critical

However, if a component has already suffered substantial material loss, these technologies are generally not suitable for dimensional restoration.

In that case, processes such as laser cladding, cold spray, PTA, or thermal spray may be more appropriate.

9. PVD / CVD / EB-PVD vs Laser Cladding

These technologies operate in very different thickness ranges.

A useful simplified distinction is:

PVD / CVD / EB-PVD → Thin functional surface films

Laser Cladding → Metallurgically bonded material buildup and repair

PVD-related processes are suitable when the objective is:

• Surface hardness
• Friction reduction
• Thin wear protection
• Thermal barrier performance
• Corrosion or oxidation resistance

Laser cladding is more suitable when the objective is:

• Dimensional restoration
• Thick metallic buildup
• Metallurgical repair
• Wear-resistant alloy deposition
• Remanufacturing

They should therefore be considered complementary rather than competing technologies.

10. Selecting the Right Surface Engineering Process

The correct process depends on the engineering objective.

If the component only needs a thin functional surface layer, PVD, CVD, or EB-PVD may be appropriate.

If the component requires substantial material rebuilding, repair, or a thick metallurgically bonded layer, another process should be selected.

A practical distinction is:

Thin film performance → PVD / CVD / EB-PVD

Surface coating with greater thickness → HVOF / Thermal Spray

Solid-state dimensional restoration → Cold Spray

Metallurgical rebuilding → Laser Cladding / DED

This makes PVD, CVD, and EB-PVD important parts of the broader surface engineering technology landscape, even though they serve a very different role from heavy industrial repair processes.

11. PVD, CVD and EB-PVD in Industrial Surface Engineering

At GREENSTONE, laser cladding and Directed Energy Deposition remain core technologies for industrial repair, remanufacturing, surface enhancement, and metal additive manufacturing.

PVD, CVD, and EB-PVD represent complementary technologies for applications where thin functional coatings are more appropriate than material rebuilding.

They are particularly relevant when the requirement involves:

• Hard thin films
• Wear-resistant surfaces
• Corrosion protection
• Oxidation resistance
• Thermal barrier coatings
• Precision components

The most important consideration is not which technology is more advanced.

It is whether the component requires a thin functional film or a thicker structural or repair layer.

Selecting the correct process begins with the required surface function, coating thickness, substrate material, operating environment, and lifecycle objective.

Frequently Asked Questions

What is the main difference between PVD and CVD?

PVD uses physical vaporization and condensation, while CVD forms coatings through chemical reactions of gaseous precursors.

What is EB-PVD mainly used for?

EB-PVD is widely used for specialized high-performance coatings, particularly thermal barrier systems and other vacuum-deposited functional layers.

Are PVD coatings thick?

No. PVD coatings are generally thin films, typically much thinner than thermal spray, cold spray, PTA, or laser cladding deposits.

Can PVD repair worn dimensions?

Generally no. PVD is not intended for significant dimensional restoration.

Is laser cladding better than PVD?

They solve different problems. PVD is ideal for thin functional surface films, while laser cladding is better suited to metallurgical repair, thick buildup, and dimensional restoration.
