Plasma Transferred Arc (PTA) hardfacing is a well-established surface engineering technology used to deposit wear-resistant, corrosion-resistant, and high-temperature-resistant alloy layers onto industrial components.

By using a highly concentrated plasma arc as the heat source and metallic powder as the primary deposition material, PTA creates a metallurgically bonded overlay between the deposited alloy and the substrate.

The process is widely used in industries such as valve manufacturing, oil and gas, mining, steel production, agricultural machinery, and heavy industry, particularly where components require relatively thick protective layers, strong bonding, high deposition efficiency, and economical processing.

Compared with technologies such as laser cladding, HVOF/HVAF, cold spray, and conventional welding-based hardfacing, PTA occupies a distinctive position within industrial surface engineering.

Understanding its working principle, equipment architecture, materials, advantages, and limitations is therefore important when selecting the most appropriate technology for a surface protection or remanufacturing project.

1. What Is PTA Hardfacing?

PTA hardfacing, or Plasma Transferred Arc hardfacing, is a fusion-based surface deposition process that uses a transferred plasma arc to melt metallic feedstock together with a controlled portion of the substrate surface.

The molten materials form a weld pool and subsequently solidify into a dense overlay that is metallurgically bonded to the base material.

Metallic powder is the most common feedstock, although the exact system configuration depends on the application.

PTA combines characteristics of plasma arc technology and conventional hardfacing while providing greater control over the heat source and powder delivery than many traditional overlay welding methods.

Its primary purpose is not necessarily to manufacture an entire component from an expensive alloy.

Instead, PTA allows a functional alloy to be deposited only where enhanced surface properties are required.

This makes it possible to combine:

A relatively economical structural substrate + a high-performance functional surface layer.

Depending on the deposited alloy, PTA overlays can improve:

• Abrasive wear resistance
• Adhesive wear resistance
• Erosion resistance
• Corrosion resistance
• High-temperature wear resistance
• Galling resistance
• Surface hardness
• Component service life

PTA can also be used to rebuild worn areas where dimensional restoration and surface performance are required simultaneously.

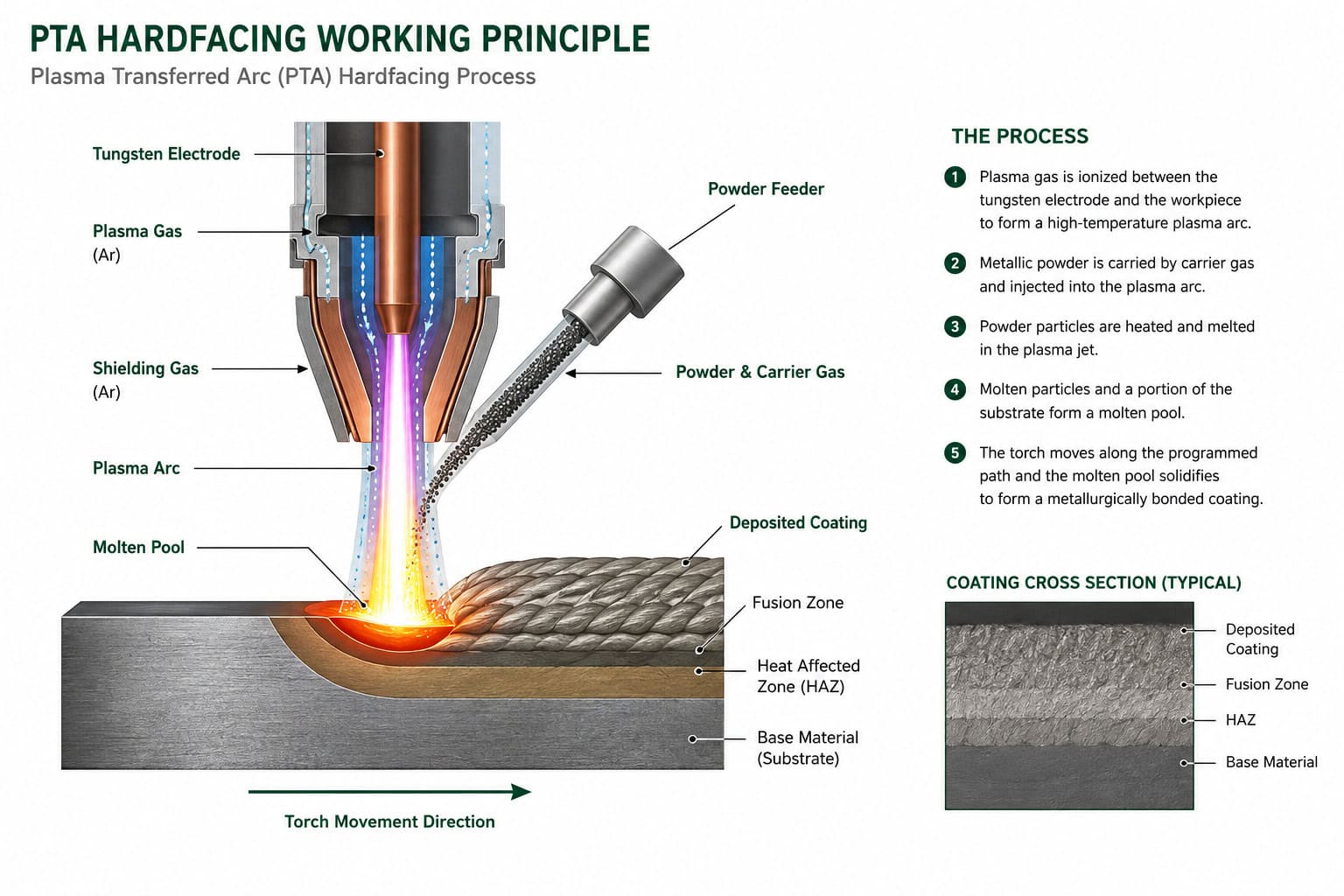

2. PTA Hardfacing Working Principle

The PTA process begins by generating a plasma arc between an electrode inside the torch and the workpiece.

A plasma gas flows through the torch and is ionized by the electrical arc, producing a high-temperature, concentrated plasma jet.

The transferred arc reaches the electrically conductive workpiece and creates a localized molten pool on its surface.

At the same time, metallic powder is accurately delivered from a powder feeder into the processing zone.

The powder particles enter the plasma and molten pool, where they are heated and melted.

As the PTA torch moves relative to the component, the molten pool travels along the programmed deposition path.

Behind the torch, the material rapidly solidifies to create a continuous alloy overlay.

The simplified process sequence is:

Plasma Generation → Substrate Melting → Powder Feeding → Molten Pool Formation → Controlled Motion → Solidification → Metallurgically Bonded Overlay

Because both the deposited material and a portion of the substrate participate in the molten pool, PTA produces metallurgical bonding rather than relying primarily on mechanical adhesion.

However, this also means that substrate dilution and thermal input must be carefully controlled.

Process parameters such as current, voltage, travel speed, powder feed rate, gas flow, torch position, overlap ratio, and cooling conditions can all influence the final coating quality.

3. PTA Hardfacing Equipment Architecture

An industrial PTA hardfacing system is more than a plasma torch.

A complete system typically integrates several functional modules that must operate together with accurate synchronization.

A typical PTA equipment architecture can include:

• Plasma power source
• PTA torch
• Powder feeding system
• Plasma gas supply
• Shielding gas system
• Cooling system
• Motion system
• Workpiece positioning system
• Process control system
• Safety and extraction systems
• Optional preheating or auxiliary systems

The final machine architecture depends heavily on the geometry, size, weight, production volume, and coating requirements of the workpiece.

For this reason, PTA systems may range from relatively simple hardfacing stations to multi-axis automated production cells.

4. Plasma Power Source

The plasma power source provides the electrical energy required to establish and maintain the plasma arc.

Stable electrical output is important because fluctuations in arc behavior can influence:

• Molten pool stability
• Penetration
• Dilution
• Deposition consistency
• Surface appearance
• Coating geometry

The appropriate current and power range depends on the torch, alloy, deposition rate, substrate, coating thickness, and workpiece geometry.

Higher energy input can increase melting and deposition capability but may also increase:

• Heat-affected zone
• Substrate dilution
• Thermal distortion
• Residual stress

Therefore, the objective is not simply to maximize power.

The correct power level must support stable deposition while maintaining the required metallurgical and dimensional properties.

5. PTA Torch

The PTA torch is one of the core components of the hardfacing system.

Its primary functions are to:

• Generate and constrain the plasma arc
• Direct thermal energy toward the workpiece
• Deliver powder into the processing region
• Maintain gas shielding
• Support stable molten pool formation

Torch design directly influences arc concentration, powder utilization, coating geometry, and process stability.

Industrial systems may require different torch configurations according to whether the component involves:

• External cylindrical surfaces
• Internal surfaces
• Flat surfaces
• Valve seats
• Rotational components
• Complex geometries

Cooling is also important because PTA torches operate under significant thermal loads, especially during continuous industrial production.

6. Powder Feeding System

PTA hardfacing commonly uses metallic powder as the deposition material.

A powder feeder delivers the required quantity of powder continuously and consistently to the PTA torch.

Stable powder delivery is critical.

An unstable feed rate can cause variations in:

• Coating thickness
• Bead geometry
• Chemical composition
• Dilution
• Surface quality
• Deposition efficiency

Depending on the application, powder feeding systems may use one or multiple powder containers.

Multi-hopper configurations can be useful when different materials need to be processed or when controlled material combinations are required.

Important powder-related parameters include:

• Powder particle size distribution
• Powder morphology
• Flowability
• Feed rate
• Chemical composition
• Carrier gas flow
• Powder feeding stability

Powder characteristics should therefore be considered part of the complete PTA process rather than simply as a consumable.

7. Motion and Positioning System

Stable relative movement between the PTA torch and workpiece is essential for producing a consistent overlay.

The motion architecture depends on component geometry.

Typical configurations can include:

• Linear slides
• Rotary positioners
• CNC systems
• Multi-axis platforms
• Gantry systems
• Robotic systems
• Dedicated automated hardfacing stations

For a cylindrical component, for example, the workpiece may rotate while the torch moves axially.

For a valve or complex surface, coordinated multi-axis movement may be required.

Large industrial components may require a completely different machine architecture from small precision parts.

Important motion parameters include:

• Travel speed
• Rotational speed
• Torch angle
• Stand-off distance
• Track spacing
• Overlap ratio
• Acceleration and deceleration
• Positioning repeatability

Automation can significantly improve process repeatability, particularly in serial production.

8. Plasma, Shielding and Carrier Gases

Gas management is another essential part of PTA processing.

Different gas streams may perform different functions within the system.

Plasma Gas

Plasma gas is ionized to generate the plasma jet.

Argon is commonly used, while specific process requirements may involve other gas compositions.

Shielding Gas

Shielding gas protects the molten pool and heated material from undesirable interaction with the surrounding atmosphere.

This is particularly important for alloys sensitive to oxidation.

Carrier Gas

In powder-fed configurations, carrier gas transports metallic powder from the feeder toward the torch and deposition zone.

Gas type and flow rate can influence:

• Arc characteristics
• Powder transport
• Molten pool behavior
• Oxidation
• Deposition stability

Gas parameters therefore need to be coordinated with electrical and powder-feeding parameters.

9. PTA Hardfacing Materials

One of the strengths of PTA is its compatibility with a broad range of metallic hardfacing materials.

The appropriate alloy depends on the failure mechanism and service environment.

Common material categories include:

Nickel-Based Alloys

Nickel-based materials can provide combinations of corrosion resistance, wear resistance, and elevated-temperature performance.

They are frequently considered for demanding industrial environments.

Cobalt-Based Alloys

Cobalt-based hardfacing alloys are known for their performance under combinations of wear, corrosion, galling, and elevated temperatures.

They are widely associated with valve and severe-service applications.

Iron-Based Alloys

Iron-based hardfacing powders can provide an economical solution for many wear applications.

Their lower material cost can be attractive when large coating areas or substantial deposition volumes are involved.

Carbide-Reinforced Materials

Metal matrix systems containing hard carbide phases can be used where severe abrasive wear resistance is required.

The correct carbide content, matrix composition, particle characteristics, and processing parameters are important because extremely hard materials can introduce additional challenges involving cracking and machinability.

Material selection should therefore begin with the actual failure mechanism rather than simply choosing the alloy with the highest nominal hardness.

10. Typical PTA Coating Thickness

PTA is particularly suitable for applications requiring relatively substantial overlay thickness.

A typical PTA hardfacing layer may range approximately from:

1 mm to several millimeters per layer

depending on:

• Alloy
• PTA torch
• Current and power
• Powder feed rate
• Travel speed
• Workpiece geometry
• Substrate
• Dilution requirements
• Number of layers

Multiple layers can be deposited when greater buildup is required.

However, increasing coating thickness is not simply a matter of depositing more material.

As the total buildup increases, engineers must consider:

• Heat accumulation
• Residual stress
• Cracking risk
• Interlayer quality
• Dimensional control
• Subsequent machining allowance

For repair applications, the required final dimension should therefore be considered together with the deposition and post-machining strategy.

11. Typical Industrial Applications of PTA Hardfacing

PTA is particularly valuable in industries where components experience severe wear and where downtime or frequent component replacement creates significant operating costs.

11.1 Valve Industry

Valves are one of the most established application areas for PTA hardfacing.

Potential hardfacing regions include:

• Valve seats
• Valve discs
• Sealing surfaces
• Stems
• Other wear-critical areas

These components may operate under combinations of pressure, temperature, corrosion, erosion, and repeated mechanical contact.

PTA allows specialized alloys to be applied selectively to the critical surface rather than manufacturing the entire valve component from expensive wear-resistant material.

11.2 Oil and Gas

Oil and gas equipment can experience severe combinations of:

• Abrasion
• Erosion
• Corrosion
• Pressure
• Sliding wear
• Particle-containing fluids

PTA can therefore be considered for selected:

• Valve components
• Drilling and production components
• Pump components
• Wear surfaces
• Flow-control components
• Other severe-service parts

The actual coating system must be selected according to operating temperature, pressure, medium, substrate, and wear mechanism.

11.3 Mining Industry

Mining equipment frequently operates in highly abrasive environments involving rock, mineral particles, impact, and heavy mechanical loading.

Typical candidate components may include:

• Wear parts
• Crushing-related components
• Material-handling components
• Excavation components
• Heavy-duty mechanical parts

For large and robust components that can tolerate the thermal input, PTA can provide thick, metallurgically bonded wear-resistant layers at attractive deposition rates.

11.4 Steel Industry

Steel production equipment operates continuously under combinations of high temperature, mechanical loading, scale, friction, and wear.

Depending on the component, PTA hardfacing may be used for:

• Roll-related components
• Guide components
• Wear surfaces
• Material-handling components
• Production-line mechanical parts

Because steel industry components can be relatively large, the combination of deposition efficiency and thick hardfacing capability can make PTA economically attractive.

11.5 Agricultural Machinery

Agricultural components frequently encounter:

• Soil abrasion
• Sand
• Stone
• Impact
• Sliding wear

Examples of candidate components include:

• Tillage tools
• Cutting components
• Wear plates
• Soil-engaging parts
• Other agricultural wear components

Cost is particularly important in this industry.

For certain high-volume or heavy-wear applications, PTA combined with appropriate iron-based or carbide-reinforced materials can provide a useful balance between wear performance and processing cost.

11.6 Heavy Industry

PTA can also be used throughout general heavy industry for components where localized surfaces require properties substantially different from the bulk material.

Potential applications include:

• Large shafts
• Wear plates
• Rollers
• Mechanical transmission components
• Industrial tooling
• Heavy machinery components
• Material-processing equipment

In these applications, PTA is particularly relevant when the component is sufficiently robust to tolerate the thermal cycle and the required overlay is relatively thick.

12. Advantages of PTA Hardfacing

PTA remains widely used because it combines several important technical and economic advantages.

Metallurgical Bonding

Because the deposited alloy and substrate participate in the molten pool, PTA produces a strong metallurgical bond.

Relatively Thick Deposits

PTA can efficiently produce millimeter-scale hardfacing layers and multi-layer buildup.

High Deposition Efficiency

For heavy hardfacing applications, PTA can provide attractive deposition productivity.

Wide Material Selection

Nickel-based, cobalt-based, iron-based, and carbide-containing materials can be processed depending on the system and application.

Good Automation Potential

PTA can be integrated with CNC platforms, positioners, linear systems, and industrial robots.

Economical for Heavy Hardfacing

When a large amount of hardfacing material must be deposited and thermal input is acceptable, PTA can offer favorable process economics.

13. Limitations of PTA Hardfacing

PTA is not the ideal solution for every component.

Its limitations should be evaluated as carefully as its advantages.

Higher Heat Input Than Laser Cladding

PTA generally introduces more thermal energy into the substrate than laser cladding.

This can result in:

• Larger heat-affected zones
• Greater thermal distortion
• Higher residual stress
• Greater sensitivity in thin or precision components

Higher Dilution

Because more substrate material may participate in the molten pool, PTA typically produces greater dilution than a well-controlled laser cladding process.

This can influence the final chemistry and properties of the deposited layer.

Less Suitable for Very Thin or Heat-Sensitive Components

Thin-walled or dimensionally sensitive components may require a process with more localized heat input.

Precision Limitations

For highly localized deposition, small features, complex repair paths, or applications requiring tight control over the deposited geometry, laser-based deposition may offer greater flexibility.

Post-Machining May Be Required

PTA hardfacing can produce a relatively substantial overlay, and final machining or grinding is frequently necessary to achieve the required dimensions and surface finish.

14. PTA Hardfacing vs Laser Cladding

PTA and laser cladding are sometimes treated as competing technologies, but this comparison can be misleading.

Both processes produce metallurgically bonded overlays, yet they occupy different processing windows.

The decision should therefore not be based on whether PTA or laser cladding is universally “better.”

For a large mining component requiring economical, thick wear-resistant buildup, PTA may be the more rational solution.

For a precision component requiring low dilution, controlled heat input, localized repair, or complex deposition geometry, laser cladding may provide significant advantages.

In some manufacturing environments, both technologies can coexist.

15. PTA vs HVOF/HVAF and Cold Spray

PTA also differs fundamentally from HVOF/HVAF and cold spray.

PTA intentionally creates a molten pool and metallurgical fusion with the substrate.

HVOF/HVAF accelerates heated particles toward the substrate to form a dense thermal-sprayed coating without intentionally creating the same substrate fusion zone.

Cold spray relies primarily on extremely high particle velocity and solid-state deformation, resulting in very low thermal influence.

This means process selection should depend on the engineering objective.

If thick metallurgical hardfacing is required and thermal input is acceptable, PTA can be highly effective.

If a dense, relatively thin carbide coating with low substrate thermal influence is required, HVOF/HVAF may be preferable.

If the component is highly heat-sensitive and the material is suitable for solid-state deposition, cold spray may provide a better solution.

16. How to Determine Whether PTA Is the Right Process

Before selecting PTA hardfacing, engineers should evaluate several questions:

What is the substrate material?

The substrate must be compatible with the thermal cycle and selected hardfacing alloy.

What is the primary failure mechanism?

Abrasion, corrosion, erosion, impact, galling, and elevated-temperature wear may require completely different materials.

How thick must the coating be?

PTA becomes increasingly attractive where substantial hardfacing thickness is required.

How much thermal input can the component tolerate?

This can determine whether PTA, laser cladding, thermal spray, or cold spray is more appropriate.

What level of dilution is acceptable?

If extremely low dilution is critical, another deposition technology may provide advantages.

How large is the component?

Component dimensions and weight determine the appropriate motion system and equipment architecture.

What production rate is required?

Serial manufacturing, repair work, and one-off large components may require very different automation strategies.

What is the total processing cost?

Material consumption, deposition rate, gas, energy, machining, automation, labor, and component service life should all be included.

17. Customized PTA Hardfacing and Surface Engineering Solutions

Modern surface engineering should not begin by forcing every industrial component into a predetermined process.

The correct approach is to first understand the workpiece, substrate material, failure mechanism, coating requirement, production volume, thermal limitations, geometry, and economic objective.

PTA hardfacing can provide significant advantages when relatively thick, metallurgically bonded, wear-resistant overlays must be deposited efficiently.

However, other applications may be better suited to laser cladding, HVOF/HVAF, cold spray, laser hardening, or another surface engineering technology.

At GREENSTONE, laser cladding and Directed Energy Deposition remain core technologies for advanced surface engineering, repair, remanufacturing, and metal additive manufacturing.

At the same time, GREENSTONE can integrate PTA hardfacing into customized surface engineering solutions where the process offers technical or economic advantages.

Rather than selecting a technology first and adapting the component around it, the objective is to determine the most appropriate material + process + equipment + automation architecture for the actual industrial application.

That approach allows surface engineering technology to be selected according to the problem it needs to solve.
