Modern industrial components are frequently required to operate under severe conditions involving wear, corrosion, oxidation, high temperatures, impact, friction, and cyclic mechanical loads. In many cases, manufacturing the entire component from an expensive high-performance alloy is neither technically necessary nor economically efficient.

Surface engineering provides another approach.

Instead of changing the complete bulk material of a component, surface engineering technologies modify, strengthen, rebuild, or protect the areas where performance is most critical. Depending on the application, this can involve depositing a metallic or ceramic coating, creating a metallurgically bonded layer, restoring lost dimensions, or modifying the properties of the original surface without adding material.

Technologies such as laser cladding, plasma transferred arc (PTA) hardfacing, HVOF/HVAF spraying, cold spray, conventional thermal spray, arc/wire spray, PVD and EB-PVD, and laser hardening therefore play different but complementary roles in modern manufacturing, maintenance, repair, and industrial remanufacturing.

There is no single process that is ideal for every component. Selecting the right surface engineering technology requires understanding the substrate material, required surface properties, coating thickness, allowable heat input, bonding mechanism, geometry, production efficiency, and total processing cost.

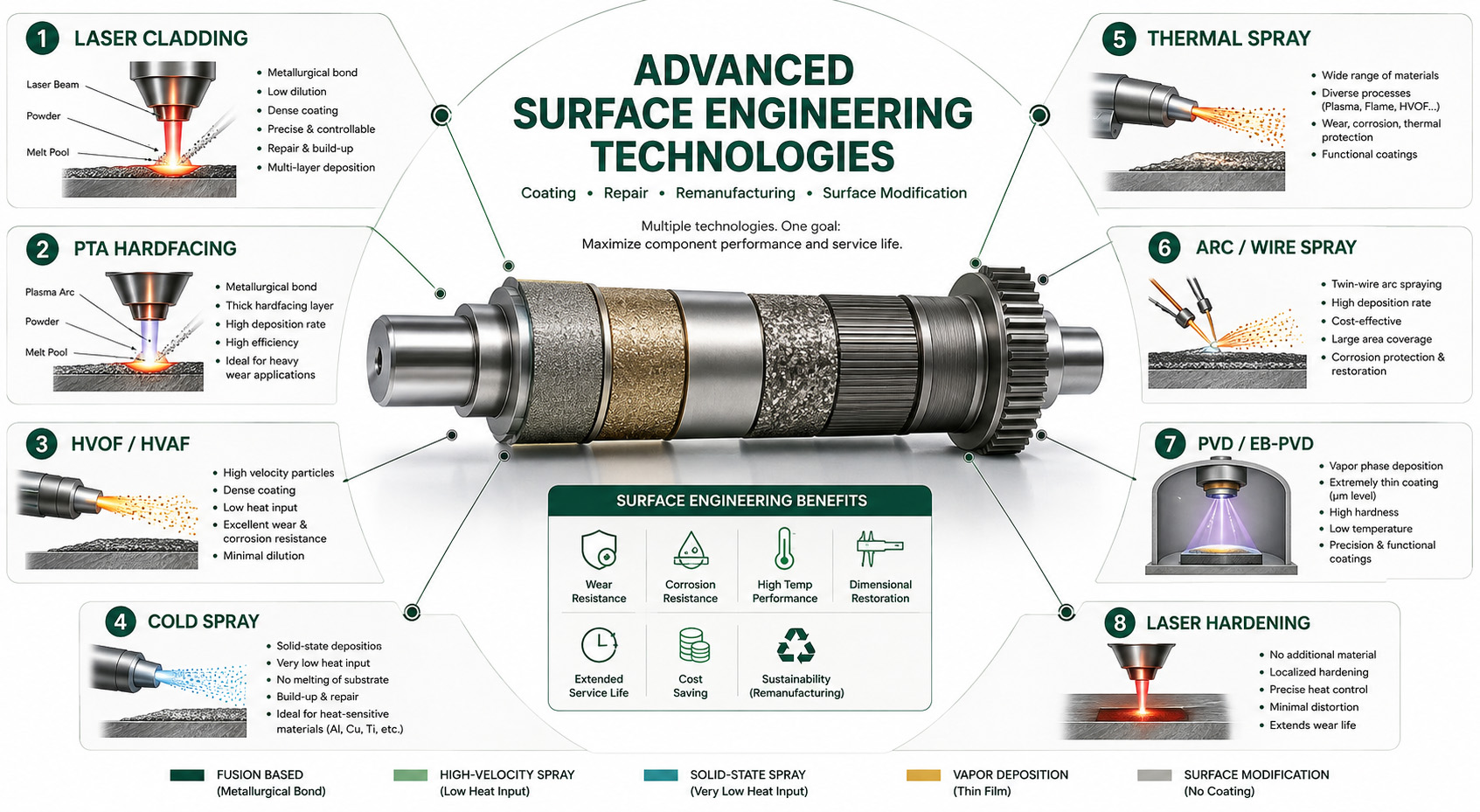

This guide provides an overview of the major industrial surface engineering technologies and explains where each process is most suitable.

1. What Is Surface Engineering?

Surface engineering is the controlled modification of a component’s surface or near-surface region to improve its functional performance without necessarily changing the properties of the entire component.

The concept is especially important because many industrial failures begin at the surface.

Components used in mining, oil and gas, power generation, marine engineering, transportation, molds and tooling, machinery, and heavy industry can experience several forms of surface degradation simultaneously.

Typical problems include:

• Abrasive and erosive wear
• Adhesive wear and friction
• Corrosion and chemical attack
• Oxidation at elevated temperatures
• Thermal fatigue
• Cavitation
• Impact damage
• Dimensional loss after long-term service
• Localized cracking or surface deterioration

Surface engineering allows engineers to design the surface according to the operating environment while retaining a lower-cost or mechanically suitable base material underneath.

For example, a large steel shaft does not necessarily need to be manufactured entirely from a highly wear-resistant alloy. A functional alloy layer can instead be applied only to the working surface.

Similarly, an expensive component that has lost material during service may not need to be discarded. Depending on its condition, material can be deposited onto the damaged region and subsequently machined back to the required dimensions.

This creates three major functions for surface engineering:

Surface Protection

A coating or modified layer can improve resistance to wear, corrosion, oxidation, erosion, heat, or other environmental damage.

Functional Surface Enhancement

A component can be given surface properties that differ substantially from its bulk material, including increased hardness, reduced friction, thermal protection, or specialized physical properties.

Repair and Remanufacturing

Material lost during service can be rebuilt, allowing valuable industrial components to be restored rather than completely replaced.

The appropriate technology depends heavily on which of these objectives is most important.

2. Major Surface Engineering Technologies

2.1 Laser Cladding

Laser cladding uses a high-energy laser beam to create a controlled molten pool on the substrate while metallic powder or wire is introduced into the processing zone.

The deposited material and a very thin region of the substrate melt together and rapidly solidify, producing a dense coating with a metallurgical bond to the base material.

This bonding mechanism is one of the major differences between laser cladding and many thermal spray processes.

Modern laser cladding systems can process a wide range of metallic materials, including nickel-based, cobalt-based, iron-based, stainless steel, and other engineered alloy systems.

Key Advantages of Laser Cladding

Laser cladding offers:

• Strong metallurgical bonding
• Low and controllable dilution
• Relatively low heat input compared with conventional welding-based deposition
• Dense coatings
• Precise deposition control
• Localized processing
• Good automation potential
• Capability for dimensional restoration
• Multi-layer deposition
• Compatibility with complex repair and remanufacturing operations

Because the heat source is highly controllable, laser cladding is particularly useful when both coating quality and thermal control are important.

The technology can also extend beyond conventional surface coating.

With multi-layer deposition and coordinated motion systems, the same fundamental laser material deposition principle can be used for Directed Energy Deposition (DED) additive manufacturing, feature addition, component repair, and near-net-shape manufacturing.

Typical Applications

Laser cladding is widely applicable to components such as:

• Shafts
• Hydraulic rods
• Rollers
• Valves
• Pump components
• Oil and gas components
• Mining machinery
• Agricultural tools
• Mold surfaces
• Screw components
• Railway components
• Large industrial parts

It is particularly attractive when a component requires a high-quality metallurgically bonded layer or when the objective includes both surface enhancement and dimensional restoration.

2.2 PTA Hardfacing

Plasma Transferred Arc (PTA) hardfacing uses a transferred plasma arc to melt metallic powder together with the surface of the substrate.

Like laser cladding, PTA creates a metallurgical bond between the deposited material and the base component.

PTA has been used for decades in industrial hardfacing applications and remains an effective solution where relatively thick wear-resistant deposits and high deposition productivity are required.

Key Characteristics of PTA

PTA generally provides:

• Metallurgical bonding
• High deposition rates
• Thick hardfacing layers
• Good processing efficiency
• Broad compatibility with hardfacing alloys
• Competitive equipment and processing costs

Compared with laser cladding, however, PTA normally introduces more heat into the workpiece and tends to produce a larger heat-affected zone and higher substrate dilution.

This does not make PTA inferior; it makes it appropriate for a different processing window.

For large, robust components where heat input is less critical and thick hardfacing layers are required economically, PTA can be an excellent choice.

Typical Applications

PTA is commonly considered for:

• Valve components
• Mining equipment
• Wear plates
• Agricultural components
• Oil and gas components
• Heavy machinery
• Industrial tooling
• High-wear mechanical parts

For applications dominated by heavy wear and requiring substantial deposition thickness, PTA can offer a favorable balance between coating performance and production cost.

2.3 HVOF and HVAF Coatings

High Velocity Oxy-Fuel (HVOF) and High Velocity Air-Fuel (HVAF) belong to the thermal spray family.

Instead of intentionally melting the substrate, these technologies accelerate coating particles toward the component surface at very high velocities.

The particles impact the substrate and form a dense coating through successive high-energy impacts.

Because the substrate itself is not melted to create a fusion zone, HVOF and HVAF can achieve much lower substrate heat input than fusion-based deposition technologies.

Key Advantages

Depending on the material and process configuration, HVOF/HVAF can provide:

• Dense coatings
• High coating hardness
• Excellent wear resistance
• Good corrosion resistance
• Relatively low substrate heat input
• High processing efficiency over large areas
• Minimal substrate dilution

HVOF is particularly well known for applying carbide-based coatings such as tungsten carbide and chromium carbide systems.

HVAF uses a different combustion environment and can provide advantages for certain materials where lower particle temperatures and oxidation control are desirable.

Typical Applications

Common applications include:

• Hydraulic components
• Pump components
• Industrial rollers
• Oil and gas equipment
• Aerospace components
• Paper and printing rolls
• Wear-resistant surfaces
• Corrosion-resistant surfaces

HVOF/HVAF becomes particularly attractive when the goal is a thin, dense, wear-resistant coating without melting the substrate.

2.4 Cold Spray

Cold spray, especially high-pressure cold spray, represents a fundamentally different approach to material deposition.

Rather than relying primarily on thermal energy to melt feedstock, cold spray accelerates solid powder particles to extremely high velocities through a high-speed gas stream.

When these particles impact the substrate above a critical velocity, severe plastic deformation enables them to bond with the surface.

The particles generally remain in the solid state during deposition.

This produces one of the lowest thermal loads among industrial coating and repair technologies.

Why Cold Spray Is Different

Because extensive melting is avoided, cold spray can reduce problems associated with:

• Oxidation
• Thermal distortion
• Phase transformation
• Large heat-affected zones
• Thermal degradation of sensitive substrates

Cold spray is therefore particularly interesting for temperature-sensitive materials and for applications where the original material properties should be preserved as much as possible.

Suitable Materials

Cold spray is particularly effective for many ductile metallic materials, including:

• Aluminum
• Copper
• Nickel
• Titanium
• Zinc
• Selected alloys and composite feedstocks

Material compatibility depends strongly on particle properties, substrate characteristics, gas conditions, and impact velocity.

Typical Applications

Cold spray can be used for:

• Dimensional restoration
• Corrosion protection
• Conductive coatings
• Aluminum and magnesium component repair
• Copper deposition
• Localized metallic buildup
• Repair of heat-sensitive components

For applications where minimal thermal influence is the dominant requirement, cold spray may provide capabilities that fusion-based processes cannot easily achieve.

2.5 Conventional Thermal Spray

Thermal spray is a broad family of processes in which a feedstock material is heated and accelerated toward a prepared substrate.

Depending on the process, the feedstock may be powder, wire, or another suitable form.

Common thermal spray technologies include:

• Plasma spraying
• Flame spraying
• HVOF
• HVAF
• Arc spraying

These processes cover an exceptionally wide range of coating materials and applications.

Thermal spray can deposit metals, alloys, ceramics, carbides, and specialized functional materials.

Unlike laser cladding or PTA, conventional thermal spray processes generally do not intentionally melt the substrate to establish a metallurgical fusion zone.

Instead, coating performance depends heavily on particle impact, surface preparation, mechanical interlocking, localized bonding phenomena, and the specific coating system.

Typical Applications

Thermal spray technologies are widely used for:

• Wear protection
• Corrosion protection
• Thermal barriers
• Electrical insulation
• Dimensional restoration
• Friction control
• High-temperature protection
• Functional coatings

Its versatility makes thermal spray one of the largest and most diverse categories within surface engineering.

2.6 Arc and Wire Spray

Arc spray, also known as twin-wire arc spray, uses two electrically conductive wires as feedstock.

An electric arc melts the wire tips, while compressed gas atomizes the molten material and propels it toward the prepared substrate.

Because wire feedstock can be continuously supplied, arc spraying can achieve high deposition productivity and cover large surface areas economically.

Main Advantages

Arc/wire spray can offer:

• High deposition rates
• Relatively low operating cost
• Efficient coverage of large surfaces
• Simple continuous wire feeding
• Good suitability for corrosion-protection coatings

Typical materials include zinc, aluminum, steel, and various metallic alloys.

Typical Applications

Arc spraying is frequently used for:

• Steel structures
• Bridges
• Marine structures
• Tanks
• Large industrial components
• Corrosion protection
• Dimensional restoration

It is especially attractive when large-area coverage and cost efficiency are more important than achieving a metallurgically fused coating.

2.7 PVD and EB-PVD

Physical Vapor Deposition (PVD) represents another class of surface engineering technologies.

Rather than depositing relatively thick layers of molten or accelerated particles, PVD processes generate material in a vapor phase and condense it onto the substrate to form a thin functional coating.

PVD coatings are commonly used when extremely thin, hard, wear-resistant, decorative, optical, or otherwise functional surfaces are required.

Typical coatings can include nitrides and other engineered compounds.

EB-PVD

Electron Beam Physical Vapor Deposition (EB-PVD) uses a high-energy electron beam to evaporate coating material in a vacuum environment.

The vaporized material subsequently condenses onto the component.

EB-PVD is particularly important in specialized high-performance applications where carefully controlled thin-film structures are required.

Typical Applications

PVD and EB-PVD technologies can be used for:

• Cutting tools
• Precision tooling
• Wear-resistant surfaces
• High-temperature components
• Thermal barrier coating systems
• Specialized aerospace and energy applications
• Functional thin films

These processes occupy a very different technological space from laser cladding or PTA.

Where laser cladding may deposit layers measured in fractions of a millimeter to several millimeters or more, PVD coatings are typically measured in micrometers.

Therefore, the correct process depends not simply on the required material but also on the functional scale of the surface layer.

2.8 Laser Hardening

Not every surface engineering process requires adding another material.

Laser hardening modifies the properties of the existing substrate.

A laser rapidly heats a localized region of a suitable material above its transformation temperature. Heat then dissipates rapidly into the surrounding bulk material, producing a self-quenching effect and creating a hardened surface layer.

No coating material is necessarily required.

Key Advantages

Laser hardening can provide:

• Localized surface treatment
• Precise heat control
• Limited distortion
• Selective treatment of wear areas
• No additional coating material
• High automation potential

It is particularly useful for steels and other materials capable of transformation hardening.

Typical Applications

Laser hardening can be applied to:

• Gears
• Guideways
• Shafts
• Bearing surfaces
• Mold surfaces
• Machine components
• Localized wear zones

When the existing material is suitable and the objective is simply to increase surface hardness, laser hardening can eliminate the need to deposit an additional coating altogether.

3. Surface Engineering Technology Comparison

No comparison table can represent every alloy, machine configuration, or operating parameter. However, the following provides a useful general framework for preliminary process selection.

*Values are indicative only. Actual achievable thickness depends on material, process parameters, equipment configuration, substrate geometry, coating requirements, and whether multiple deposition passes are used.

4. How to Select the Right Surface Engineering Process

Selecting a process simply because it produces a “hard coating” can lead to poor technical or economic results.

The correct decision should begin with the component itself.

4.1 What Is the Substrate Material?

The first question is what the component is made from.

Steel, stainless steel, cast iron, nickel alloys, titanium alloys, aluminum alloys, copper alloys, and other engineering materials react differently to heat and deposition.

The compatibility between the substrate and deposited material also affects cracking risk, bonding quality, residual stress, and process stability.

4.2 What Surface Property Is Required?

Different failures require different solutions.

For example:

Severe abrasive wear:
Laser cladding, PTA, HVOF/HVAF, and selected thermal spray processes may all be candidates.

Corrosion:
Laser cladding, thermal spray, HVOF/HVAF, arc spray, and other protective coating technologies can be considered depending on the environment.

Thermal protection:
Specialized thermal spray or vapor deposition systems may be more appropriate.

Surface hardness without dimensional buildup:
Laser hardening may be preferable.

Dimensional restoration:
Laser cladding, cold spray, PTA, or selected thermal spray processes may be evaluated depending on material and required buildup.

The failure mechanism should therefore be identified before selecting the equipment.

4.3 How Thick Must the Layer Be?

Required thickness can immediately eliminate some processes.

PVD and EB-PVD are designed primarily for relatively thin functional coatings.

HVOF/HVAF is highly effective for many thin-to-medium-thickness wear-resistant coatings.

Laser cladding can produce substantially thicker metallurgically bonded layers and can perform multi-layer buildup.

PTA is particularly useful when relatively thick hardfacing deposits are required.

Cold spray can also achieve significant buildup under suitable material and process conditions.

The required thickness should therefore be considered together with bonding strength, thermal effects, and material properties.

4.4 How Much Heat Can the Component Tolerate?

Thermal sensitivity is often one of the most important selection criteria.

For a large, thick steel component, moderate thermal input may be acceptable.

For a thin-walled, precision-machined, heat-treated, aluminum, magnesium, or otherwise temperature-sensitive component, thermal distortion or metallurgical changes may be unacceptable.

A simplified thermal ranking is therefore useful:

Very low thermal influence: Cold Spray
Low: HVOF/HVAF, Arc Spray and many Thermal Spray processes
Localized and controlled: Laser Cladding / Laser Hardening
Higher thermal input: PTA and conventional welding-based hardfacing

This ranking is only general. Actual thermal influence depends heavily on equipment power, processing speed, component geometry, substrate material, cooling strategy, and deposition parameters.

4.5 Is Metallurgical Bonding Necessary?

For some critical repair and remanufacturing applications, a metallurgically bonded layer is highly desirable.

Laser cladding and PTA create fusion between the deposited alloy and the substrate.

Thermal spray processes use fundamentally different bonding mechanisms and do not intentionally create the same fusion zone.

This distinction can become important when components experience severe mechanical loading, repeated impact, thermal cycling, or subsequent machining.

However, stronger fusion is not automatically better for every application.

If the substrate cannot tolerate melting or significant heat input, a non-fusion process may actually provide the superior engineering solution.

4.6 What Is the Required Production Efficiency?

Processing speed and coating area also matter.

A precision laser cladding process may be technically excellent but unnecessary for a very large structure requiring inexpensive corrosion protection.

In that case, arc spray may offer a much more economical solution.

Similarly, HVOF/HVAF can be highly productive for large coating areas requiring high-quality wear-resistant layers.

PTA can offer efficient heavy hardfacing.

Laser cladding becomes particularly valuable when precision, metallurgical bonding, automation, low dilution, controlled heat input, and repair capability justify the process.

The best technology is therefore the one that achieves the required engineering result at an acceptable total manufacturing or lifecycle cost, rather than simply the process with the highest technical specifications.

5. Laser Cladding vs PTA vs HVOF vs Cold Spray: Which Is Better?

This is one of the most common questions in industrial surface engineering.

The answer is that none of them is universally better.

They solve different engineering problems.

If the application requires precise deposition, low dilution, controlled heat input, metallurgical bonding, and the ability to rebuild damaged geometry, laser cladding is often a strong candidate.

If thick, economical metallurgical hardfacing is required and the component can tolerate greater heat input, PTA may be more appropriate.

If the requirement is a dense, highly wear-resistant carbide coating with low substrate heat input, HVOF or HVAF may offer significant advantages.

If the substrate is extremely sensitive to temperature or solid-state deposition is required, cold spray deserves serious consideration.

For very large-area corrosion protection, arc spray or other thermal spray technologies may provide better economics.

For extremely thin functional coatings, PVD or EB-PVD operates in an entirely different thickness and performance range.

And when no additional material is required at all, laser hardening may be the simplest solution.

The process should follow the engineering requirement—not the other way around.

6. Hybrid Surface Engineering Solutions

Industrial components increasingly operate under complex conditions that cannot always be addressed by a single surface treatment.

A component may simultaneously require:

• Dimensional restoration
• Wear resistance
• Corrosion protection
• Thermal protection
• Localized hardness
• Minimal distortion
• Specific surface finish

This creates opportunities for hybrid surface engineering.

For example, a damaged component could first be dimensionally rebuilt using laser cladding and then receive additional finishing or surface treatment according to its final service conditions.

Different regions of a large component may also require different processes.

A heavily worn functional area may justify metallurgical restoration, while a large non-critical surface may only require corrosion protection.

The engineering objective should therefore be to build the appropriate process chain, rather than force every application into one coating technology.

7. From Single Technology to Application-Specific Surface Engineering

At GREENSTONE, laser cladding and Directed Energy Deposition remain central technologies for industrial surface enhancement, repair, remanufacturing, and metal additive manufacturing.

However, industrial surface engineering extends far beyond a single process.

PTA hardfacing, HVOF/HVAF, thermal spray, high-pressure cold spray, laser hardening, vapor deposition, and other advanced surface technologies each have their own advantages and application boundaries.

For this reason, the starting point of a surface engineering project should not simply be:

“Which machine should be used?”

The more important questions are:

What is the component?
How has it failed?
What surface properties are required?
How much thermal influence is acceptable?
How thick must the functional layer be?
Does the application require coating, repair, dimensional restoration, or complete remanufacturing?

Only after these conditions are understood should the process and equipment configuration be determined.

For applications where laser cladding provides the best technical solution, GREENSTONE develops laser cladding and DED systems around the actual workpiece, deposition material, geometry, production requirements, and process objectives.

For projects involving other surface engineering technologies, different processes can also be evaluated as part of a broader application-specific technical solution.

The objective is not to apply one technology to every component.

It is to select the right surface engineering process for the right industrial problem.

Frequently Asked Questions About Surface Engineering Technologies

What is the difference between laser cladding and thermal spray?

Laser cladding creates a controlled molten pool and forms a metallurgical bond between the deposited material and substrate. Thermal spray generally deposits accelerated particles onto a prepared surface without intentionally melting the substrate. Laser cladding is therefore particularly suitable for metallurgical repair and dimensional rebuilding, while thermal spray offers advantages for many low-heat-input coating applications.

Is laser cladding better than PTA?

Not in every application. Laser cladding generally offers lower dilution, more localized heat input, and greater deposition precision. PTA can provide high deposition efficiency and economical thick hardfacing. The correct choice depends on the workpiece and performance requirements.

What is the main advantage of cold spray?

Cold spray deposits particles primarily in the solid state, resulting in very low thermal influence. This makes it particularly valuable for heat-sensitive substrates and materials that can suffer undesirable changes during conventional melting processes.

What is the difference between HVOF and laser cladding?

HVOF is a high-velocity thermal spray process that can produce dense wear-resistant coatings without intentionally melting the substrate. Laser cladding melts the feedstock together with a thin substrate layer to create metallurgical bonding. HVOF is highly effective for many carbide and wear-resistant coatings, while laser cladding is particularly valuable for metallurgical repair, thicker buildup, and dimensional restoration.

Can surface engineering be used to repair worn industrial components?

Yes. Laser cladding, PTA, cold spray, and selected thermal spray technologies can all be used for repair or dimensional restoration under appropriate conditions. The correct process depends on the substrate, amount of material loss, required properties, component geometry, and allowable heat input.

Which surface engineering technology has the lowest heat input?

Cold spray is among the lowest-thermal-input deposition technologies because particles generally remain solid during deposition. HVOF/HVAF and other thermal spray processes can also minimize substrate heating compared with fusion-based technologies.

How do I choose between laser cladding, HVOF, cold spray, and PTA?

Start with the substrate material, failure mechanism, required coating thickness, thermal sensitivity, required bonding mechanism, component geometry, production rate, and lifecycle cost. Process selection should be based on the engineering requirements of the component rather than on a single coating technology.
