1. Introduction

1.1 What Is Metal Powder Manufacturing?

Metal powder manufacturing is the industrial process of producing finely divided metallic particles with controlled particle size, morphology, chemical composition, and microstructure. These powders serve as the primary feedstock for powder metallurgy (PM), additive manufacturing (AM), metal injection molding (MIM), thermal spraying, laser cladding, and other advanced manufacturing processes.

A typical production workflow includes raw material preparation, melting, atomization or mechanical processing, powder collection, classification, and packaging. Each stage is carefully controlled to produce powders with properties tailored to specific manufacturing requirements and end-use applications.

1.2 Why Metal Powders Matter

Metal powders have become a key enabler of modern manufacturing by providing capabilities beyond conventional casting, forging, and machining. They support near-net-shape production of complex components with significantly reduced material waste while enabling rapid solidification, refined microstructures, and advanced alloy development.

Because powder characteristics—including particle size, shape, flowability, purity, and oxygen content—directly influence manufacturing stability and final component performance, powder quality has become a critical factor in industries such as aerospace, automotive, energy, medical, and industrial equipment.

1.3 Historical Development

Metal powder production has evolved from simple mechanical filing and chemical reduction methods into today’s highly engineered manufacturing technologies.

Modern industrial production began in the early twentieth century with the commercialization of atomization. By the 1940s, air atomization was widely used for zinc, aluminum, and copper powders. During World War II, Germany introduced atomized iron powder through the RZ process, accelerating the development of powder metallurgy.

The 1950s saw the industrial adoption of water and inert gas atomization, while the 1960s and 1970s introduced Vacuum Induction Gas Atomization (VIGA) to satisfy the aerospace industry’s demand for high-purity superalloy powders. Today, metal powder manufacturing has become a mature global industry capable of producing hundreds of alloy systems for advanced manufacturing applications.

1.4 Global Market Overview

The global metal powder market continues to expand, driven by additive manufacturing, powder metallurgy, lightweight engineering, and high-performance industrial applications.

In 2025, the market is estimated at approximately USD 7.1–8.5 billion, with projected annual growth of 6.2–7.4%, reaching USD 9.5–14.6 billion by 2030–2034.

Asia-Pacific accounts for the largest market share, supported by China’s manufacturing capacity and rapid adoption of metal additive manufacturing. North America remains a major market for aerospace and defense, while Europe continues to benefit from strong demand in automotive, energy, and advanced engineering sectors.

By application, automotive remains the largest consumer of metal powders, followed by aerospace and defense, industrial manufacturing, medical devices, and energy. Iron and steel powders represent the largest product category, while gas-atomized powders continue to experience rapid growth due to increasing demand for additive manufacturing.

1.5 Applications Across Modern Manufacturing

Metal powders are widely used throughout modern manufacturing and support multiple advanced production technologies.

Additive Manufacturing (AM) uses high-quality spherical powders for processes such as LPBF, DED, and EB-PBF to produce high-performance metal components.

Powder Metallurgy (PM) remains the largest-volume application, enabling cost-effective production of precision components for automotive and industrial equipment.

Metal Injection Molding (MIM) combines fine metal powders with polymer binders to manufacture small, complex parts in high volumes.

Thermal Spraying applies metal powders as protective coatings to improve wear resistance, corrosion resistance, and thermal performance.

Surface Engineering, including laser cladding and repair technologies, uses metal powders to restore damaged components and extend service life.

1.6 Structure of This Guide

This guide provides a systematic overview of the complete metal powder manufacturing ecosystem, covering powder fundamentals, production technologies, advanced melting processes, material systems, quality control, powder selection, industrial applications, manufacturing equipment, economics, sustainability, and future developments.

Each chapter is organized to build upon previous topics while avoiding unnecessary repetition, emphasizing technical accuracy, practical engineering knowledge, and information value for engineers, manufacturers, researchers, and industrial decision-makers.

2. Fundamentals of Metal Powders

2.1 Definition of Metal Powders

Metal powders are finely divided metallic particles with controlled particle size, morphology, chemical composition, and internal microstructure. They may consist of pure metals, pre-alloyed materials, or blended elemental powders, depending on the intended manufacturing process.

Beyond individual particle characteristics, the bulk properties of a powder—including flowability, apparent density, tap density, and compressibility—determine its suitability for downstream processes such as powder metallurgy, additive manufacturing, metal injection molding, and thermal spraying.

2.2 Powder Classification

Metal powders can be classified according to their production method, particle size, particle morphology, purity, and intended application.

By Production Method

• Atomized powders (gas, water, plasma)
• Mechanically produced powders (milling, crushing)
• Chemically produced powders (reduction, carbonyl)
• Electrolytically produced powders

By Particle Size

• Nanopowders (<100 nm)
• Ultrafine powders (100 nm–10 μm)
• Fine powders (10–45 μm)
• Medium powders (45–150 μm)
• Coarse powders (>150 μm)

By Particle Morphology

• Spherical
• Irregular
• Flake
• Dendritic
• Nodular

By Purity

• Commercial purity
• High purity
• Ultra-high purity

By Application

• AM-grade
• PM-grade
• MIM-grade
• Thermal spray-grade

2.3 Key Powder Characteristics

Particle Size

Particle size and particle size distribution (PSD) are among the most important powder parameters because they directly influence flowability, packing density, melting behavior, and final part quality.

PSD is commonly expressed using D10, D50, and D90 values, representing the particle diameters below which 10%, 50%, and 90% of the particle volume is distributed.

Typical particle size ranges include:

• LPBF: 10–50 μm
• MIM: typically below 30 μm
• DED: 45–150 μm

Gas atomization generally produces powders ranging from approximately 10 μm to 1000 μm, depending on process conditions.

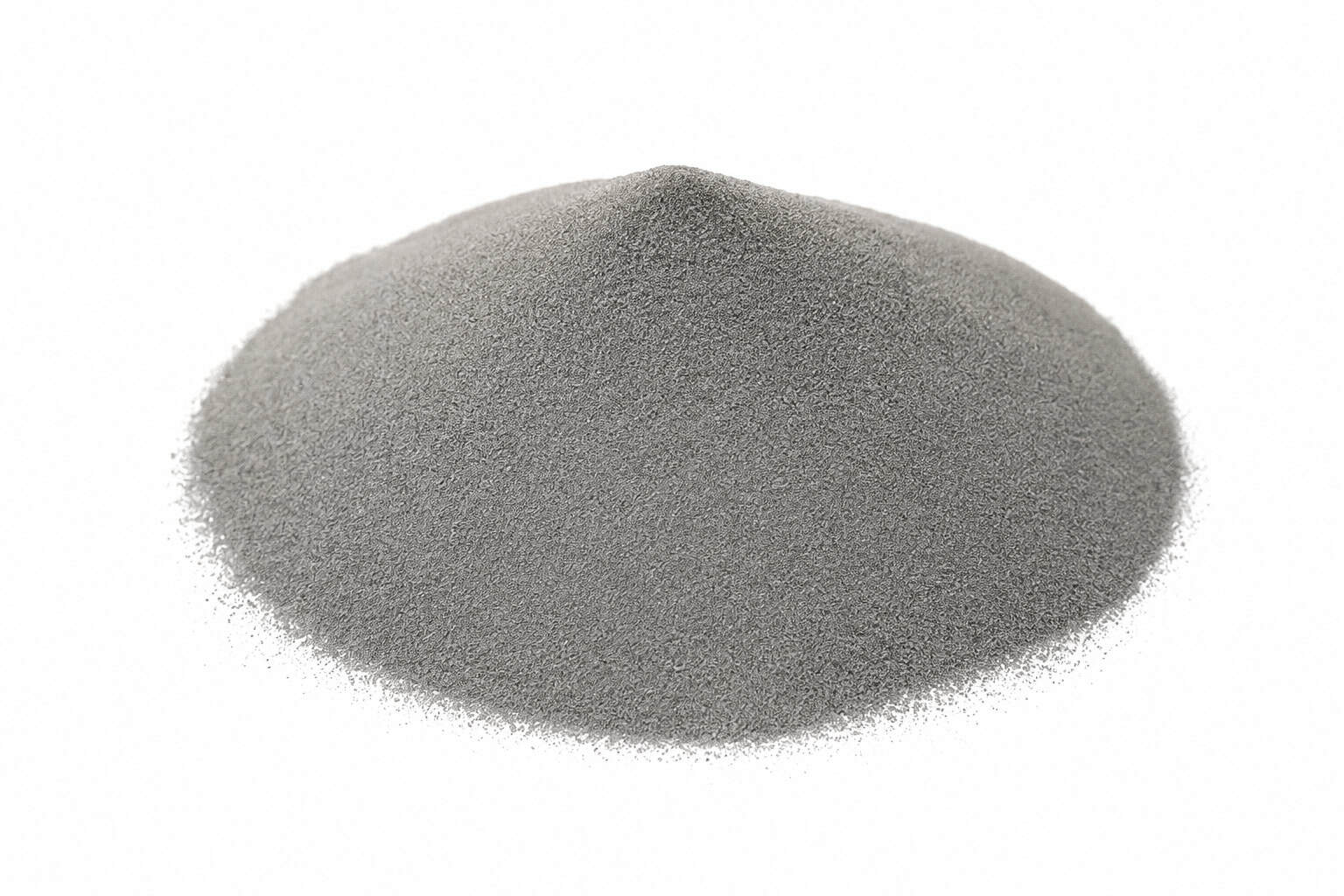

Particle Morphology

Particle morphology significantly influences powder flow, packing behavior, and consolidation.

Highly spherical powders provide excellent flowability and packing density, making them the preferred choice for additive manufacturing. Irregular powders generally provide higher green strength during compaction but exhibit lower flowability.

Water atomization primarily produces irregular particles, whereas gas and plasma atomization generate predominantly spherical powders.

Flowability

Flowability describes the ability of powder to move uniformly under gravity or external force.

Consistent powder flow is essential for powder feeding, layer recoating, and automated manufacturing processes. Poor flowability may result in unstable powder delivery, inconsistent layer thickness, and reduced component quality.

Flowability is strongly influenced by particle shape, particle size distribution, and surface condition.

Apparent Density

Apparent density is the mass per unit volume of freely poured powder.

It reflects the natural packing behavior of the powder and is affected by particle size, morphology, and surface characteristics. Higher apparent density generally contributes to improved powder packing and lower porosity after consolidation.

Tap Density

Tap density represents the maximum packing density achieved after mechanical vibration or tapping.

The relationship between apparent density and tap density provides an indication of powder compressibility and packing efficiency, which are important for powder metallurgy and additive manufacturing.

Purity

Powder purity refers to both alloy composition and the absence of undesirable contaminants.

For high-performance applications, strict control of alloy chemistry, trace elements, and non-metallic inclusions is essential to ensure consistent mechanical properties and manufacturing reliability.

Oxygen Content

Oxygen is one of the most critical impurities in reactive metal powders, particularly titanium, aluminum, and nickel-based superalloys.

Excessive oxygen reduces ductility and fatigue performance while increasing material brittleness.

Processes such as VIGA and EIGA are specifically designed to minimize oxygen pickup through vacuum melting, inert gas protection, and contamination control.

2.4 Relationship Between Powder Properties and Manufacturing Performance

Powder characteristics directly determine manufacturing stability and component performance. Different manufacturing technologies therefore require different powder specifications.

• LPBF requires highly spherical powders with excellent flowability, low oxygen content, and a narrow particle size distribution to achieve dense, defect-free components.
• EB-PBF operates under vacuum at elevated temperatures and generally uses slightly coarser powders while maintaining strict compositional control.
• DED relies on relatively coarse spherical powders to ensure stable powder feeding and prevent nozzle blockage during deposition.
• Binder Jetting emphasizes powder flowability and spreadability to maintain uniform powder layers across large build areas.
• Powder Metallurgy (PM) can effectively utilize irregular powders, where mechanical interlocking improves green strength during compaction.
• Metal Injection Molding (MIM) requires fine powders with excellent particle uniformity to ensure homogeneous feedstock preparation and high sintered density.

3. Metal Powder Production Technologies

This chapter provides an overview of the principal metal powder production routes. Detailed process principles and equipment configurations are discussed in Chapter 4 and Chapter 10.

3.1 Mechanical Powder Production

Mechanical methods produce metal powders through physical size reduction without melting the material.

Common techniques include:

Ball Milling — Grinding media fracture bulk material through repeated impact and abrasion, producing fine powders and mechanically alloyed materials.

Attrition Milling — A high-energy process capable of producing finer particles and promoting solid-state alloying.

Hammer Milling — Uses impact forces to generate relatively coarse powders with high productivity.

Jet Milling — Accelerates particles in high-velocity gas streams, where particle-to-particle collisions produce fine powders with controlled size distribution.

Mechanical production is economical for brittle materials and specialty alloys but generally produces irregular particles with limited control over morphology and particle size distribution.

3.2 Chemical Powder Production

Chemical methods convert metal compounds into metallic powders through reduction or decomposition reactions.

Oxide Reduction is widely used for producing iron powders by reducing iron oxides with hydrogen or carbon monoxide.

Carbonyl Processing thermally decomposes volatile metal carbonyls to produce extremely fine, high-purity nickel and iron powders.

Hydride-Dehydride (HDH) converts titanium into brittle hydrides for crushing, followed by dehydrogenation to recover metallic titanium powder. When combined with plasma spheroidization, HDH provides a cost-effective route for producing spherical titanium powders.

Chemical processes provide excellent purity and compositional control but are generally limited to selected metals and alloy systems.

3.3 Electrochemical Powder Production

Electrochemical production generates metal powders through electrolytic deposition.

Metal ions are reduced at the cathode to form dendritic or flake-shaped powders, with copper, nickel, and iron representing the most common commercial products.

Electrolytic powders offer high purity and excellent chemical control, although production efficiency and scalability remain lower than atomization-based methods.

3.4 Atomization Technologies Overview

Atomization is the dominant industrial method for producing metal powders, particularly for additive manufacturing and high-performance alloys.

The process involves melting the feedstock, disintegrating the molten stream into fine droplets using high-energy atomizing media, and rapidly solidifying the droplets into powder particles.

Powder characteristics are primarily influenced by melt superheat, atomization pressure, gas temperature, nozzle configuration, and the gas-to-metal ratio (GMR). Appropriate control of these parameters determines particle size distribution, morphology, and production efficiency.

The major atomization technologies are introduced in Chapter 4.

3.5 Emerging Powder Manufacturing Technologies

Several emerging technologies continue to improve powder quality, production efficiency, and material utilization.

Ultrasonic Atomization employs high-frequency ultrasonic vibration to generate fine spherical droplets without high-pressure gas.

Microwave Plasma Processing rapidly converts feedstock into high-performance powders with excellent compositional uniformity and process efficiency.

Plasma Spheroidization transforms irregular powders into spherical particles, significantly improving flowability and packing density for additive manufacturing.

In-Flight Plasma Atomization enables the production of ultrafine spherical powders suitable for advanced manufacturing applications requiring extremely narrow particle size distributions.

Chapter Summary

Mechanical, chemical, electrochemical, and atomization technologies each occupy distinct positions within modern powder manufacturing.

Mechanical and chemical routes remain important for conventional powder metallurgy, while atomization technologies dominate the production of high-quality powders for additive manufacturing, thermal spraying, and other advanced applications. Emerging technologies continue to improve powder quality, production efficiency, and sustainability while expanding the range of commercially available powder materials.

4. Atomization Technologies

Atomization is the most widely used technology for manufacturing high-quality metal powders. By converting a continuous molten metal stream into rapidly solidified droplets, atomization produces powders with controlled particle size, morphology, chemical composition, and microstructure. The selected atomization process directly influences powder quality, production efficiency, and application suitability.

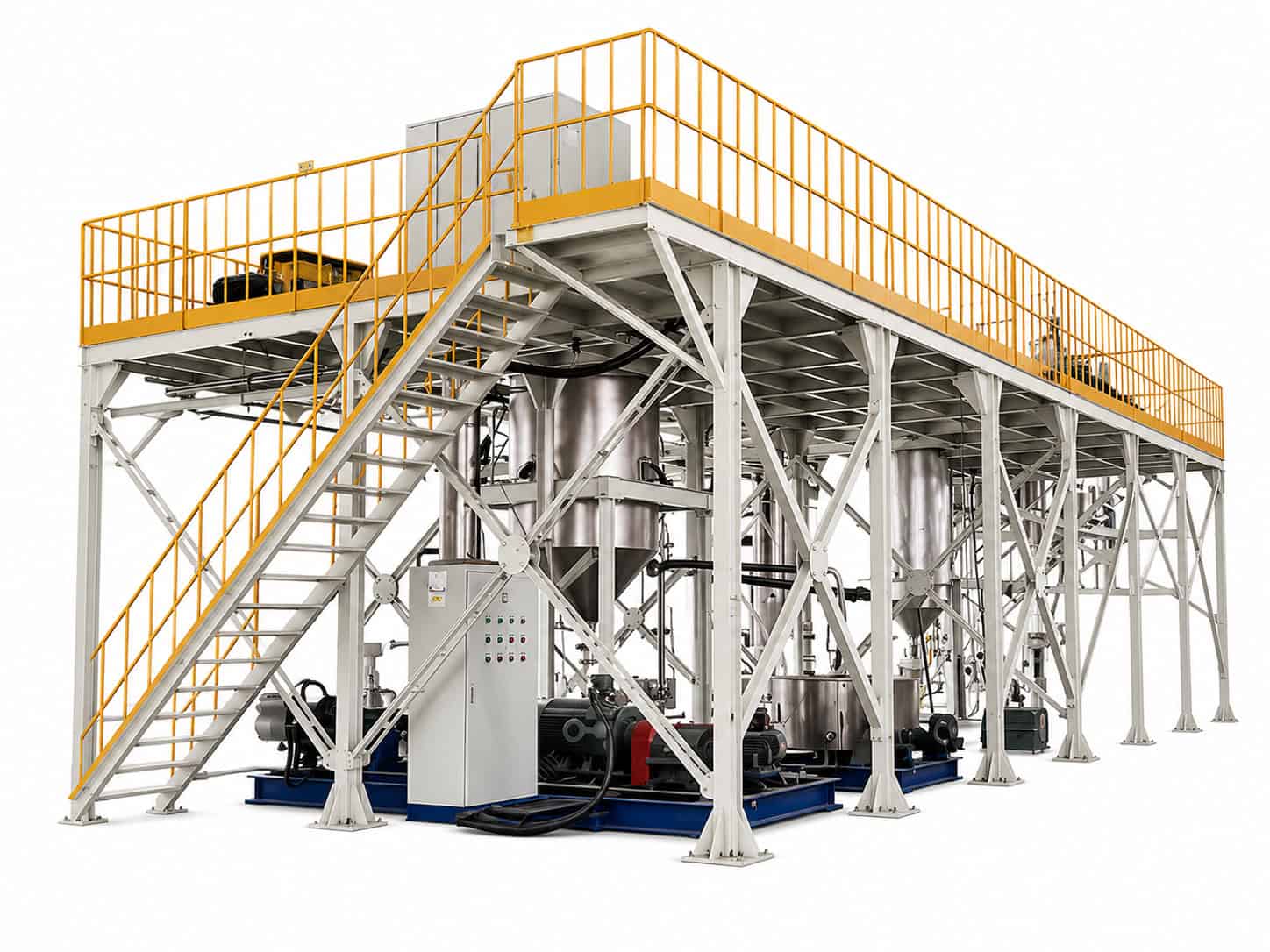

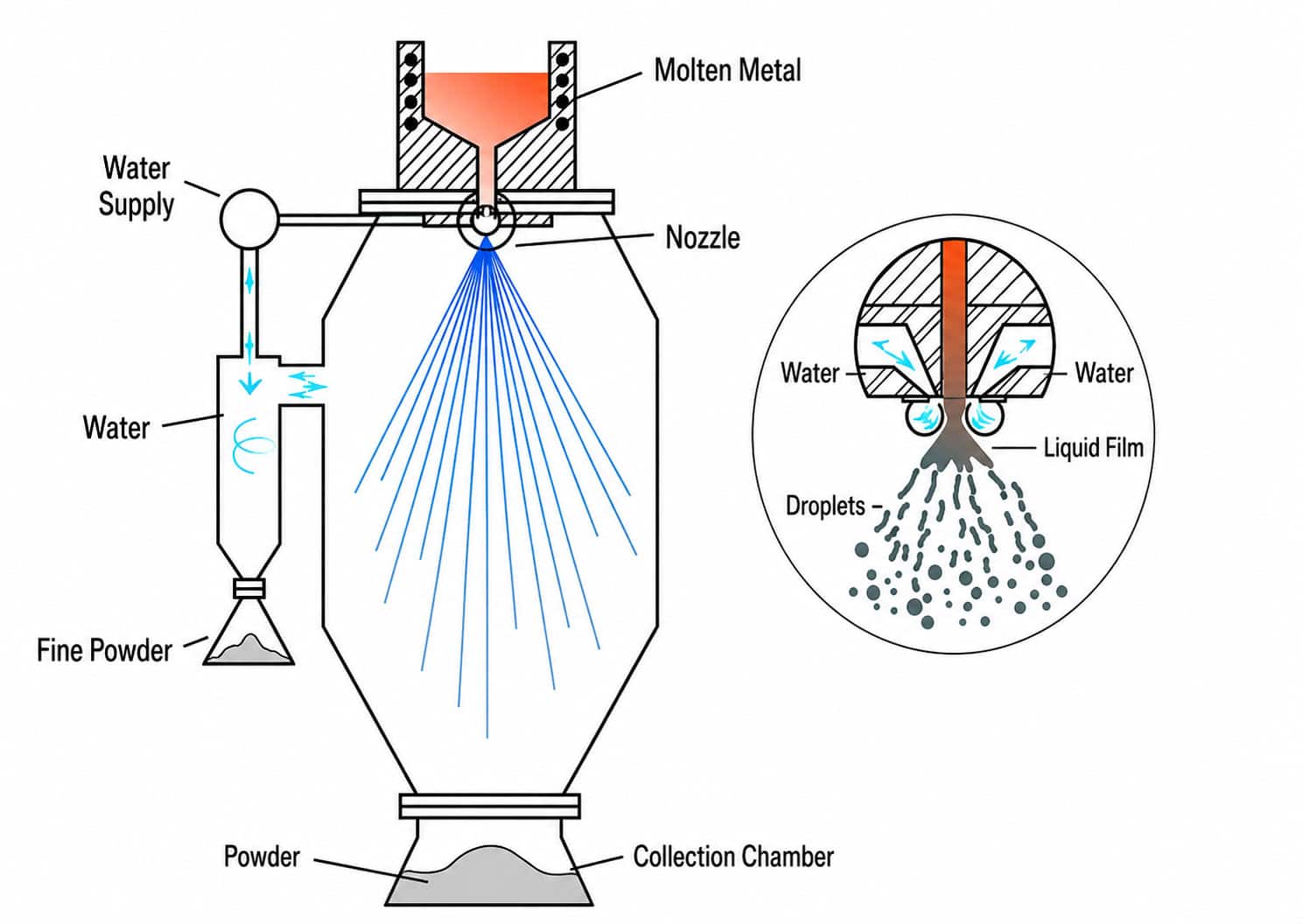

4.1 Water Atomization (WA)

Water atomization disintegrates a molten metal stream using high-pressure water jets. Rapid cooling rates of approximately 10⁴–10⁵ K/s produce fine powders with predominantly irregular particle shapes.

Operating pressures around 100 bar (10 MPa) typically generate iron powders with median particle sizes of 50–100 μm, while aluminum powders commonly range from 20–100 μm.

Advantages

• High production efficiency
• Low manufacturing cost
• Fine particle size

Limitations

• Irregular particle morphology
• Higher oxygen content
• Limited suitability for oxidation-sensitive alloys

Typical Applications

• Powder metallurgy
• Ferrous structural components
• Friction materials
• Cost-sensitive powder production

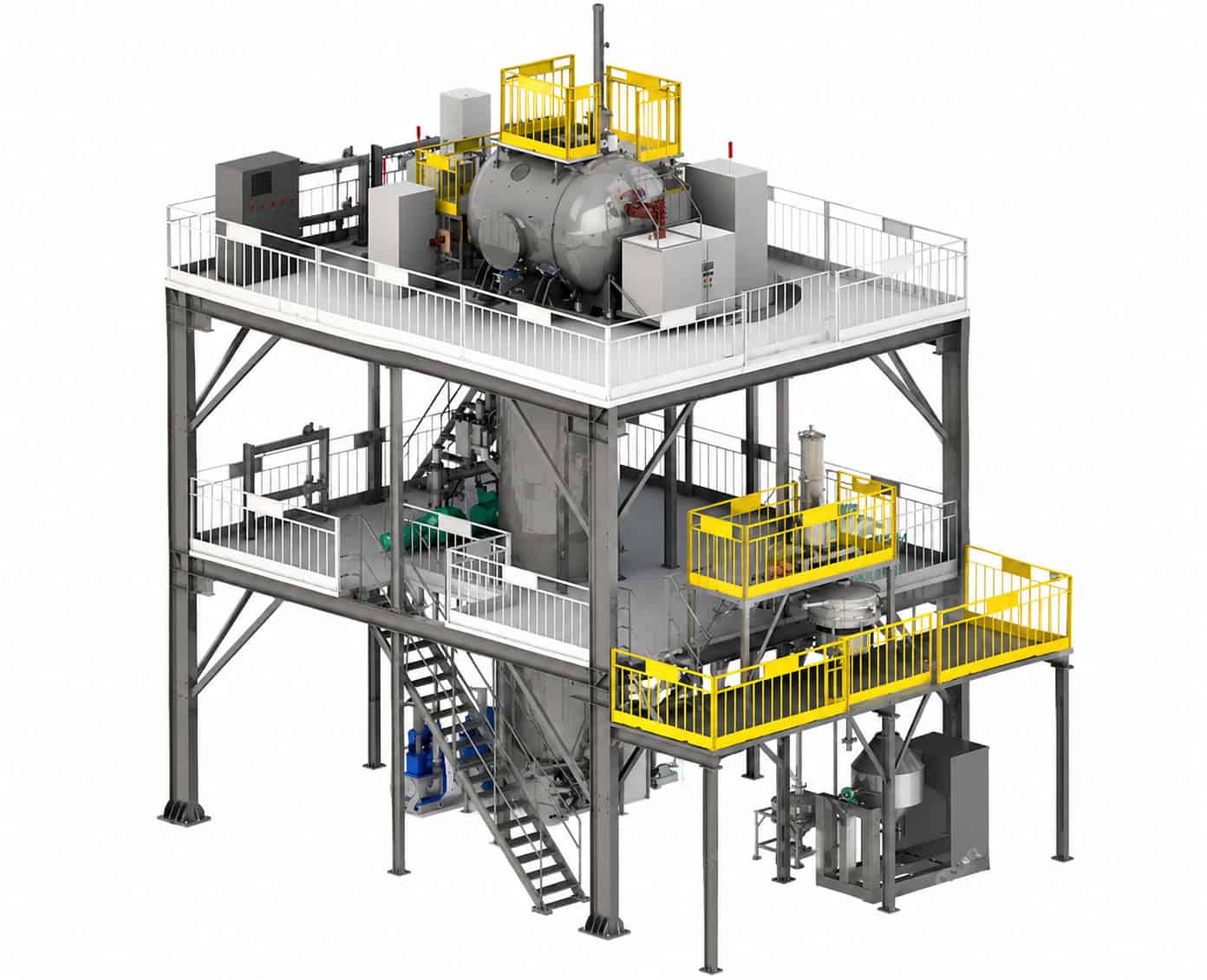

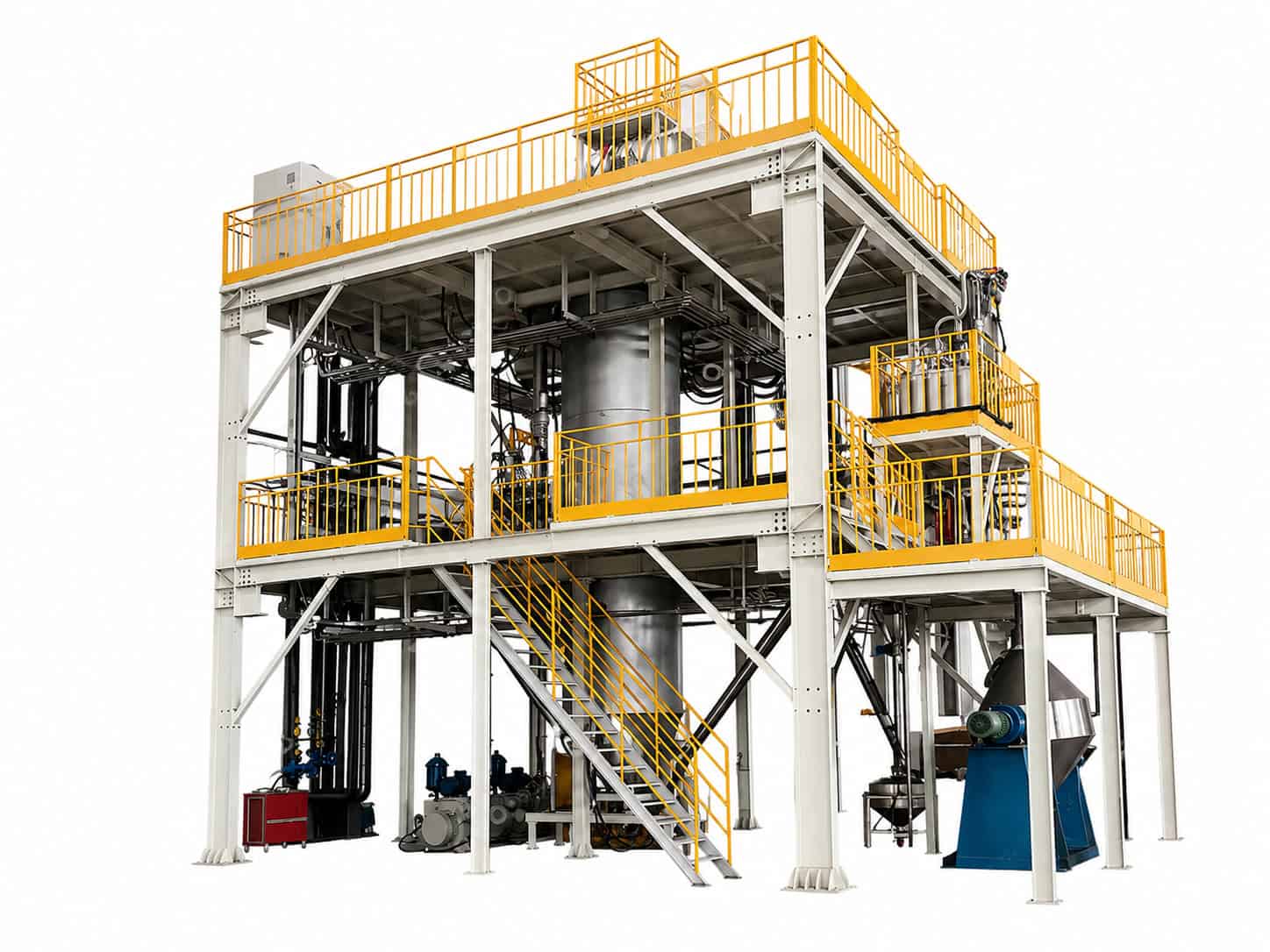

4.2 Gas Atomization (GA)

Gas atomization employs high-velocity inert gases, typically argon, nitrogen, or helium, to fragment a molten metal stream into fine droplets that rapidly solidify into spherical powders.

Powder characteristics are primarily determined by atomization pressure, gas temperature, melt superheat, nozzle geometry, and the gas-to-metal ratio (GMR). Increasing gas pressure and temperature generally improves atomization efficiency and reduces particle size.

Industrial systems commonly operate at atomization pressures around 2 MPa, producing powders with excellent sphericity and relatively low oxygen content across a broad range of alloy systems.

Advantages

• High sphericity
• Low oxygen pickup
• Broad alloy compatibility

Limitations

• Higher production cost than water atomization
• Wider particle size distribution

Typical Applications

• Additive manufacturing
• Thermal spraying
• Metal injection molding

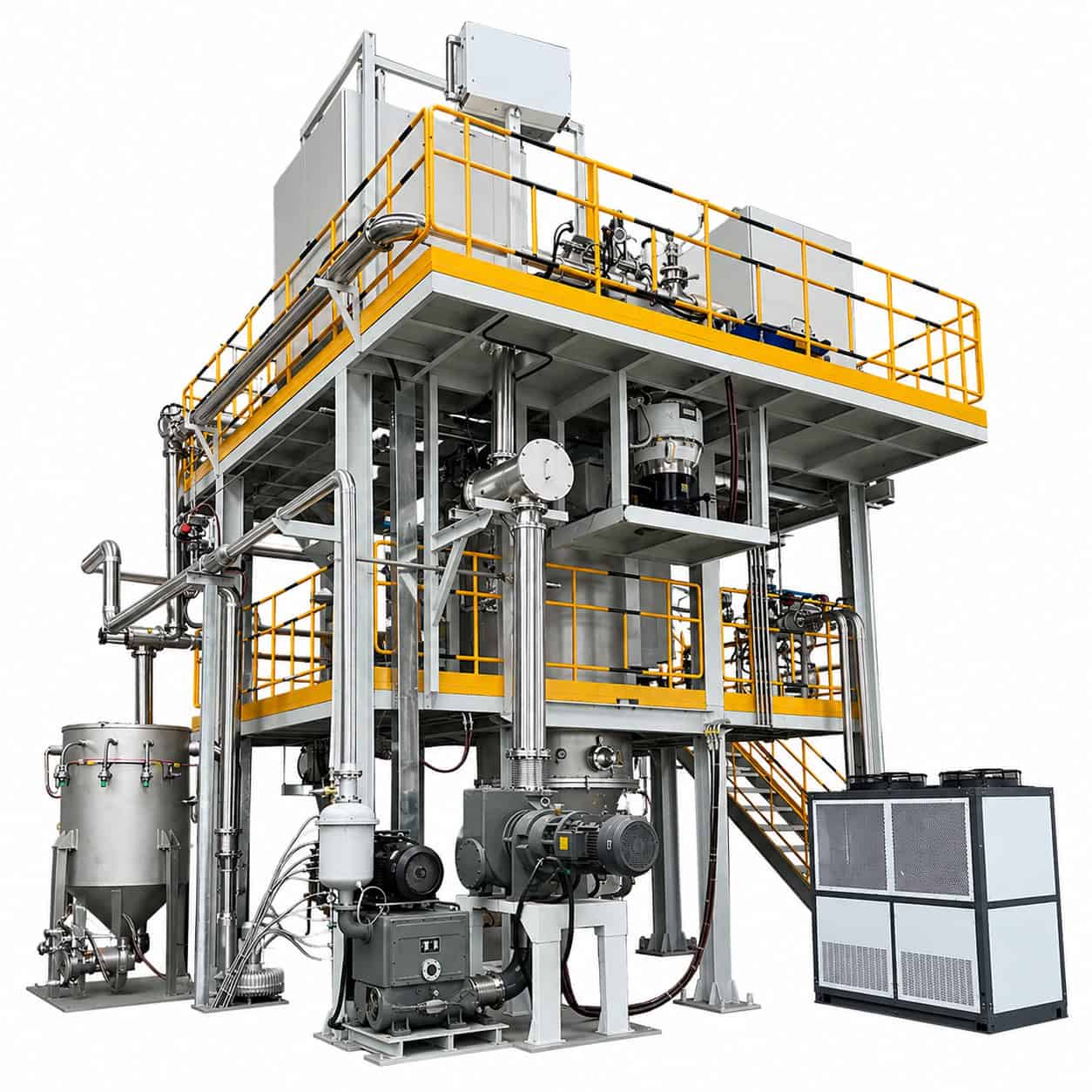

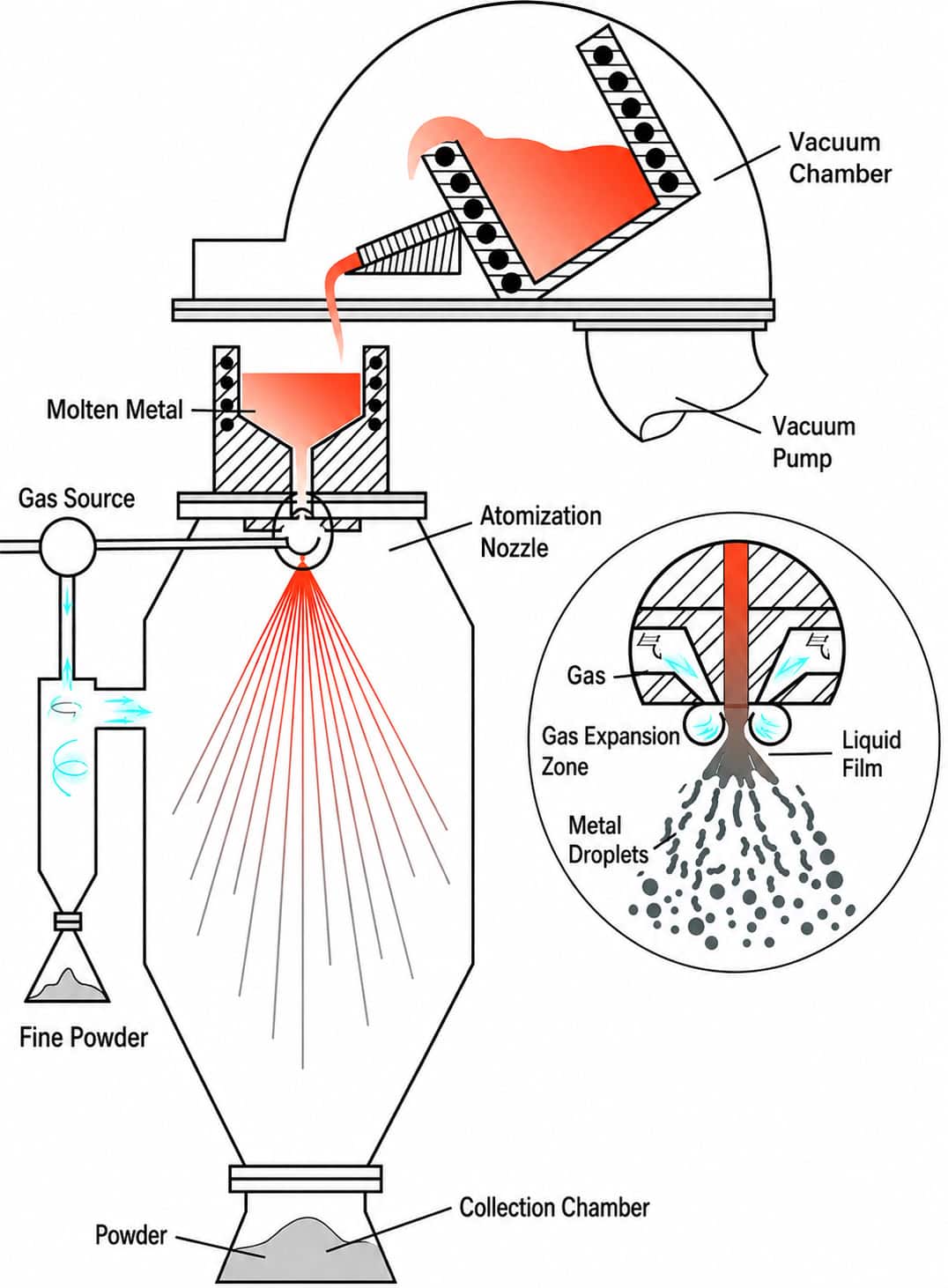

4.3 Vacuum Induction Gas Atomization (VIGA)

Vacuum Induction Gas Atomization combines vacuum induction melting (VIM) with inert gas atomization to manufacture high-performance alloy powders.

The alloy is melted under vacuum or a protective atmosphere using electromagnetic induction before being poured through a tundish into the atomization nozzle, where high-pressure inert gas converts the molten stream into spherical droplets.

VIGA has become the industry standard for producing nickel-based superalloys, cobalt alloys, iron-based specialty alloys, maraging steels, and MCrAlY materials. It is particularly suitable for oxidation-sensitive alloys containing aluminum, titanium, or rare-earth elements.

Typical oxygen levels range from 50–200 ppm, while particle size distributions commonly exhibit D50 values between 30 and 90 μm.

Commercial systems are available with batch capacities from 5 kg to 2,500 kg, making VIGA suitable for both research and large-scale industrial production.

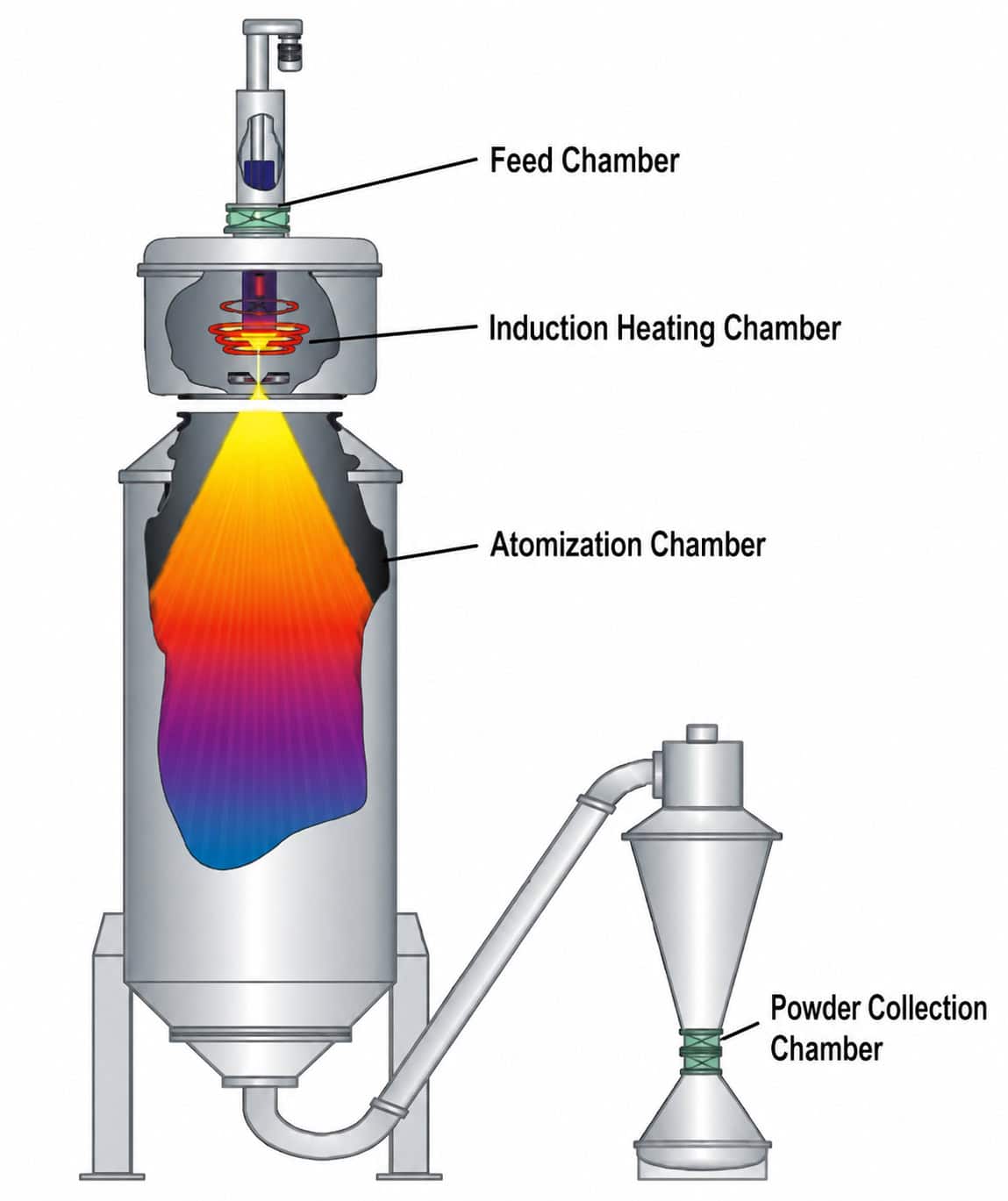

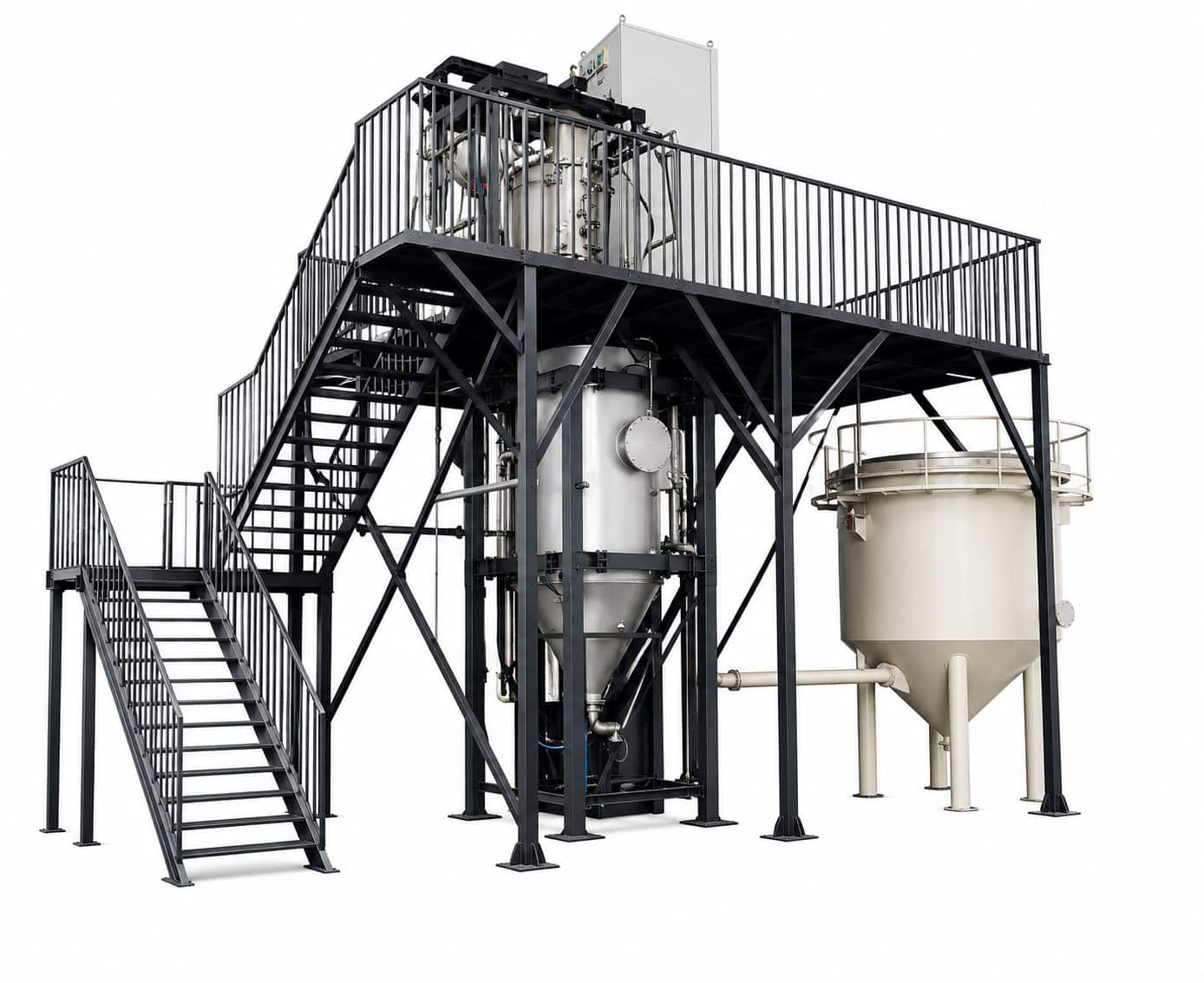

4.4 Electrode Induction Gas Atomization (EIGA)

Electrode Induction Gas Atomization employs a crucible-free melting configuration designed for highly reactive alloys.

Instead of melting material inside a crucible, the tip of a pre-alloyed electrode is induction heated before the molten metal is immediately atomized by high-pressure inert gas. Eliminating refractory contact significantly reduces contamination risk.

EIGA is widely used for titanium alloys, titanium aluminides, nickel-titanium shape memory alloys, niobium, and other reactive or refractory metals requiring exceptionally high purity.

The process produces spherical powders with low oxygen content, excellent flowability, and particle sizes typically below 150 μm. Cooling rates of 10³–10⁶ K/s promote refined microstructures and compositional uniformity.

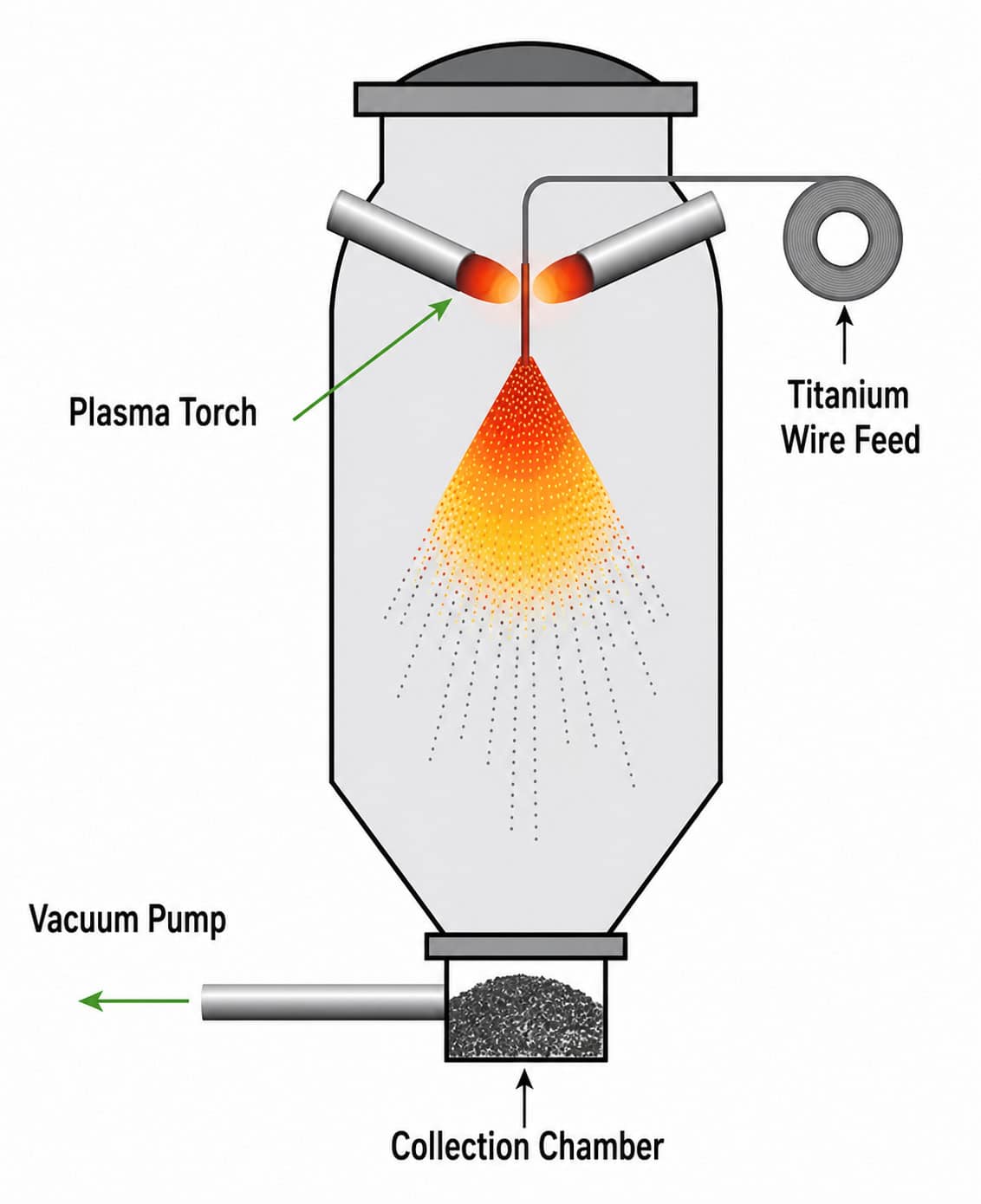

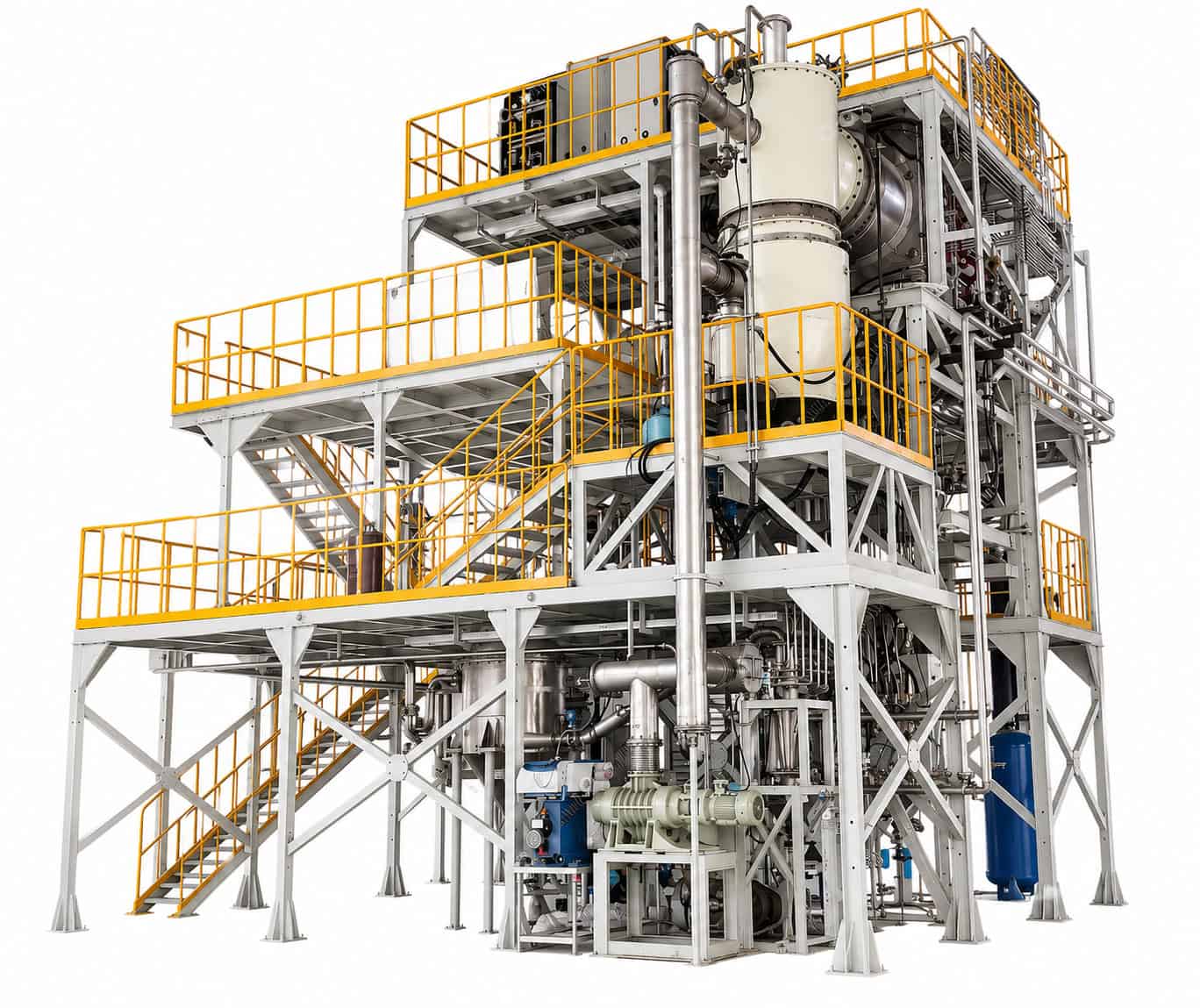

4.5 Plasma Atomization (PA)

Plasma atomization melts a continuously fed metal wire using multiple high-temperature plasma jets before atomizing the molten material into spherical droplets.

The process produces powders with outstanding sphericity, extremely low contamination, and excellent chemical consistency, making it particularly suitable for reactive and high-melting-point alloys.

Advantages

• Exceptional powder sphericity
• Very low contamination
• Excellent purity

Limitations

• High energy consumption
• Lower production throughput

Typical Applications

• Titanium alloys
• Zirconium alloys
• Refractory metals
• High-value additive manufacturing powders

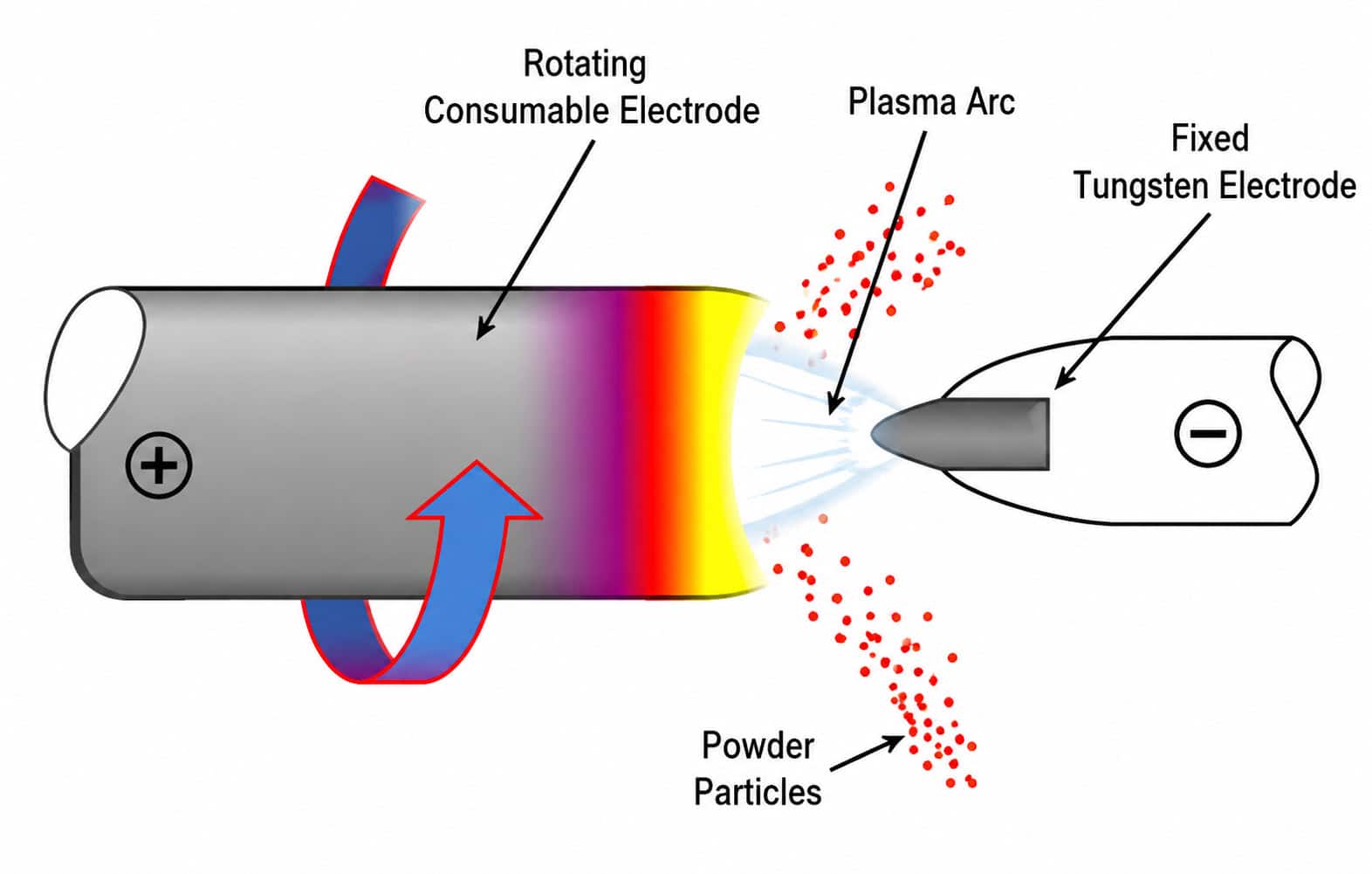

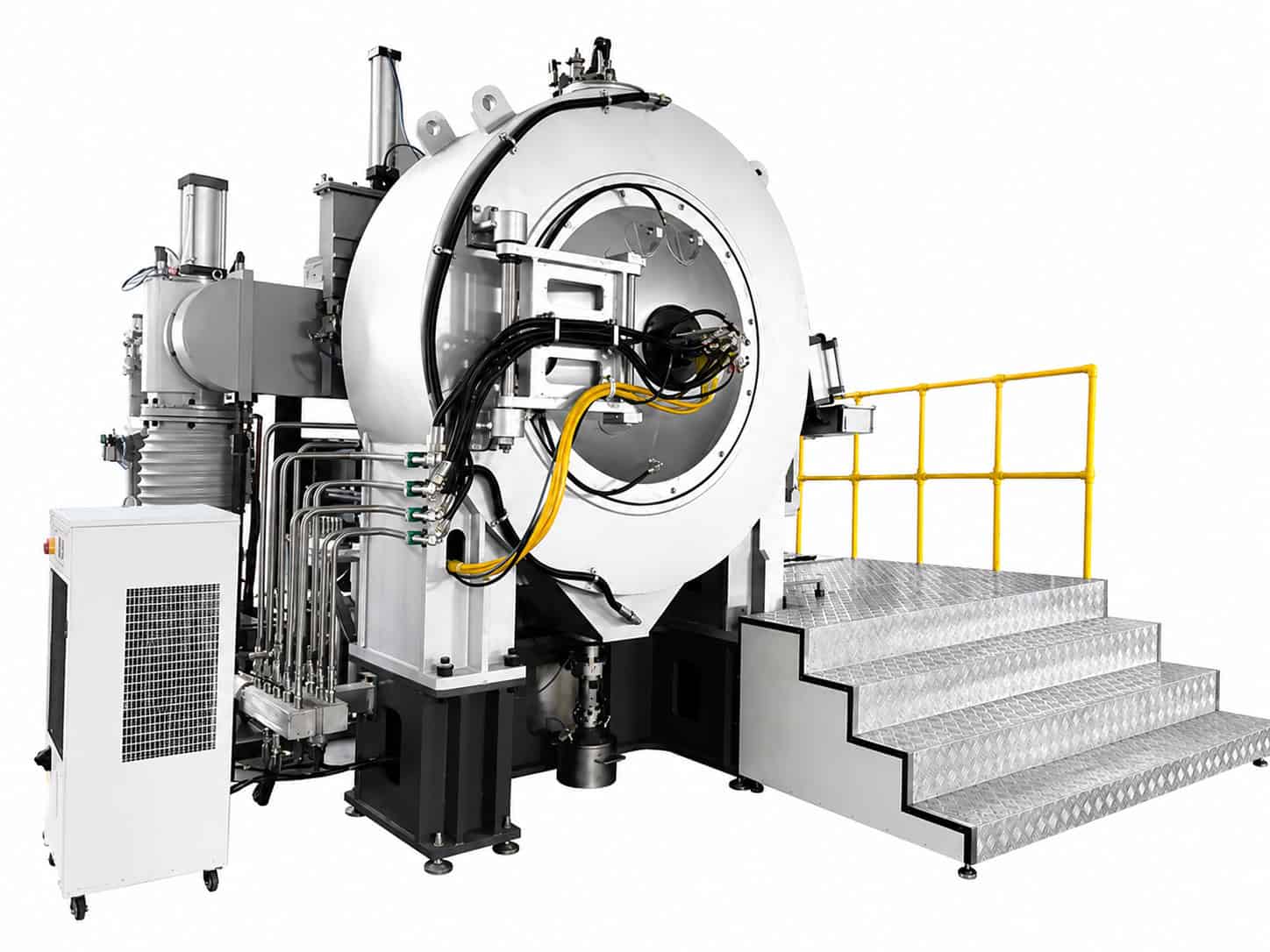

4.6 Plasma Rotating Electrode Process (PREP)

PREP is a centrifugal atomization process in which the end of a rapidly rotating metal bar is melted by a plasma arc. Centrifugal force ejects molten droplets that solidify into highly spherical powder particles under an inert atmosphere.

Compared with conventional gas atomization, PREP produces powders with higher sphericity, fewer satellite particles, narrower particle size distributions, and superior chemical cleanliness.

Typical particle sizes range from 20–500 μm.

PREP is widely applied to titanium alloys, nickel-based superalloys, refractory alloys, and high-performance steels where powder quality is the primary requirement.

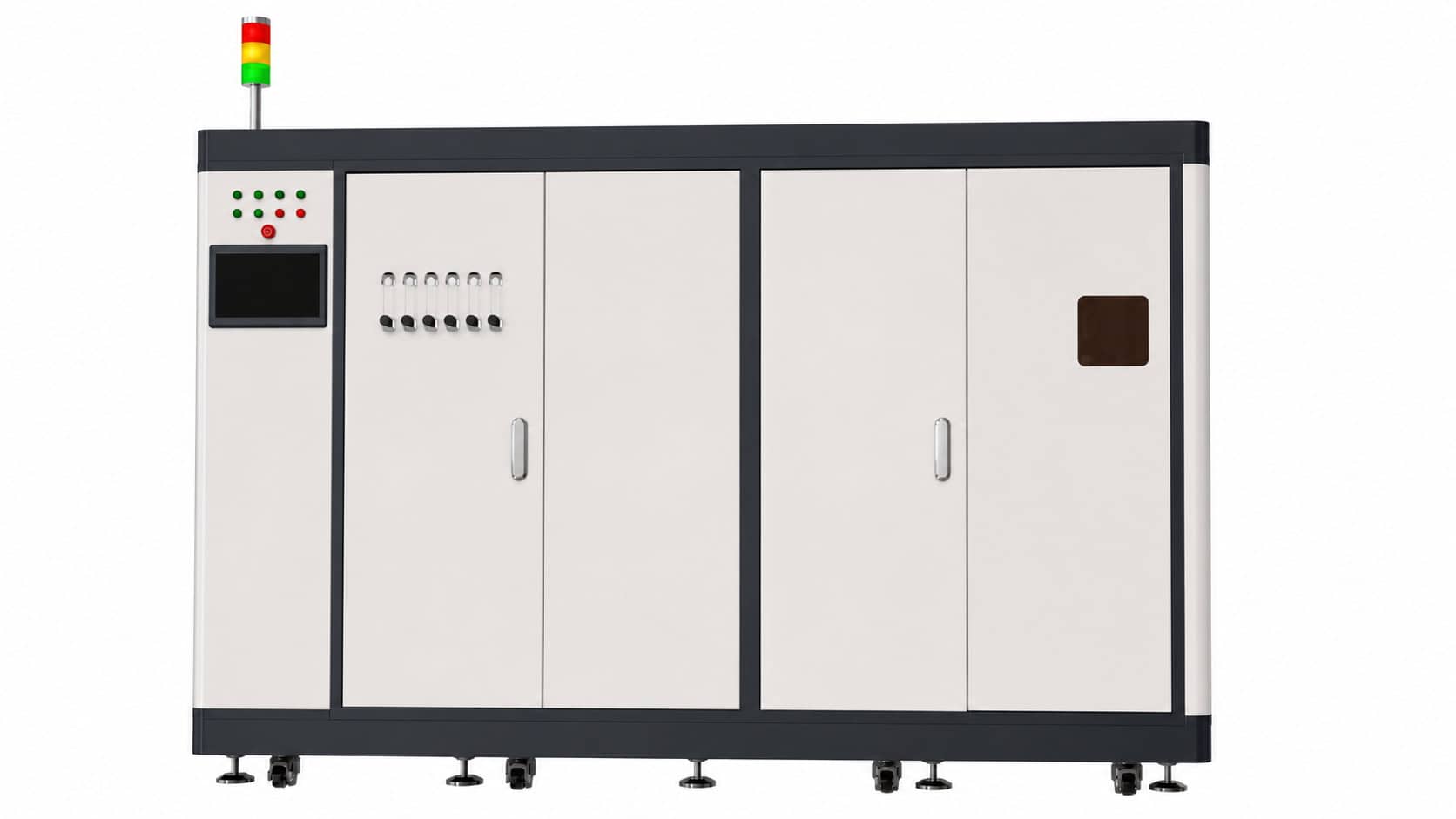

4.7 Microwave Plasma Atomization

Microwave plasma atomization is an emerging technology that uses high-temperature microwave-generated plasma to convert feedstock into high-quality spherical powders.

The process offers rapid heating, excellent compositional uniformity, and efficient material utilization. In addition to powder production, microwave plasma can also spheroidize irregular powders and synthesize advanced ceramic compounds such as nitrides and carbides.

As industrial adoption expands, microwave plasma is expected to become an important technology for next-generation powder manufacturing.

4.8 Comparison of Atomization Technologies

Chapter Summary

Each atomization technology offers distinct advantages in terms of powder quality, production efficiency, alloy compatibility, and manufacturing cost.

Water atomization remains the preferred solution for high-volume, cost-sensitive applications, while gas atomization provides the versatility required for most engineering alloys. VIGA and EIGA dominate the production of high-purity powders for aerospace and additive manufacturing, whereas plasma atomization and PREP are reserved for applications demanding the highest levels of powder quality, sphericity, and cleanliness.

Selecting the appropriate atomization technology ultimately depends on material characteristics, powder specifications, production scale, and end-use requirements.

5. Advanced Melting Technologies

Advanced melting technologies provide the high-quality molten metal required for modern powder manufacturing. Although these processes do not produce metal powder directly, they play a critical role in controlling alloy chemistry, cleanliness, oxygen content, and melt homogeneity before atomization.

The selection of a melting process depends primarily on alloy composition, reactivity, purity requirements, and the subsequent powder production technology.

5.1 Vacuum Induction Melting (VIM)

Vacuum Induction Melting (VIM) uses electromagnetic induction to melt metallic materials under vacuum or an inert atmosphere, minimizing oxidation while maintaining precise control of alloy composition.

Because melting occurs in a controlled environment, VIM produces clean, chemically homogeneous melts suitable for high-performance powder production. It is widely integrated with gas atomization systems, particularly VIGA, for manufacturing aerospace-grade superalloys and specialty alloys.

Modern industrial facilities often operate multiple VIM furnaces continuously to support stable, large-scale powder production.

5.2 Cold Crucible Induction Melting (CCIM)

Cold Crucible Induction Melting employs a water-cooled segmented copper crucible in which the molten metal is separated from the crucible wall by a solidified shell, commonly known as a skull.

Because the melt does not contact refractory materials, CCIM effectively eliminates crucible contamination and is particularly suitable for highly reactive metals and high-purity alloys.

Typical applications include titanium, zirconium, refractory metals, and advanced ceramic materials requiring extremely low contamination.

5.3 Plasma Melting

Plasma melting uses a high-temperature plasma arc as the heat source to melt metallic materials.

The concentrated energy density enables efficient processing of refractory metals, reactive alloys, and advanced materials that are difficult to melt using conventional induction systems. Hydrogen plasma can also suppress oxidation during melting and improve powder quality.

Plasma melting is increasingly applied in the production of high-entropy alloys, advanced titanium alloys, and specialty powder feedstocks.

5.4 Electron Beam Melting

Electron Beam Melting (EBM) uses a focused electron beam under high vacuum to generate localized heating and melt metallic materials.

The vacuum environment minimizes oxidation while allowing efficient processing of reactive metals and high-purity alloys. Unlike laser heating, electron beams couple efficiently with highly reflective materials such as pure copper, making the technology particularly suitable for selected high-conductivity materials.

Electron beam melting is widely used in specialty metallurgy and advanced powder production.

5.5 Skull Melting

Skull melting uses a water-cooled crucible in which a thin layer of the molten material solidifies against the crucible wall, forming a protective skull that isolates the melt from the container.

This self-contained molten pool minimizes contamination and is commonly employed when processing titanium and other reactive alloys prior to atomization.

The process provides excellent chemical cleanliness while maintaining stable melting conditions for high-performance powder production.

5.6 Technology Comparison

5.7 Selection Guide

The choice of melting technology depends primarily on alloy characteristics and powder quality requirements.

VIM remains the preferred solution for most alloy systems requiring accurate composition control and low oxygen content.

CCIM is recommended when contamination from refractory materials must be eliminated, particularly for reactive metals.

Plasma Melting is well suited for refractory alloys and advanced materials requiring extremely high melting temperatures.

Electron Beam Melting provides excellent purity under high vacuum and is particularly effective for reactive and highly conductive metals.

Skull Melting is widely adopted for titanium alloy production, where contamination control is essential before atomization.

Chapter Summary

Unlike atomization technologies, advanced melting technologies are responsible for producing clean, chemically homogeneous molten metal rather than powder itself. Their primary function is to provide stable melting conditions, minimize contamination, and ensure alloy consistency prior to atomization.

Selecting an appropriate melting process is therefore a key step in achieving the powder quality required for high-performance applications in aerospace, additive manufacturing, energy, and other advanced industries.

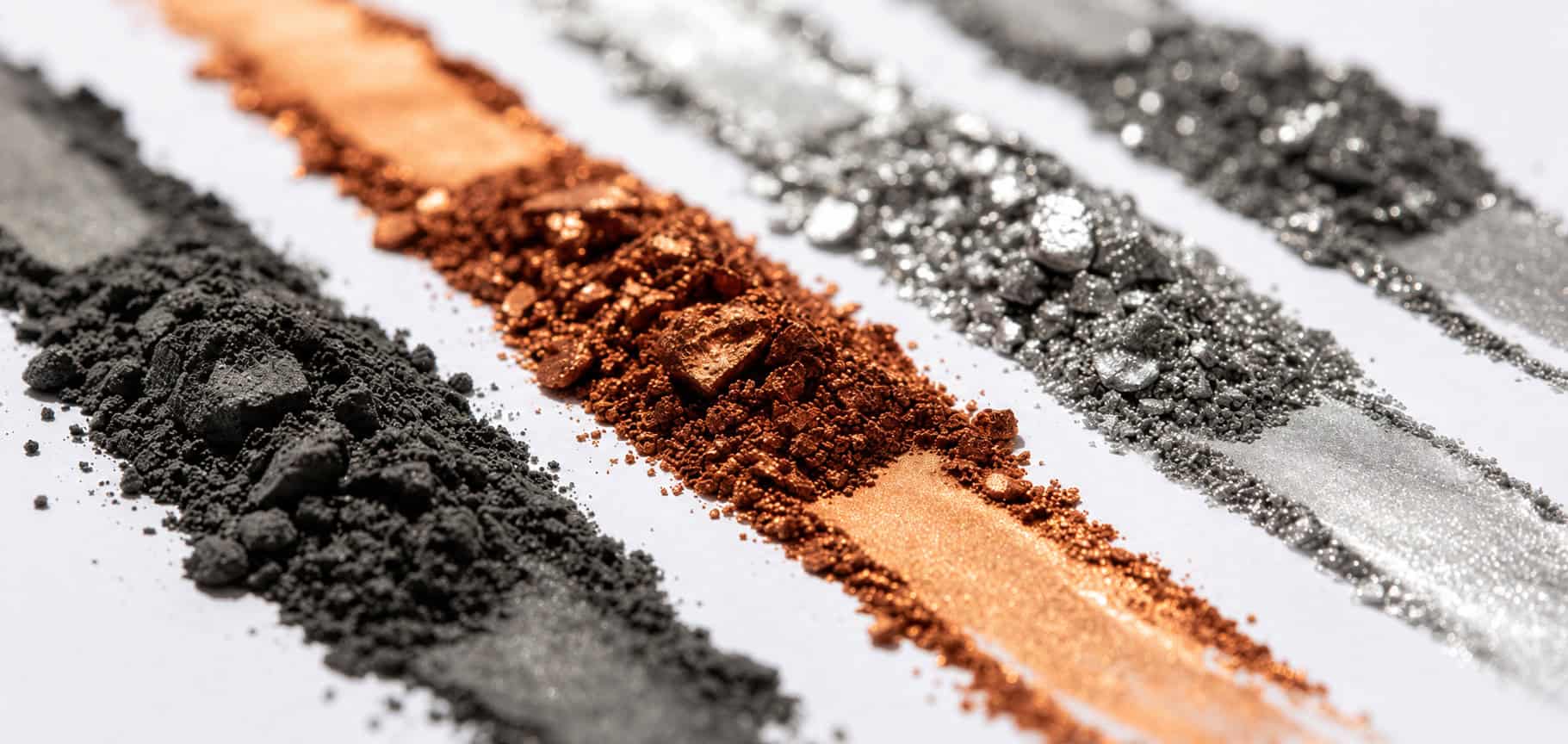

6. Metal Powder Materials

Metal powders are available in a wide range of compositions to satisfy the performance requirements of different manufacturing technologies and industrial applications. Material selection directly influences process stability, mechanical properties, corrosion resistance, wear performance, and production cost. Choosing an appropriate powder therefore requires balancing application requirements, manufacturing processes, and economic considerations.

6.1 Iron-Based Powders

Iron-based powders represent the largest segment of the global metal powder market due to their low cost, broad availability, and excellent mechanical performance.

Commercial grades include pure iron, low-alloy steels, stainless steels, tool steels, maraging steels, and high-speed steels. These materials are widely used in powder metallurgy, additive manufacturing, thermal spraying, and laser cladding.

Typical applications include automotive transmission components, gears, bearings, molds, industrial machinery, and structural parts.

Typical Characteristics

• High strength
• Good wear resistance
• Excellent processability
• Cost-effective for large-scale production

6.2 Aluminum-Based Powders

Aluminum powders are valued for their low density, high specific strength, and excellent corrosion resistance.

Common alloys include AlSi10Mg, AlSi12, Al6061, Al7075, and Al2024. Gas-atomized spherical powders are widely used in additive manufacturing, while water-atomized powders are commonly used in powder metallurgy.

Typical applications include aerospace structures, automotive lightweight components, heat exchangers, and electronic housings.

Typical Characteristics

• Low density
• High thermal conductivity
• Good corrosion resistance
• Excellent lightweight performance

6.3 Titanium-Based Powders

Titanium powders combine high specific strength with excellent corrosion resistance and biocompatibility.

Commercially pure titanium and Ti-6Al-4V are the most widely used grades for additive manufacturing and biomedical applications. Because titanium readily reacts with oxygen, nitrogen, and hydrogen at elevated temperatures, powder production requires strict control of contamination.

Typical production methods include EIGA, PREP, and plasma atomization.

Typical applications include aerospace components, orthopedic implants, dental restorations, and high-performance industrial parts.

Typical Characteristics

• High strength-to-weight ratio
• Excellent corrosion resistance
• Outstanding biocompatibility
• Low oxygen tolerance during processing

6.4 Nickel-Based Superalloy Powders

Nickel-based superalloys maintain excellent mechanical properties at elevated temperatures and under severe service conditions.

Common grades include Inconel 625, Inconel 718, Hastelloy X, Rene series alloys, and other precipitation-strengthened superalloys.

These powders are typically produced by VIGA to ensure low oxygen content, high purity, and uniform alloy composition.

Typical applications include turbine blades, combustion components, aerospace engines, nuclear power equipment, and high-temperature industrial systems.

Typical Characteristics

• Outstanding high-temperature strength
• Excellent oxidation resistance
• Superior creep resistance
• Long service life under extreme conditions

6.5 Cobalt-Based Powders

Cobalt-based powders provide excellent wear resistance, corrosion resistance, and high-temperature stability.

Stellite alloys remain the most widely used cobalt-based materials for surface engineering and component repair.

Typical applications include valve seats, cutting tools, oil and gas equipment, turbine components, and biomedical implants.

Typical Characteristics

• Excellent wear resistance
• High corrosion resistance
• Good thermal stability
• Suitable for harsh operating environments

6.6 Copper-Based Powders

Copper powders offer outstanding electrical and thermal conductivity.

Pure copper, CuCrZr, CuNiSi, and bronze alloys are widely used in additive manufacturing, thermal spraying, and powder metallurgy.

Because copper has high thermal conductivity and laser reflectivity, powder quality and process optimization are particularly important for additive manufacturing.

Typical applications include electrical conductors, heat exchangers, molds, induction coils, and electronic components.

Typical Characteristics

• Excellent electrical conductivity
• High thermal conductivity
• Good corrosion resistance
• Excellent heat transfer capability

6.7 Refractory Metal Powders

Refractory metals possess extremely high melting points and retain strength under elevated temperatures.

Typical materials include tungsten, molybdenum, tantalum, niobium, and their alloys.

These powders are generally produced using plasma atomization, reduction processes, or specialized melting technologies.

Typical applications include aerospace propulsion, high-temperature furnaces, nuclear systems, defense equipment, and electronic components.

Typical Characteristics

• Extremely high melting points
• Excellent high-temperature strength
• Good thermal stability
• High density

6.8 Precious Metal Powders

Precious metal powders are used where exceptional corrosion resistance, electrical conductivity, or catalytic performance is required.

Common materials include gold, silver, platinum, palladium, and their alloys.

Typical applications include electronic devices, catalytic systems, medical instruments, jewelry manufacturing, and specialized additive manufacturing.

Typical Characteristics

• Excellent corrosion resistance
• High electrical conductivity
• Superior chemical stability
• High material value

6.9 High-Entropy Alloy Powders

High-entropy alloys (HEAs) consist of multiple principal elements rather than a single dominant base metal.

Their unique compositions provide an attractive combination of strength, toughness, corrosion resistance, and thermal stability.

Most HEA powders are produced by gas atomization or VIGA to achieve uniform composition and controlled particle morphology.

Typical applications include aerospace, energy, nuclear engineering, and advanced research.

Typical Characteristics

• High strength
• Excellent thermal stability
• Good corrosion resistance
• Significant alloy design flexibility

6.10 Amorphous Alloy Powders

Amorphous alloys, also known as metallic glasses, possess a non-crystalline atomic structure formed through extremely rapid solidification.

This unique structure provides high hardness, excellent corrosion resistance, and outstanding soft magnetic properties.

Typical applications include magnetic components, wear-resistant coatings, precision instruments, and advanced functional materials.

Typical Characteristics

• High hardness
• Excellent corrosion resistance
• Outstanding magnetic performance
• High elastic limit

6.11 Powder Material Selection Guide

Selecting a powder material requires consideration of component performance, manufacturing process, service environment, and overall cost.

Iron-based powders remain the preferred choice for high-volume structural components, while aluminum and titanium alloys are widely used where weight reduction is critical. Nickel- and cobalt-based alloys are selected for high-temperature and wear-resistant applications, whereas copper alloys are preferred for electrical and thermal conductivity. Refractory metals, precious metals, high-entropy alloys, and amorphous alloys are primarily used in specialized applications requiring exceptional material performance.

Material selection should therefore balance mechanical requirements, processing characteristics, application environment, and economic feasibility to achieve the optimum combination of performance and manufacturing efficiency.

7. Powder Quality Control and Testing

Consistent powder quality is essential for stable manufacturing and reliable component performance. Variations in particle size, morphology, chemical composition, or contamination can directly affect powder handling, process stability, and the mechanical properties of finished parts. Effective quality control therefore combines standardized testing with continuous process monitoring to ensure consistent powder characteristics.

7.1 Particle Size Analysis

Particle size distribution (PSD) is one of the most important quality indicators for metal powders because it influences flowability, packing density, melting behavior, and process stability.

Laser diffraction is the most widely used method for determining PSD and is commonly reported using D10, D50, and D90 values. Depending on the application, sieve analysis may also be used for coarser powders.

Typical particle size ranges include:

• LPBF: 10–50 μm
• DED: 45–150 μm
• MIM: typically below 30 μm
• Thermal Spraying: application dependent

Maintaining a consistent PSD improves powder handling and manufacturing repeatability.

7.2 Particle Morphology Analysis

Particle morphology affects powder flow, packing efficiency, and deposition behavior.

Scanning Electron Microscopy (SEM) is widely used to evaluate particle shape, surface condition, satellite particles, porosity, and manufacturing defects. Image analysis can further quantify sphericity and particle aspect ratio.

Highly spherical powders generally provide better flowability and packing density, while irregular powders are commonly used in conventional powder metallurgy.

7.3 Chemical Composition Analysis

Chemical composition must comply with alloy specifications to ensure consistent material performance.

Common analytical methods include:

• Optical Emission Spectroscopy (OES)
• X-ray Fluorescence (XRF)
• Inductively Coupled Plasma Optical Emission Spectroscopy (ICP-OES)
• Inductively Coupled Plasma Mass Spectrometry (ICP-MS)

These techniques verify major alloying elements, trace elements, and impurity levels required for industrial quality control.

7.4 Oxygen, Nitrogen, and Hydrogen Analysis

Interstitial elements significantly influence the mechanical properties of many metal powders, particularly titanium, aluminum, and nickel-based alloys.

Oxygen and nitrogen generally increase strength while reducing ductility, whereas excessive hydrogen may lead to embrittlement and processing defects.

Inert Gas Fusion (IGF) remains the standard method for measuring oxygen, nitrogen, and hydrogen in metallic powders.

7.5 Flowability Testing

Flowability determines how consistently powder moves during storage, transport, and manufacturing.

Common test methods include:

• Hall Flowmeter
• Carney Flowmeter
• Angle of Repose
• Dynamic Powder Flow Testing

Stable flow characteristics are particularly important for additive manufacturing, powder feeding, and automated production systems.

7.6 Density Measurements

Powder density is commonly evaluated using apparent density, tap density, and true density.

Apparent density reflects the natural packing behavior of freely poured powder, while tap density indicates the maximum packing density achieved after mechanical vibration. True density represents the density of the solid material excluding internal and interparticle voids.

Together, these measurements provide valuable information on powder packing, compressibility, and process performance.

7.7 Moisture and Contamination Control

Moisture, oxidation, foreign particles, and cross-contamination can significantly reduce powder quality.

Typical quality control measures include:

• Controlled storage environments
• Inert gas handling
• Moisture monitoring
• Clean powder transfer systems
• Batch traceability

Preventing contamination is particularly important for reactive alloys and powders intended for additive manufacturing.

7.8 Powder Recycling and Reuse Evaluation

Powder recycling has become an important consideration for reducing production costs and improving material utilization.

Repeated reuse may alter particle size distribution, morphology, oxygen content, and flowability. Recycled powder should therefore be evaluated before reuse to verify that it continues to satisfy process requirements.

Common inspection items include:

• Particle size distribution
• Flowability
• Oxygen content
• Chemical composition
• Particle morphology

Appropriate quality verification helps maintain manufacturing consistency while maximizing powder utilization.

7.9 Quality Standards

Metal powder quality is commonly evaluated according to internationally recognized standards.

Representative standards include:

• ASTM B214 — Sieve Analysis
• ASTM B213 — Hall Flow Rate
• ASTM B212 — Apparent Density
• ASTM B527 — Tap Density
• ASTM F3049 — Characterization of Metal Powders for Additive Manufacturing
• ISO 4497 — Particle Size Analysis
• ISO 3923 — Apparent Density

Applying standardized test methods improves data consistency and facilitates quality control across suppliers and manufacturing facilities.

Chapter Summary

Powder quality directly influences manufacturing efficiency, component consistency, and final product performance. Comprehensive quality control extends beyond individual test results by combining particle characterization, chemical analysis, contamination control, and process monitoring into a systematic quality management framework.

As additive manufacturing and high-performance powder applications continue to expand, standardized testing and rigorous quality assurance have become increasingly important for ensuring reliable production and consistent powder performance.

8. Powder Selection Guide

Selecting the appropriate metal powder requires balancing material properties, manufacturing requirements, component performance, and production cost. Powder selection should consider not only alloy composition but also particle characteristics, manufacturing process, application environment, and quality requirements.

This chapter outlines the key factors involved in selecting metal powders for industrial applications.

8.1 Selection Based on Manufacturing Process

Different manufacturing technologies require powders with distinct characteristics.

Selecting powders compatible with the manufacturing process is the first step toward achieving stable production and consistent part quality.

8.2 Selection Based on Material Properties

Material selection depends on the mechanical, thermal, chemical, and functional requirements of the final component.

Material selection should always be based on service conditions rather than alloy cost alone.

8.3 Selection Based on Powder Characteristics

Powder characteristics directly influence manufacturing stability and finished component quality.

Key selection factors include:

• Particle size distribution (PSD)
• Particle morphology
• Flowability
• Apparent density
• Tap density
• Oxygen content
• Chemical composition
• Powder purity

For additive manufacturing, spherical powders with narrow particle size distributions generally provide the most stable processing performance.

8.4 Selection Based on Cost

Powder cost varies considerably depending on material, production method, purity, and particle specifications.

Water-atomized powders generally offer the lowest production cost, while gas-atomized powders provide a balance between quality and cost for most engineering applications. Powders produced by VIGA, EIGA, plasma atomization, and PREP command higher prices because of their superior cleanliness, sphericity, and chemical consistency.

Total manufacturing cost should be evaluated alongside powder quality, production efficiency, material utilization, and component performance rather than purchase price alone.

8.5 Selection Based on Application

Powder requirements differ significantly across industries.

Application requirements ultimately determine the most appropriate combination of material, particle characteristics, and production technology.

8.6 Powder Storage and Handling

Proper storage and handling are essential for maintaining powder quality throughout its service life.

Recommended practices include:

• Store powders in sealed containers.
• Maintain a dry, temperature-controlled environment.
• Minimize exposure to air and moisture.
• Prevent cross-contamination between materials.
• Use inert gas protection for highly reactive powders.
• Record batch information to ensure full traceability.

Effective storage practices help preserve powder consistency and reduce the risk of contamination during production.

8.7 Future Selection Trends

As advanced manufacturing continues to evolve, powder selection is becoming increasingly application-specific.

Future developments are expected to focus on:

• Powders optimized for individual manufacturing processes
• Higher-purity alloys for demanding applications
• Improved consistency through tighter process control
• Recyclable powder systems
• Sustainable production with lower environmental impact

Future powder development will increasingly emphasize application performance, manufacturing efficiency, and lifecycle sustainability.

Chapter Summary

Effective powder selection requires evaluating manufacturing processes, material properties, powder characteristics, application requirements, and economic factors as an integrated system. No single powder is suitable for every application, and optimal performance is achieved by matching powder specifications to both manufacturing requirements and service conditions.

A systematic selection approach improves manufacturing stability, component quality, and overall production efficiency while reducing material waste and process variability.

9. Industrial Applications of Metal Powders

Metal powders are used across a wide range of manufacturing industries, from conventional powder metallurgy to advanced additive manufacturing and surface engineering. Powder characteristics—including particle size distribution, morphology, chemical composition, purity, and flowability—directly influence manufacturing efficiency, component quality, and service performance.

This chapter outlines the major industrial applications of metal powders, the materials commonly used, and the production technologies best suited to each application.

9.1 Laser Cladding

Industry Overview

Laser cladding is an advanced surface engineering technology that deposits metallic powder onto a substrate using a high-energy laser beam. The process restores worn components, enhances surface performance, and extends service life while minimizing material consumption.

Why Metal Powders Are Used

Laser cladding requires powders with stable flowability, controlled particle size distribution, and consistent alloy composition to ensure uniform powder delivery and reliable metallurgical bonding.

Typical Components

• Hydraulic cylinders
• Shafts
• Rollers
• Valve components
• Mining equipment
• Oil and gas components
• Heavy industrial machinery

Recommended Powder Materials

• Nickel-based alloys
• Cobalt-based alloys
• Iron-based alloys
• Stainless steels
• Tool steels
• Copper alloys (special applications)

Recommended Manufacturing Technologies

Gas atomization is the preferred production method because it provides spherical powders with excellent flowability. Water-atomized powders are also used in selected cost-sensitive applications.

Industry Trends

Growing demand for equipment remanufacturing, wear protection, and sustainable manufacturing continues to expand the adoption of laser cladding across heavy industry, energy, mining, and oil & gas.

9.2 Directed Energy Deposition (DED)

Industry Overview

Directed Energy Deposition (DED) is an additive manufacturing process that delivers metal powder directly into a focused energy source to build, repair, or modify metallic components.

Why Metal Powders Are Used

DED requires spherical powders with stable flow characteristics and controlled particle size to maintain consistent powder feeding and deposition quality.

Typical Components

• Aerospace structural parts
• Turbine components
• Molds and dies
• Large industrial components
• Repair and remanufacturing parts

Recommended Powder Materials

• Titanium alloys
• Nickel-based superalloys
• Stainless steels
• Tool steels
• Aluminum alloys

Recommended Manufacturing Technologies

Gas atomization, VIGA, EIGA, and PREP are commonly selected depending on alloy type and powder quality requirements.

Industry Trends

DED continues to gain importance in aerospace, energy, and industrial remanufacturing, driven by increasing demand for large-scale metal additive manufacturing and high-value component repair.

9.3 Laser Powder Bed Fusion (LPBF)

Industry Overview

Laser Powder Bed Fusion (LPBF) selectively melts thin layers of metal powder using a laser to manufacture high-density components with complex geometries and excellent dimensional accuracy.

Why Metal Powders Are Used

LPBF depends on highly spherical powders with narrow particle size distributions, excellent flowability, and low oxygen content to ensure uniform powder spreading and stable melting.

Typical Components

• Aerospace brackets
• Medical implants
• Heat exchangers
• Lattice structures
• Precision tooling

Recommended Powder Materials

• Titanium alloys
• Aluminum alloys
• Stainless steels
• Nickel-based superalloys
• Maraging steels

Recommended Manufacturing Technologies

Gas atomization dominates commercial production, while VIGA, EIGA, plasma atomization, and PREP are selected for demanding aerospace and medical applications.

Industry Trends

LPBF remains one of the fastest-growing additive manufacturing technologies, supported by continued advances in aerospace, medical devices, and high-performance industrial applications.

9.4 Electron Beam Powder Bed Fusion (EB-PBF)

Industry Overview

Electron Beam Powder Bed Fusion (EB-PBF) uses an electron beam under vacuum to selectively melt metal powders for manufacturing high-performance components.

Why Metal Powders Are Used

The process requires spherical powders with controlled particle size, high purity, and low oxygen content to achieve stable processing under vacuum conditions.

Typical Components

• Aerospace engine parts
• Orthopedic implants
• Titanium structural components
• High-temperature components

Recommended Powder Materials

• Titanium alloys
• Nickel-based superalloys
• Cobalt-chromium alloys

Recommended Manufacturing Technologies

EIGA, PREP, plasma atomization, and VIGA are widely used to produce the high-purity powders required for EB-PBF.

Industry Trends

Demand continues to grow in aerospace and medical industries, where high material quality and mechanical performance justify the higher production cost.

9.5 Binder Jetting

Industry Overview

Binder Jetting is an additive manufacturing process that selectively deposits a liquid binder onto successive layers of metal powder to form a green part, which is subsequently densified through debinding and sintering.

Why Metal Powders Are Used

Binder Jetting requires powders with excellent flowability, high packing density, and a controlled particle size distribution to ensure uniform layer deposition, dimensional accuracy, and consistent sintering behavior.

Typical Components

• Complex structural components
• Heat exchangers
• Filters
• Automotive parts
• Industrial tooling
• Consumer products

Recommended Powder Materials

• Stainless steels
• Low-alloy steels
• Tool steels
• Inconel alloys
• Copper alloys

Recommended Manufacturing Technologies

Gas atomization is widely used for high-performance applications, while water-atomized powders are commonly selected for cost-sensitive, high-volume production.

Industry Trends

Continuous improvements in binder formulations, sintering technology, and production efficiency are expanding the adoption of Binder Jetting for medium- to high-volume manufacturing.

9.6 Thermal Spraying

Industry Overview

Thermal spraying applies metal powders onto component surfaces to produce protective coatings that improve wear resistance, corrosion resistance, oxidation resistance, and thermal performance.

Why Metal Powders Are Used

The process requires powders with controlled particle size, stable chemistry, and consistent morphology to ensure efficient deposition and reliable coating quality.

Typical Components

• Turbine blades
• Hydraulic cylinders
• Rolls
• Pump components
• Aerospace parts
• Oil and gas equipment

Recommended Powder Materials

• Nickel-based alloys
• Cobalt-based alloys
• Stainless steels
• MCrAlY alloys
• Tungsten carbide composites

Recommended Manufacturing Technologies

Gas atomization is the primary production method for metallic spray powders, while agglomerated and sintered powders are commonly used for carbide-based coatings.

Industry Trends

Demand continues to grow in aerospace, power generation, heavy industry, and industrial maintenance as manufacturers seek longer component life and reduced maintenance costs.

9.7 Powder Metallurgy (PM)

Industry Overview

Powder Metallurgy (PM) is a mature manufacturing technology that produces components by compacting metal powders followed by sintering under controlled conditions.

Why Metal Powders Are Used

PM relies on powders with good compressibility, consistent particle size, and controlled chemistry to achieve dimensional accuracy, high productivity, and efficient material utilization.

Typical Components

• Gears
• Bearings
• Bushings
• Structural automotive parts
• Industrial machinery components

Recommended Powder Materials

• Iron powders
• Low-alloy steels
• Stainless steels
• Copper alloys

Recommended Manufacturing Technologies

Water atomization and reduction processes remain the dominant production routes due to their cost efficiency and suitability for large-scale manufacturing.

Industry Trends

Powder metallurgy continues to evolve through higher-performance alloys, improved compaction technologies, and increasing demand for lightweight and energy-efficient components.

9.8 Metal Injection Molding (MIM)

Industry Overview

Metal Injection Molding (MIM) combines fine metal powders with polymer binders to manufacture small, complex components with high dimensional accuracy.

Why Metal Powders Are Used

MIM requires fine powders with high purity, excellent packing density, and uniform particle size to ensure homogeneous feedstock preparation and consistent sintering.

Typical Components

• Medical instruments
• Surgical devices
• Consumer electronics
• Firearm components
• Precision mechanical parts

Recommended Powder Materials

• Stainless steels
• Tool steels
• Titanium alloys
• Nickel alloys
• Cobalt-chromium alloys

Recommended Manufacturing Technologies

Gas atomization is the preferred production method because it provides fine spherical powders with excellent packing characteristics.

Industry Trends

Growing demand for miniaturized precision components continues to expand the application of MIM in medical, electronics, and industrial manufacturing.

9.9 Aerospace Industry

Industry Overview

The aerospace industry places some of the highest requirements on powder quality, material performance, and manufacturing consistency. Metal powders are widely used in both additive manufacturing and surface engineering for critical flight components.

Why Metal Powders Are Used

Aerospace applications require powders with high purity, excellent sphericity, low oxygen content, and consistent chemical composition to ensure reliable mechanical performance and process repeatability.

Typical Components

• Turbine blades
• Combustion components
• Structural brackets
• Rocket engine parts
• Landing gear components

Recommended Powder Materials

• Titanium alloys
• Nickel-based superalloys
• Aluminum alloys
• Maraging steels

Recommended Manufacturing Technologies

VIGA, EIGA, PREP, and plasma atomization are widely used to produce aerospace-grade powders that meet stringent quality requirements.

Industry Trends

Increasing aircraft production, space exploration, and lightweight design continue to drive demand for high-performance metal powders in aerospace manufacturing.

9.10 Energy Industry

Industry Overview

The energy industry relies on metal powders for manufacturing and repairing components operating under high temperatures, high pressures, and corrosive environments.

Why Metal Powders Are Used

Energy applications require powders with excellent high-temperature strength, corrosion resistance, and long-term service reliability.

Typical Components

• Gas turbine components
• Steam turbine parts
• Nuclear equipment
• Heat exchangers
• Valve components

Recommended Powder Materials

• Nickel-based superalloys
• Stainless steels
• Cobalt-based alloys
• High-temperature steels

Recommended Manufacturing Technologies

Gas atomization and VIGA dominate the production of powders for high-performance energy applications.

Industry Trends

Global investment in cleaner energy systems, gas turbines, hydrogen infrastructure, and nuclear power is increasing demand for advanced metallic materials and high-quality powders.

9.11 Medical Industry

Industry Overview

The medical industry requires metal powders that meet stringent standards for purity, consistency, and biocompatibility. Powder-based manufacturing technologies enable the production of patient-specific implants, complex medical devices, and high-performance surgical instruments with excellent dimensional accuracy.

Why Metal Powders Are Used

Medical applications require powders with high purity, excellent sphericity, controlled particle size distribution, and low oxygen content to ensure reliable processing, mechanical performance, and long-term biocompatibility.

Typical Components

• Orthopedic implants
• Dental implants
• Spinal cages
• Surgical instruments
• Prosthetic components

Recommended Powder Materials

• Titanium alloys
• Cobalt-chromium alloys
• Stainless steels
• Tantalum

Recommended Manufacturing Technologies

EIGA, PREP, plasma atomization, and VIGA are widely used to produce medical-grade powders with excellent cleanliness and compositional consistency.

Industry Trends

Growing demand for personalized healthcare, aging populations, and advances in additive manufacturing continue to accelerate the adoption of metal powders in medical applications.

9.12 Automotive Industry

Industry Overview

The automotive industry is the largest consumer of metal powders, driven by high-volume production, cost efficiency, and increasing demand for lightweight, high-performance components.

Why Metal Powders Are Used

Metal powders support near-net-shape manufacturing with excellent material utilization, consistent quality, and economical mass production while enabling lightweight designs and improved fuel efficiency.

Typical Components

• Transmission gears
• Synchronizer hubs
• Bearings
• Connecting rods
• Valve guides
• Structural brackets

Recommended Powder Materials

• Iron-based powders
• Low-alloy steels
• Stainless steels
• Aluminum alloys
• Copper alloys

Recommended Manufacturing Technologies

Water atomization dominates conventional powder metallurgy applications, while gas atomization supplies high-quality powders for additive manufacturing and advanced automotive components.

Industry Trends

Vehicle electrification, lightweight engineering, and digital manufacturing are expanding the use of metal powders in electric vehicles, battery systems, and next-generation automotive production.

9.13 Oil & Gas Industry

Industry Overview

Oil and gas equipment operates under extreme conditions involving high pressures, elevated temperatures, corrosion, erosion, and abrasive wear. Metal powders are widely used for both component manufacturing and surface enhancement to improve equipment reliability and service life.

Why Metal Powders Are Used

These applications require powders with excellent wear resistance, corrosion resistance, high-temperature performance, and stable metallurgical properties to withstand harsh operating environments.

Typical Components

• Drill tools
• Pump shafts
• Valve seats
• Impellers
• Downhole tools
• Pressure control components

Recommended Powder Materials

• Nickel-based alloys
• Cobalt-based alloys
• Stainless steels
• Tool steels
• Tungsten carbide composites

Recommended Manufacturing Technologies

Gas atomization and VIGA are commonly used for high-performance alloys, while water atomization remains suitable for selected conventional applications.

Industry Trends

Increasing demand for equipment reliability, longer maintenance intervals, and cost-effective asset management continues to drive the adoption of advanced powder materials and repair technologies throughout the oil and gas industry.

9.14 Mold Repair and Remanufacturing

Industry Overview

Mold repair and remanufacturing have become increasingly important as manufacturers seek to extend tooling life, reduce production costs, and minimize downtime. Metal powders play a key role in restoring worn or damaged mold surfaces while maintaining dimensional accuracy and service performance.

Why Metal Powders Are Used

Repair applications require powders with excellent metallurgical compatibility, stable deposition behavior, and high resistance to wear, thermal fatigue, and corrosion to ensure durable repairs.

Typical Components

• Injection molds
• Die-casting molds
• Stamping dies
• Forging dies
• Extrusion dies
• Precision tooling

Recommended Powder Materials

• Tool steels
• Maraging steels
• Nickel-based alloys
• Cobalt-based alloys
• Stainless steels

Recommended Manufacturing Technologies

Gas atomization is the primary production method for repair powders because of its excellent flowability and consistent powder quality. VIGA is widely used for premium tooling alloys requiring superior cleanliness.

Industry Trends

Growing emphasis on remanufacturing, sustainable production, and lifecycle cost reduction continues to expand the use of metal powders in mold repair and high-value component restoration.

Chapter Summary

Metal powders support a broad spectrum of manufacturing technologies and industrial sectors, ranging from conventional powder metallurgy to advanced additive manufacturing and surface engineering. Although each application has unique material and processing requirements, successful implementation consistently depends on selecting powders with appropriate particle characteristics, chemical composition, and manufacturing quality.

As manufacturing continues to evolve toward higher performance, greater sustainability, and increased digitalization, demand for application-specific powders is expected to grow across aerospace, medical, automotive, energy, oil & gas, tooling, and other advanced industries.

10. Metal Powder Manufacturing Equipment

Modern metal powder production relies on integrated manufacturing systems rather than individual machines. A complete production line combines raw material handling, melting, atomization, powder collection, classification, drying, blending, packaging, quality inspection, and automated process control to ensure consistent powder quality, production efficiency, and operational reliability.

Equipment selection depends on the production technology, alloy system, required powder characteristics, production capacity, and quality specifications.

10.1 Complete Powder Production Line

A complete metal powder production line integrates multiple subsystems into a continuous manufacturing process.

A typical production sequence includes:

1. Raw material feeding
2. Melting
3. Atomization
4. Powder collection
5. Powder classification
6. Drying
7. Blending
8. Packaging
9. Quality inspection
10. Process automation and control

System integration improves production efficiency, product consistency, and operational safety while reducing manual intervention.

10.2 Raw Material Feeding System

The raw material feeding system supplies metallic feedstock to the melting furnace in a controlled and repeatable manner.

Depending on the production process, feed materials may include metal ingots, alloy bars, wire, granules, recycled materials, or pre-alloyed electrodes.

Typical functions include:

• Material storage
• Automatic feeding
• Batch weighing
• Material identification
• Feeding rate control

Accurate feeding improves composition consistency and process stability throughout production.

10.3 Melting System

The melting system produces a homogeneous molten alloy suitable for atomization.

Depending on material requirements, melting may be performed using:

• Vacuum induction melting (VIM)
• Cold crucible induction melting (CCIM)
• Plasma melting
• Electron beam melting
• Skull melting

The melting system determines alloy composition, melt cleanliness, temperature stability, and oxygen control, all of which directly influence final powder quality.

10.4 Atomization System

The atomization system converts molten metal into powder by rapidly disintegrating the molten stream into fine droplets.

Typical atomization technologies include:

• Water atomization
• Gas atomization
• Vacuum induction gas atomization (VIGA)
• Electrode induction gas atomization (EIGA)
• Plasma atomization
• Plasma rotating electrode process (PREP)

Critical process parameters include atomization pressure, melt superheat, gas temperature, nozzle configuration, and gas-to-metal ratio (GMR).

The atomization system is the core unit that determines particle size distribution, morphology, and overall powder quality.

10.5 Powder Collection System

After atomization, powder particles are cooled, separated, and collected under controlled conditions.

Depending on the production process, collection systems may include:

• Cyclone separators
• Collection chambers
• Bag filters
• Vacuum conveying systems
• Inert gas recovery systems

Efficient powder collection minimizes product loss, prevents contamination, and improves production yield.

10.6 Powder Classification System

Powder classification separates particles according to size to satisfy the specifications of different manufacturing processes.

Common equipment includes:

• Vibratory sieves
• Ultrasonic sieving systems
• Air classifiers
• Multi-stage screening systems

Accurate classification improves particle size consistency and maximizes powder utilization.

10.7 Powder Drying System

Drying systems remove residual moisture from powders before storage or packaging.

Typical drying methods include:

• Vacuum drying
• Hot-air drying
• Inert gas drying
• Low-temperature drying

Proper drying reduces oxidation risk, improves storage stability, and maintains powder quality.

10.8 Powder Blending System

Blending systems produce homogeneous powder batches by uniformly mixing powders from different production lots or compositions.

Typical equipment includes:

• Ribbon mixers
• Double-cone mixers
• V-type mixers
• Rotary drum mixers

Uniform blending improves chemical consistency, particle distribution, and batch-to-batch repeatability.

10.9 Powder Packaging System

Packaging systems protect powders from contamination, moisture, and oxidation during storage and transportation.

Typical packaging solutions include:

• Vacuum packaging
• Inert gas packaging
• Moisture-proof sealed containers
• Industrial bulk containers

Proper packaging preserves powder quality throughout storage and logistics.

10.10 Laboratory and Quality Inspection Equipment

Quality inspection equipment verifies that powders meet specification requirements before delivery.

Typical laboratory instruments include:

• Laser particle size analyzers
• Scanning electron microscopes (SEM)
• Oxygen, nitrogen, and hydrogen analyzers
• Optical emission spectrometers (OES)
• Flowability testers
• Density measurement equipment

Integrated quality control ensures consistent powder performance and product reliability.

10.11 Automation and Intelligent Control Systems

Modern powder production lines increasingly rely on automated control systems to improve productivity, consistency, and process traceability.

Typical automation functions include:

• PLC-based process control
• Human-machine interface (HMI)
• Real-time process monitoring
• Automated data acquisition
• Batch traceability
• Alarm and safety management
• Production data recording

Automation minimizes operator intervention while improving manufacturing stability and product consistency.

10.12 Equipment Selection Guide

Selecting powder manufacturing equipment requires balancing production capacity, powder specifications, alloy compatibility, investment cost, and future expansion requirements.

Key selection considerations include:

• Powder production technology
• Material compatibility
• Annual production capacity
• Required particle size range
• Powder quality requirements
• Degree of automation
• Energy consumption
• Maintenance requirements

A well-designed production line should provide stable operation, flexible production capability, and consistent powder quality while supporting future process upgrades and capacity expansion.

Chapter Summary

An efficient metal powder manufacturing facility depends on the integration of reliable equipment throughout the entire production process. From raw material preparation to final packaging, each subsystem contributes to powder quality, manufacturing efficiency, and operational stability.

As demand for high-performance powders continues to increase, manufacturers are placing greater emphasis on automation, intelligent process control, and flexible production systems capable of supporting multiple alloys and advanced powder manufacturing technologies.

11. Economics and Sustainability

Metal powder manufacturing is influenced not only by production technology but also by economic performance, resource efficiency, and environmental sustainability. As advanced manufacturing expands across aerospace, automotive, medical, and energy industries, manufacturers are increasingly balancing powder quality with production cost, material utilization, and environmental impact.

11.1 Production Cost Factors

The cost of metal powder production depends on several interrelated factors, including raw materials, melting technology, atomization process, energy consumption, production scale, and quality requirements.

High-performance powders manufactured by processes such as VIGA, EIGA, plasma atomization, and PREP generally involve higher production costs because of strict atmosphere control, advanced equipment, and tighter quality specifications. In contrast, water atomization provides a cost-effective solution for large-scale production where ultra-high powder quality is not required.

Improving production efficiency, equipment utilization, and process stability remains one of the most effective approaches to reducing manufacturing costs.

11.2 Material Utilization

Efficient material utilization is a major advantage of powder-based manufacturing.

Processes such as powder metallurgy and additive manufacturing consume only the material required to produce the final component, significantly reducing machining waste compared with conventional subtractive manufacturing.

In addition, unused powder from many manufacturing processes can be recovered, reconditioned, and reused following appropriate quality verification, improving material efficiency and reducing production costs.

11.3 Energy Consumption

Energy consumption varies considerably among powder production technologies.

Vacuum melting, plasma processing, and high-purity atomization generally require greater energy input than conventional production methods. However, these technologies also deliver superior powder quality and enable applications with significantly higher added value.

Ongoing improvements in furnace efficiency, process optimization, heat recovery, and intelligent control systems continue to reduce energy consumption across modern powder manufacturing facilities.

11.4 Environmental Considerations

Environmental performance has become an increasingly important aspect of powder manufacturing.

Key environmental initiatives include:

• Improving material utilization
• Increasing powder recycling rates
• Reducing energy consumption
• Recovering process gases
• Controlling industrial emissions
• Optimizing production efficiency

Many manufacturers are also adopting cleaner energy sources and automated production systems to support long-term sustainability objectives.

11.5 Powder Recycling

Powder recycling contributes to both economic and environmental performance.

After appropriate inspection and qualification, recycled powders can often be blended with virgin material or reused in suitable applications without compromising manufacturing quality.

Effective recycling requires continuous monitoring of particle size distribution, morphology, chemical composition, oxygen content, and flowability to ensure consistent production performance.

11.6 Future Sustainable Manufacturing

Future powder manufacturing is expected to emphasize higher efficiency, lower emissions, and greater resource utilization.

Key development directions include:

• Intelligent manufacturing
• Energy-efficient production systems
• Low-carbon manufacturing
• Closed-loop powder recycling
• Digital process control
• Sustainable material management

These developments are expected to improve both manufacturing competitiveness and environmental performance while supporting the growing demand for high-quality metal powders.

Chapter Summary

Economic performance and sustainability have become key considerations in modern metal powder manufacturing. Beyond producing high-quality powders, manufacturers are increasingly focused on improving material utilization, reducing energy consumption, optimizing production efficiency, and minimizing environmental impact.

Future competitiveness will depend on integrating advanced production technologies with intelligent manufacturing, resource-efficient processes, and sustainable operational practices.

12. Future Trends

The metal powder industry continues to evolve alongside advances in additive manufacturing, powder metallurgy, surface engineering, and advanced materials. Future development will be driven by higher powder quality, improved manufacturing efficiency, greater process automation, and increasing demand for application-specific materials.

Rather than relying on a single technological breakthrough, future progress is expected to result from the continuous optimization of materials, production processes, and intelligent manufacturing systems.

12.1 Higher Powder Quality

Demand for metal powders with tighter particle size distributions, higher sphericity, lower oxygen content, and improved chemical consistency will continue to increase.

As manufacturing processes become more demanding, powder quality will play an increasingly important role in improving production stability, component reliability, and overall manufacturing efficiency.

Future developments are expected to focus on reducing powder defects, improving batch consistency, and achieving more precise control over particle characteristics.

12.2 Advanced Powder Manufacturing Technologies

Metal powder production technologies will continue to improve in efficiency, process stability, and material capability.

Gas atomization, VIGA, EIGA, plasma atomization, PREP, and microwave plasma technologies are expected to remain the principal routes for producing high-performance powders, while ongoing equipment improvements will further enhance productivity, yield, and quality consistency.

Emerging technologies are also expected to broaden the range of commercially available alloy systems and specialized powder materials.

12.3 Intelligent Manufacturing

Automation and digital process control are becoming standard features of modern powder production facilities.

Future production lines will increasingly integrate:

• Real-time process monitoring
• Intelligent process optimization
• Automated quality inspection
• Digital production records
• Predictive equipment maintenance

These technologies will improve manufacturing consistency, reduce operator intervention, and strengthen process traceability.

12.4 Sustainable Production

Resource efficiency and environmental performance will continue to influence powder manufacturing.

Future production systems are expected to emphasize:

• Higher material utilization
• Increased powder recycling
• Lower energy consumption
• Improved process efficiency
• Reduced emissions

These developments support both economic competitiveness and long-term sustainable manufacturing.

12.5 New Alloy Development

The continued development of advanced alloys will expand the application of metal powders across high-performance industries.

Growing research is focused on:

• High-entropy alloys (HEAs)
• Advanced titanium alloys
• Nickel-based superalloys
• Aluminum alloys for lightweight structures
• Functionally graded materials
• Composite powders

These materials are expected to provide improved combinations of strength, corrosion resistance, wear resistance, and high-temperature performance.

12.6 Expanding Industrial Applications

As powder production technologies continue to mature, metal powders will be adopted across an increasingly diverse range of industries.

Future growth is expected in:

• Aerospace
• Medical devices
• Energy
• Automotive
• Semiconductor equipment
• Industrial tooling
• Surface engineering
• Repair and remanufacturing

Application-specific powder development will become increasingly important as manufacturing requirements continue to diversify.

Chapter Summary

Future developments in metal powder manufacturing will be driven by continuous improvements in powder quality, production technology, automation, and sustainable manufacturing rather than by any single technological advancement.

Manufacturers capable of combining advanced materials, stable production processes, intelligent quality control, and efficient production systems will be well positioned to meet the growing demand for high-performance powders across modern manufacturing industries.

13. Frequently Asked Questions (FAQ)

13.1 What is metal powder manufacturing?

Metal powder manufacturing is the process of producing metallic powders with controlled particle size, morphology, chemical composition, and microstructure for applications such as powder metallurgy, additive manufacturing, metal injection molding, thermal spraying, and laser cladding.

13.2 What is the most widely used powder production technology?

Atomization is the dominant industrial production method. Water atomization is commonly used for high-volume, cost-sensitive applications, while gas atomization produces high-quality spherical powders for advanced manufacturing.

13.3 Why are spherical powders preferred for additive manufacturing?

Spherical powders provide better flowability, higher packing density, and more uniform powder spreading, resulting in improved process stability and higher component quality.

13.4 What is the difference between water- and gas-atomized powders?

Water atomization generally produces irregular particles with lower production costs, making it suitable for conventional powder metallurgy. Gas atomization produces spherical powders with lower oxygen content and better flowability, making it the preferred choice for additive manufacturing.

13.5 Which materials are most commonly used for metal powders?

Common materials include iron- and steel-based alloys, stainless steels, aluminum alloys, titanium alloys, nickel-based superalloys, cobalt alloys, copper alloys, and refractory metals.

13.6 Why is oxygen content important?

Excessive oxygen can reduce ductility, fatigue resistance, and overall material performance, particularly in reactive alloys such as titanium and aluminum. Maintaining low oxygen content is therefore essential for high-performance applications.

13.7 What particle size is typically used for additive manufacturing?

Particle size depends on the manufacturing process. LPBF typically uses powders between 10–50 μm, DED commonly uses 45–150 μm, while EB-PBF generally employs slightly coarser powders.

13.8 Can metal powders be recycled?

Yes. Many powders can be recycled after appropriate inspection and qualification. Reused powders should be evaluated for particle size distribution, flowability, oxygen content, chemical composition, and contamination before reuse.

13.9 Which production technology provides the highest powder quality?

The answer depends on the alloy system and application. VIGA, EIGA, plasma atomization, and PREP all produce high-quality spherical powders with excellent cleanliness and are widely used for aerospace, medical, and other demanding applications.

13.10 How should metal powders be stored?

Metal powders should be stored in sealed containers under clean, dry conditions. Reactive powders are typically protected with inert gas to minimize oxidation and moisture absorption.

13.11 What industries use metal powders?

Metal powders are widely used in aerospace, automotive, medical devices, energy, oil and gas, tooling, industrial machinery, additive manufacturing, powder metallurgy, thermal spraying, and repair and remanufacturing.

13.12 How do I select the appropriate metal powder?

Powder selection should consider the manufacturing process, material properties, particle size distribution, morphology, purity, application requirements, and overall production cost. The optimal choice is the one that best matches both manufacturing and service requirements.

14. Glossary

Additive Manufacturing (AM)

A manufacturing process that builds three-dimensional metal components layer by layer directly from digital models using metallic powders or wire feedstock.

Apparent Density

The mass per unit volume of freely poured powder, including the voids between individual particles.

Atomization

A powder production process in which a molten metal stream is broken into fine droplets that rapidly solidify into metallic powder.

Binder Jetting

An additive manufacturing process that selectively deposits a liquid binder onto a powder bed, followed by debinding and sintering to produce dense metal components.

D10, D50, D90

Standard particle size distribution parameters representing the particle diameters below which 10%, 50%, and 90% of the particle volume is distributed.

Directed Energy Deposition (DED)

An additive manufacturing process that delivers metal powder or wire into a focused energy source to build, repair, or modify metallic components.

Electron Beam Powder Bed Fusion (EB-PBF)

A powder bed fusion process that selectively melts metal powders using an electron beam under high-vacuum conditions.

Electrode Induction Gas Atomization (EIGA)

A crucible-free atomization process that melts the end of a pre-alloyed electrode using induction heating before atomization with inert gas.

Flowability

The ability of a powder to flow consistently under gravity or external forces during storage, handling, and manufacturing.

Gas Atomization (GA)

An atomization process that uses high-pressure inert gas to produce spherical metal powders with excellent flowability and low oxygen content.

Laser Cladding

A surface engineering process that deposits metallic powder onto a substrate using a focused laser beam to restore or enhance component surfaces.

Laser Powder Bed Fusion (LPBF)

A powder bed fusion process that selectively melts thin layers of metal powder using a laser to produce dense, high-precision components.

Metal Injection Molding (MIM)

A manufacturing process that combines fine metal powders with polymer binders to produce small, complex components through molding and sintering.

Particle Morphology

The shape and surface characteristics of individual powder particles, including sphericity, surface texture, and the presence of satellite particles.

Particle Size Distribution (PSD)

The statistical distribution of particle sizes within a powder batch, typically expressed using D10, D50, and D90 values.

Plasma Atomization (PA)

A powder production process that melts metal wire using plasma torches to produce highly spherical, high-purity powders.

Plasma Rotating Electrode Process (PREP)

A centrifugal atomization process in which a rapidly rotating metal electrode is melted by a plasma arc to generate highly spherical powders.

Powder Metallurgy (PM)

A manufacturing technology that produces metal components by compacting and sintering metallic powders.

Sphericity

The degree to which a powder particle approaches a perfect sphere, influencing flowability, packing density, and manufacturing performance.

Tap Density

The maximum bulk density achieved after mechanically vibrating or tapping a powder sample.

Thermal Spraying

A group of coating processes that deposit molten or semi-molten powder particles onto a substrate to improve surface performance.

Vacuum Induction Gas Atomization (VIGA)

A powder production process that combines vacuum induction melting with inert gas atomization to manufacture high-purity spherical metal powders.

Vacuum Induction Melting (VIM)

A melting process performed under vacuum or an inert atmosphere to produce clean, compositionally uniform molten alloys for advanced powder production.

Water Atomization (WA)

A powder production process that uses high-pressure water jets to atomize molten metal, typically producing irregular particles suitable for powder metallurgy applications.

Chapter Summary

This glossary provides concise definitions of the principal terms used throughout this guide. Standardized terminology promotes consistent communication among engineers, manufacturers, researchers, and end users while supporting the interpretation of technical specifications and industrial documentation.

15. Greenstone Metal Powder Solutions

15.1 Complete Powder Manufacturing Solutions

Greenstone provides integrated metal powder manufacturing solutions covering equipment, process engineering, technical support, and production system integration. Our solutions are designed to support research institutions, powder manufacturers, and industrial users seeking stable, efficient, and scalable powder production.

From laboratory-scale development to industrial production, Greenstone offers complete solutions tailored to different alloy systems, production capacities, and application requirements.

15.2 Powder Manufacturing Equipment

Greenstone supplies complete equipment solutions for modern metal powder production, including:

• Vacuum Induction Gas Atomization (VIGA) Systems
• Electrode Induction Gas Atomization (EIGA) Systems
• Plasma Atomization Systems
• Plasma Rotating Electrode Process (PREP) Systems
• Water Atomization Systems
• Gas Atomization Systems
• Powder Collection Systems
• Powder Classification Systems
• Powder Drying Systems
• Powder Blending Systems
• Powder Packaging Systems
• Laboratory and Quality Inspection Equipment
• Automated Powder Production Lines

Each system is engineered to deliver stable operation, consistent powder quality, and long-term manufacturing reliability.

15.3 Powder Materials

Greenstone supports the production of a broad range of metal powder materials, including:

• Iron-based alloys
• Stainless steels
• Tool steels
• Maraging steels
• Aluminum alloys
• Titanium alloys
• Nickel-based superalloys
• Cobalt-based alloys
• Copper alloys
• Refractory metals
• Customized alloy systems

Powder specifications can be configured according to particle size distribution, morphology, purity, and application requirements.

15.4 Engineering and Technical Support

Successful powder production depends not only on equipment, but also on process expertise and system integration.

Greenstone provides technical support throughout the project lifecycle, including:

• Production line planning
• Equipment configuration
• Process optimization
• Commissioning and training
• Powder production consulting
• Quality control guidance
• After-sales technical support

These services help customers establish stable production processes while improving manufacturing efficiency and product consistency.

15.5 Customized Powder Production Lines

Every powder production project has unique technical and production requirements.

Greenstone develops customized manufacturing solutions based on:

• Alloy system
• Production capacity
• Powder specifications
• Manufacturing technology
• Automation requirements
• Facility layout
• Future expansion plans

Integrated engineering ensures that each production line is configured to achieve the required performance, efficiency, and product quality.

15.6 Global Industrial Applications

Greenstone solutions support customers across a wide range of industries, including:

• Additive Manufacturing
• Powder Metallurgy
• Aerospace
• Medical Devices
• Automotive
• Energy
• Oil & Gas
• Thermal Spraying
• Mold Manufacturing
• Repair and Remanufacturing

Our equipment and engineering solutions are designed to support both research and industrial-scale production.

15.7 Commitment to Innovation

Greenstone is committed to advancing powder manufacturing technologies through continuous engineering development and practical industrial experience.

By combining modern equipment, process optimization, intelligent manufacturing, and technical expertise, we help customers produce high-quality metal powders for advanced manufacturing applications while improving production efficiency, operational reliability, and long-term competitiveness.

Final Conclusion

Metal powders have become an essential foundation of modern manufacturing, supporting technologies ranging from conventional powder metallurgy to advanced additive manufacturing and surface engineering. As materials, production technologies, and industrial applications continue to evolve, demand for high-quality powders and reliable manufacturing systems will continue to grow.

This guide has presented the complete metal powder manufacturing ecosystem, including production technologies, melting processes, material systems, quality control, industrial applications, manufacturing equipment, and future development trends. By understanding the relationships between materials, processes, equipment, and applications, manufacturers can make informed decisions that improve production efficiency, product quality, and long-term competitiveness.

Whether supporting research, pilot production, or full-scale industrial manufacturing, a systematic approach to powder production remains the foundation for consistent quality and sustainable growth.
