Laser shock peening (LSP), also known as laser peening, is an advanced laser surface engineering process used to improve the fatigue resistance, crack resistance and service life of critical metallic components.

Unlike conventional thermal laser processes, laser shock peening does not primarily rely on melting or heat treatment. Instead, a high-energy, short-pulse laser interacts with the surface of a workpiece to generate a high-pressure plasma and an intense shock wave. When the resulting stress exceeds the dynamic yield strength of the material, plastic deformation occurs in the surface and subsurface layers.

After the shock wave has passed, the surrounding elastic material constrains the plastically deformed region, producing beneficial residual compressive stress.

This ability to introduce relatively deep compressive residual stress makes LSP particularly attractive for fatigue-critical components used in aerospace, gas turbines, power generation and other demanding industrial applications.

What Is Laser Shock Peening?

Laser shock peening is a mechanical surface strengthening process driven by high-energy pulsed laser radiation.

The primary objective of LSP is not to remove material or form a deposited coating. Its purpose is to modify the mechanical stress state and microstructural response of a metallic component by introducing controlled plastic deformation through laser-induced shock waves.

A typical LSP process uses nanosecond-scale laser pulses with high peak power density. The workpiece surface may be covered by an ablative layer, such as black paint or tape, and a transparent confinement layer, commonly water.

When the laser pulse reaches the ablative layer, rapid vaporization and ionization produce a high-temperature, high-pressure plasma. The transparent confinement layer restricts plasma expansion away from the surface, increasing the pressure applied to the workpiece.

The resulting shock wave propagates into the metallic material.

If the shock pressure is sufficiently high, the material experiences plastic deformation. After unloading, a residual compressive stress field remains in the treated region.

For this reason, laser shock peening is frequently used as a fatigue enhancement and surface integrity improvement technology for high-value engineering components.

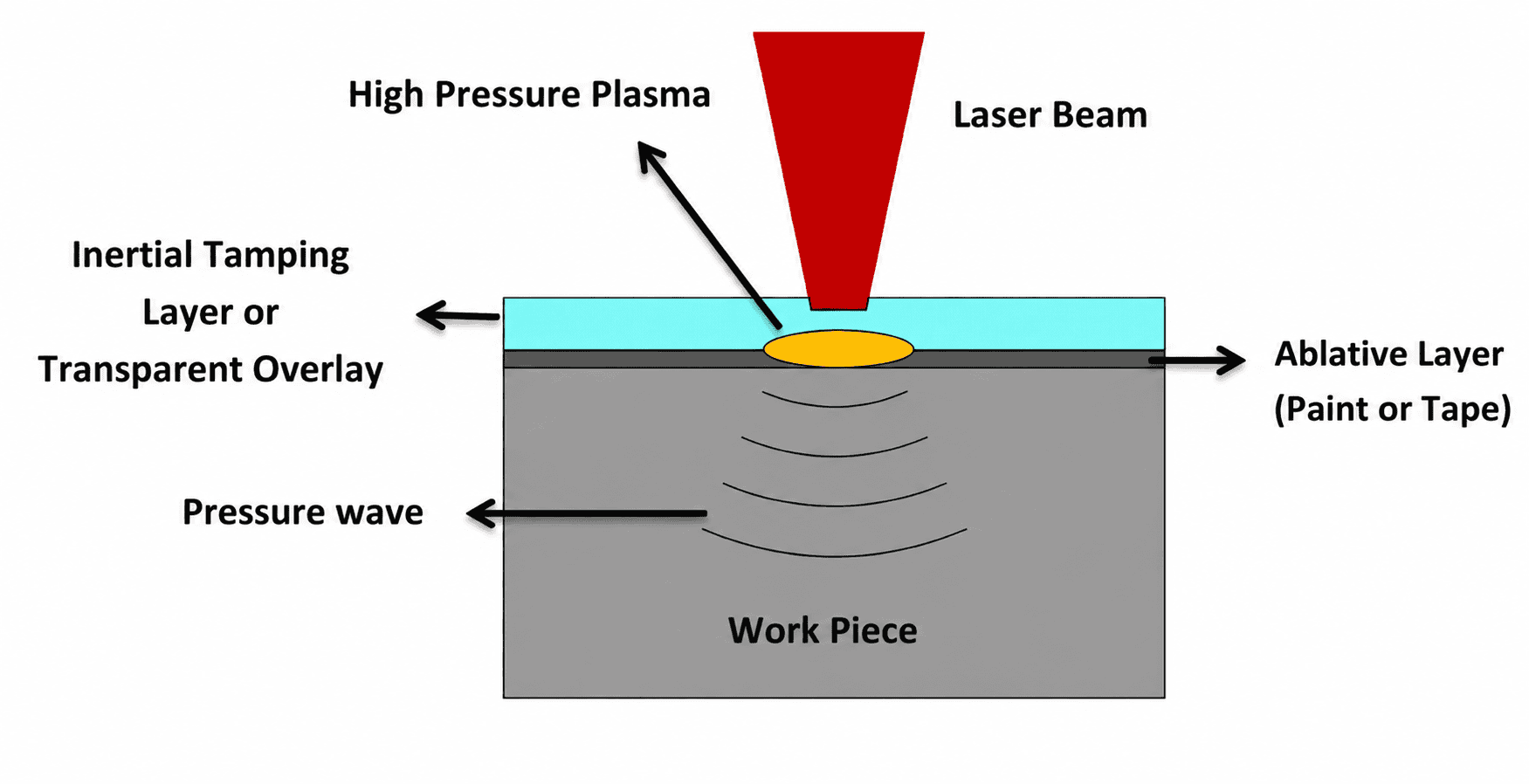

How Laser Shock Peening Works

The laser shock peening process can be divided into several fundamental stages.

1. High-Energy Laser Pulse Irradiation

A short-duration, high-energy laser pulse is focused onto the selected processing area.

LSP typically operates with very high instantaneous power density. Because the pulse duration is extremely short, the interaction produces a rapid mechanical loading event rather than conventional bulk thermal processing.

2. Plasma Generation

The laser energy is absorbed by the surface or sacrificial ablative layer.

Rapid vaporization and ionization create a high-pressure plasma at the laser interaction zone.

The ablative layer also helps reduce direct thermal effects and protects the underlying component surface during processing.

3. Plasma Confinement

A transparent confinement layer is positioned above the processing surface.

Water is widely used because it allows the laser beam to reach the target while restricting the rapid expansion of the laser-induced plasma.

This confinement effect increases plasma pressure and enhances the mechanical shock transmitted into the workpiece.

4. Shock Wave Propagation

The rapid expansion of the confined plasma generates a high-amplitude pressure wave.

This shock wave propagates from the surface into the metallic component.

When the shock pressure exceeds the material’s dynamic yield strength, localized plastic deformation occurs.

5. Formation of Residual Compressive Stress

After the shock loading event, the elastically deformed surrounding material attempts to recover.

However, the shock-affected region has already undergone plastic deformation.

The interaction between the plastically deformed layer and the surrounding elastic material creates a residual compressive stress field.

This residual stress state is one of the most important engineering results of the laser shock peening process.

Residual Compressive Stress and Fatigue Life

Fatigue failure is a major concern for components subjected to cyclic mechanical loading.

In many metallic components, fatigue cracks initiate at or near the surface, particularly around geometric discontinuities, machining marks, foreign object damage, stress concentration zones or other local defects.

Tensile stress promotes crack opening and propagation.

Residual compressive stress acts in the opposite direction.

By introducing compressive stress into the surface and subsurface regions, laser shock peening can reduce the effective tensile stress experienced during cyclic loading. This makes crack initiation more difficult and can slow the propagation of existing small fatigue cracks.

The engineering benefits may include:

• Improved high-cycle fatigue resistance
• Increased resistance to fatigue crack initiation
• Reduced fatigue crack growth rate
• Improved resistance to foreign object damage
• Enhanced fretting fatigue performance
• Extended service life of fatigue-critical components

One important characteristic of LSP is the depth of the induced compressive residual stress field.

Compared with many conventional surface mechanical treatments, laser shock peening can influence deeper subsurface regions under properly designed processing conditions.

However, the final residual stress distribution is not determined by laser energy alone.

Important processing variables include:

• Laser pulse energy
• Pulse width
• Laser power density
• Spot size and geometry
• Spot overlap ratio
• Number of impacts
• Processing sequence
• Confinement conditions
• Ablative layer characteristics
• Material properties
• Component geometry
• Initial residual stress state

For industrial applications, LSP is therefore a process engineering problem rather than simply a high-energy laser irradiation process.

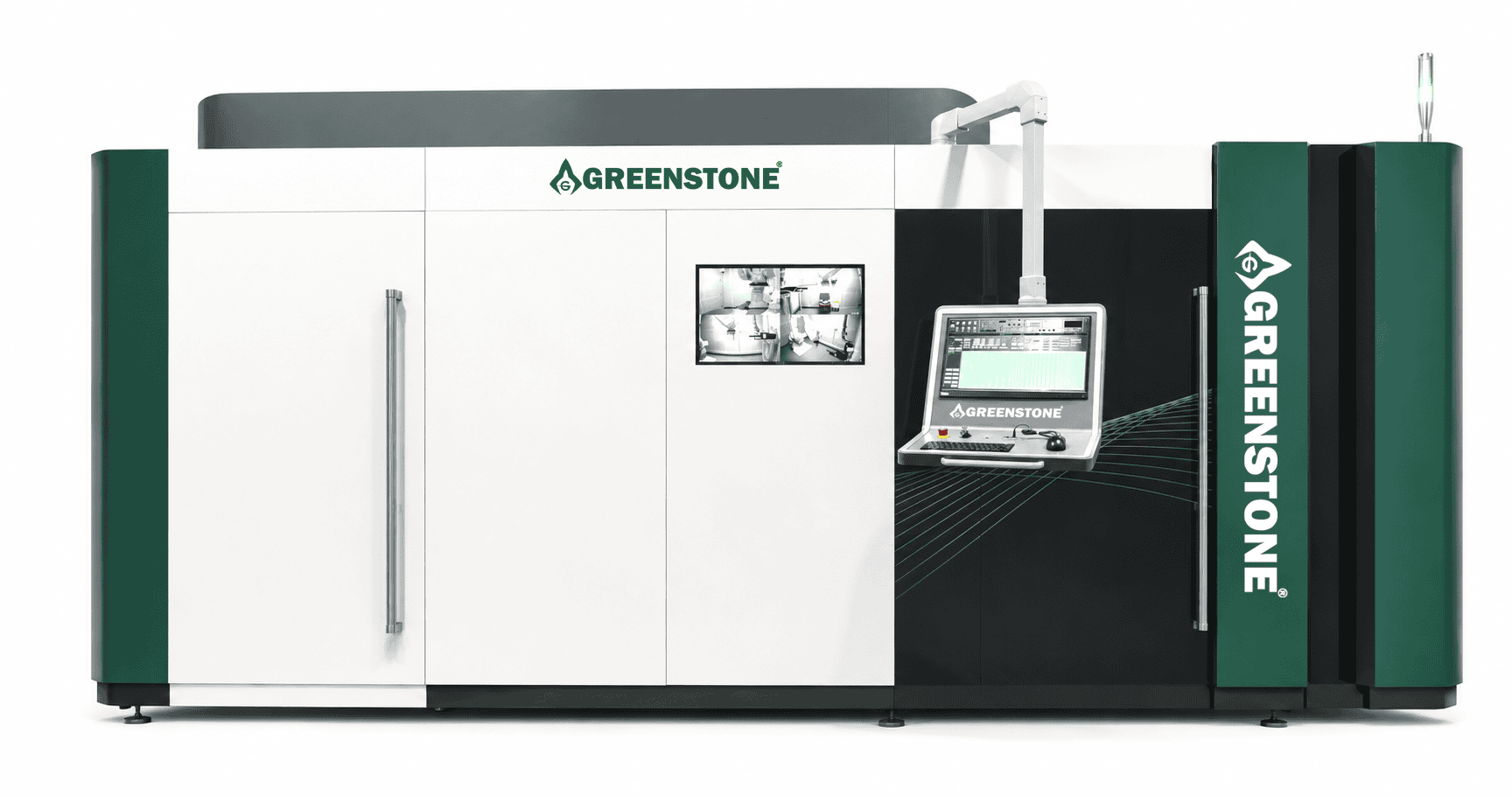

Laser Shock Peening Equipment and System Configuration

A complete laser shock peening equipment system integrates high-energy pulsed laser technology, motion control, process monitoring and surface treatment engineering.

A typical LSP system may include the following major subsystems.

High-Energy Pulsed Laser Source

The laser source is the core energy system of LSP equipment.

It must generate short-duration pulses with sufficient pulse energy and peak power density to create the required plasma pressure and shock loading conditions.

Laser parameters must be matched to the target material, component geometry and required strengthening depth.

Laser Beam Delivery and Optical System

The optical system directs and conditions the laser beam before it reaches the workpiece.

Depending on the system design, it may include:

• Beam expansion optics
• Beam shaping components
• Reflective optical elements
• Focusing optics
• Beam homogenization systems
• Laser spot control modules

Stable laser energy distribution is important for repeatable industrial processing.

Confinement Layer Delivery System

Water is commonly used as a transparent confinement medium.

The LSP equipment must maintain appropriate confinement conditions in the processing area while allowing stable laser transmission.

The design of the water delivery system can influence plasma confinement and process consistency.

Ablative Layer or Surface Protection System

Depending on the selected LSP process, a sacrificial surface layer may be applied to the workpiece.

Black paint, tape or other absorptive materials can be used as an ablative layer.

The selection and application of this layer must be compatible with the component geometry and production process.

Multi-Axis Motion System

Industrial LSP equipment often processes complex three-dimensional components.

Robotic systems, CNC motion platforms or multi-axis positioning systems can be used to control the relative movement between the laser beam and the workpiece.

For turbine blades and other freeform components, accurate trajectory control is particularly important.

Process Control Software

The control system coordinates laser parameters and motion trajectories.

Process variables may include:

• Pulse energy
• Pulse repetition frequency
• Laser spot size
• Spot overlap
• Number of impacts
• Scanning path
• Processing sequence

For complex components, digital process planning and automated trajectory execution improve process repeatability.

Monitoring and Safety System

High-energy pulsed laser systems require integrated industrial safety measures.

Equipment may incorporate:

• Enclosed processing chambers
• Laser safety interlocks
• Process monitoring cameras
• Equipment status monitoring
• Water system monitoring
• Motion system protection
• Emergency stop systems

The final LSP equipment configuration should be designed according to the target component, required production rate and process qualification requirements.

LSP vs. Conventional Shot Peening

Both laser shock peening and conventional shot peening are surface strengthening processes designed to introduce residual compressive stress.

However, their energy delivery mechanisms are fundamentally different.

Conventional shot peening remains a mature, efficient and cost-effective technology for many industrial components.

Laser shock peening should not be viewed as a universal replacement for shot peening.

Its value is greatest when deeper compressive residual stress, high fatigue performance, controlled treatment areas or high-value component protection justify the use of an advanced laser process.

For aerospace and turbine applications, these advantages can be particularly important.

Materials Suitable for Laser Shock Peening

Laser shock peening can be applied to a range of metallic engineering materials.

Typical material categories include:

Titanium Alloys

Titanium alloys are extensively used in aerospace because of their high specific strength and corrosion resistance.

LSP has been investigated and applied to titanium alloy components where fatigue resistance and foreign object damage tolerance are critical.

Nickel-Based Superalloys

Nickel-based superalloys are widely used in gas turbines and aero-engines.

Their high-temperature mechanical properties make them suitable for turbine applications, while the severe cyclic loading environment creates significant fatigue engineering challenges.

Laser shock peening can be used as part of a surface integrity improvement strategy for selected superalloy components.

Aluminum Alloys

High-strength aluminum alloys are commonly used in aerospace structures.

LSP can improve the fatigue performance of selected aluminum alloy components by modifying the near-surface residual stress state.

Stainless Steels

Stainless steel components used in energy, marine and industrial environments may benefit from LSP when fatigue, stress concentration and surface mechanical performance are important.

High-Strength Steels

Gears, shafts, transmission components and other high-strength steel parts can be potential LSP applications, particularly where cyclic loading limits component life.

The suitability of LSP must always be evaluated according to material properties, heat treatment condition, component geometry and the required mechanical performance.

Aerospace and Turbine Blade Applications

Aerospace is one of the most important application fields for laser shock peening technology.

Aero-engine and gas turbine components operate under complex combinations of:

• High rotational speed
• Cyclic mechanical loading
• Vibration
• Elevated temperatures
• Foreign object impact
• Stress concentration
• Fretting contact

These operating conditions make fatigue resistance a critical design consideration.

Aero-Engine Fan and Compressor Blades

Fan and compressor blades may experience foreign object damage during operation.

Small dents or surface defects can create local stress concentration zones and become fatigue crack initiation sites.

Laser shock peening can be applied to selected blade regions to introduce compressive residual stress and improve fatigue resistance.

Gas Turbine Blades

Gas turbine blade applications require precise control of component integrity.

LSP processing can be integrated into a strengthening strategy for selected blade surfaces and fatigue-sensitive areas.

For complex blade geometries, multi-axis motion control is required to maintain appropriate laser incidence, spot distribution and processing coverage.

Blade Edge and Critical Zone Strengthening

The leading edge, transition areas and other stress-sensitive regions can be selectively processed.

Unlike full-surface treatment strategies, programmable LSP equipment can target specific engineering zones according to component stress analysis and process requirements.

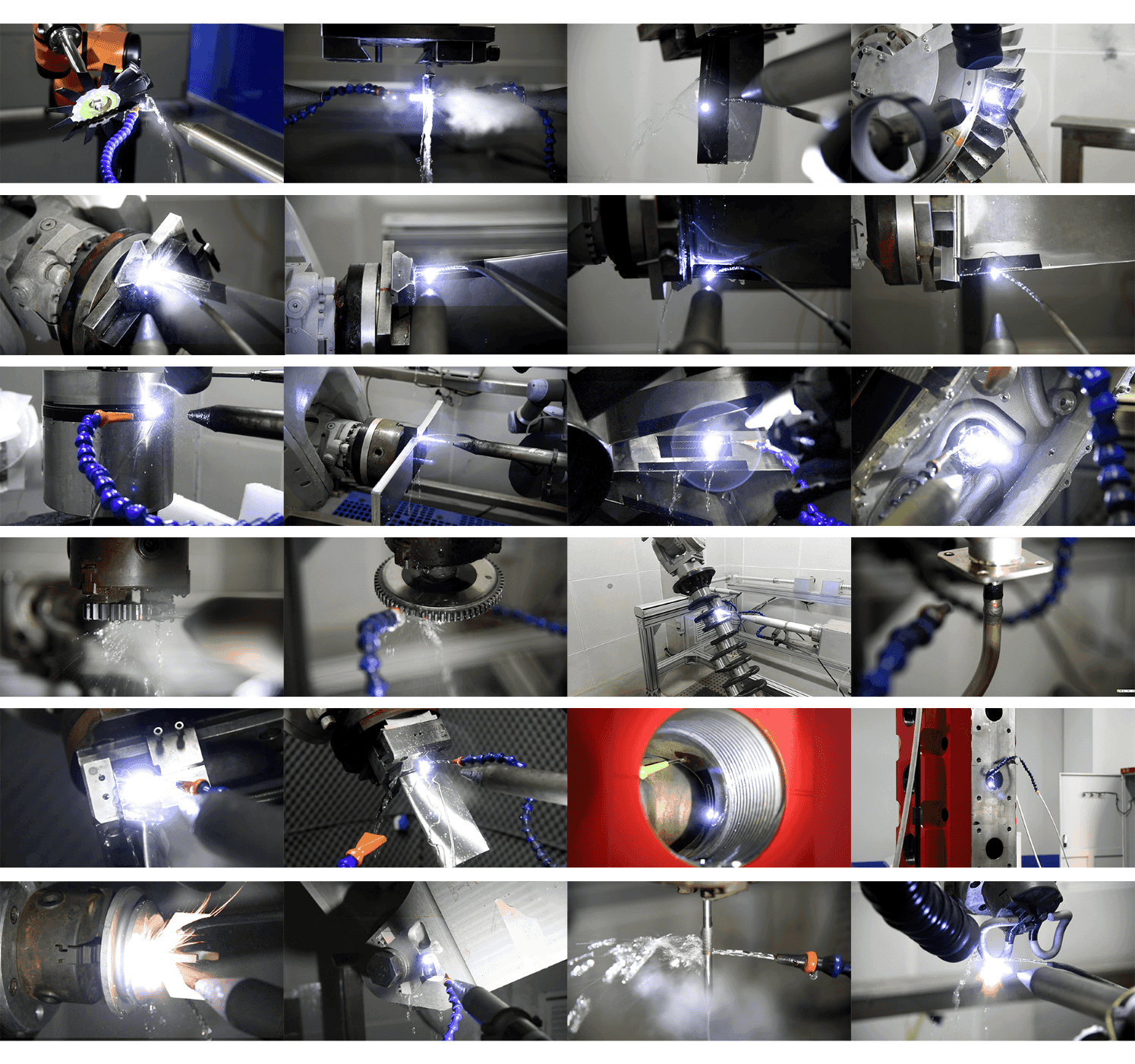

Industrial Applications of LSP

Although aerospace remains a major application field, laser shock peening has broader potential in high-value industrial components.

Power Generation

Gas turbines, steam turbines and other power generation equipment contain components subjected to cyclic loading and demanding service conditions.

Potential LSP applications include turbine blades and other fatigue-critical metallic parts.

Marine and Shipbuilding

Marine propulsion and mechanical systems operate under cyclic loading, vibration and corrosive environments.

Laser shock peening may be considered for selected high-value components requiring enhanced fatigue resistance.

Rail Transportation

Axles, wheel-related components, rails and other cyclically loaded railway parts are potential areas for advanced residual stress engineering.

Application feasibility depends on component economics, production efficiency and required strengthening performance.

Petrochemical and Energy Equipment

Pipelines, pressure-related components and critical mechanical parts may experience cyclic loading and localized stress concentration.

LSP can be evaluated for specific fatigue-sensitive applications where conventional strengthening technologies are insufficient.

High-Performance Mechanical Components

Shafts, gears and precision mechanical components may benefit from controlled surface strengthening when fatigue life is a major performance limitation.

Medical Metallic Components

Advanced metallic implants and medical engineering components represent another research and application area for surface mechanical modification technologies.

However, medical applications require dedicated material, surface integrity and regulatory validation.

The industrial value of LSP is therefore concentrated primarily in components where failure cost is high and fatigue performance directly affects operational reliability.

Development of Laser Shock Peening Technology

The technological foundation of laser shock processing emerged alongside the development of high-energy pulsed lasers.

Early research demonstrated that laser-induced plasma could generate high-amplitude pressure waves capable of modifying metallic materials.

During the 1970s, systematic research into laser shock processing began to establish its potential as a metal strengthening technology.

Subsequent development focused on understanding:

• Laser-induced plasma behavior
• Shock wave propagation
• Dynamic plastic deformation
• Residual stress formation
• Fatigue performance
• Surface integrity

As high-energy pulsed laser systems, optical technologies and automated control systems improved, LSP gradually moved from laboratory research toward industrial implementation.

Aerospace applications became a major driver of industrial development because fatigue-critical engine components could justify the cost and complexity of advanced laser strengthening processes.

Modern LSP technology increasingly combines:

• High-energy pulsed laser systems
• Automated multi-axis motion
• Robotic processing
• Digital trajectory planning
• Process parameter control
• Residual stress characterization
• Component-specific process development

The technology is evolving from a laser-based experimental method into an integrated surface engineering process for high-performance manufacturing.

Laser Shock Peening as an Advanced Laser Surface Engineering Process

Laser shock peening represents a different technical direction from laser cladding, laser hardening and laser additive manufacturing.

Laser cladding modifies a component by depositing a new material layer.

Laser hardening uses controlled thermal cycles to modify the microstructure and hardness of suitable materials.

Laser directed energy deposition builds or repairs metallic structures through material addition and localized melting.

Laser shock peening, in contrast, uses laser-generated mechanical shock loading to modify the residual stress state and mechanical response of the material.

Its fundamental value lies in residual stress engineering.

For fatigue-critical components, the internal stress state of the material can be as important as surface hardness or chemical composition.

By introducing controlled compressive residual stress into selected regions, LSP provides another engineering approach to extending component life and improving fatigue performance.

However, successful industrial implementation requires more than a high-energy laser source.

Material behavior, shock pressure, laser parameters, spot overlap, component geometry, processing sequence and residual stress distribution must be considered as an integrated process system.

For this reason, laser shock peening is best understood as an advanced laser surface engineering technology rather than simply a laser treatment process.

Greenstone continues to explore advanced industrial laser technologies and surface engineering processes for high-value metallic components. Our technical scope focuses on the interaction between laser energy, materials, manufacturing processes and component performance.

For laser shock peening equipment, LSP process development or advanced laser surface engineering applications, contact Greenstone to discuss your component, material and technical requirements.

Greenstone Laser Shock Peening Equipment and System Solutions

Greenstone provides a comprehensive range of laser shock peening (LSP) equipment, laser shock peening machines and integrated LSP systems for industrial production, process development, research and on-site strengthening applications. Our equipment portfolio covers large-scale industrial LSP systems, compact laser shock peening equipment, collimated-beam and focused-beam LSP systems, high-frequency laser shock peening machines, and mobile laser shock peening equipment.

Our large-scale industrial laser shock peening equipment can achieve a laser shock intensity of ≥0.45C (Almen C arc height ≥0.45 mm) and is available with 10 J, 15 J or 20 J pulse energy configurations. The system operates at a 1064 nm wavelength, with a maximum processing frequency of 5 Hz, a pulse width of 10–20 ns, and a processing positioning accuracy of <0.10 mm. The deionized water system provides a resistivity of ≥15 MΩ·cm, while the system is designed for a mean time between failures (MTBF) of 180 days.

For compact LSP applications, Greenstone offers collimated-beam laser shock peening equipment with a laser shock intensity of ≥0.45C (Almen C arc height ≥0.45 mm), 5 J pulse energy, a 1064 nm laser wavelength, a pulse width of 8–12 ns, and a maximum processing frequency of 5 Hz. The integrated deionized water system provides a resistivity of ≥15 MΩ·cm, with a designed MTBF of 180 days.

Greenstone also provides focused-beam high-frequency laser shock peening equipment for precision and localized surface strengthening. This system achieves a laser shock intensity of ≥0.30A (Almen A arc height ≥0.30 mm) and uses 100 mJ pulse energy at a 532 nm wavelength. With a pulse width of 6–10 ns and a processing frequency of up to 500 Hz, the system is suitable for high-frequency, precision laser shock processing. The deionized water resistivity is ≥15 MΩ·cm, and the equipment is designed with an MTBF of 180 days.

For large components and applications where the workpiece cannot be easily transported, Greenstone can configure mobile laser shock peening equipment and on-site LSP processing systems. Mobile platforms, high-energy pulsed laser sources, motion systems and auxiliary processing units can be integrated according to component geometry and field operating requirements.

From aero-engine blades, gas turbine blades and fatigue-critical aerospace components to industrial test specimens and high-value metallic parts, Greenstone develops configurable laser shock peening equipment and LSP process solutions according to the required material, component geometry, pulse energy, processing frequency, motion accuracy and target residual compressive stress performance.

Greenstone has extensive experience in the failure analysis of metallic components and provides application-specific engineering solutions for critical industrial challenges. Focusing on bottleneck requirements for key components in the equipment manufacturing industry, we conduct experimental studies of component materials and structures before developing tailored laser shock peening processes and strengthening strategies. Through controlled LSP treatment and application-specific process parameters, critical surfaces can be strengthened to improve fatigue resistance, enhance component durability, and extend service life. Our objective is not simply to provide laser processing equipment, but to understand the failure mechanisms of critical components and develop effective surface engineering solutions that improve their long-term performance and operational reliability.
