Project Overview

This project represents one of multiple GREENSTONE successfully delivered DED additive manufacturing solutions for advanced metallic materials and complex component manufacturing.

For this particular customer project, GREENSTONE delivered a coaxial powder-fed laser Directed Energy Deposition (DED) system and corresponding process solution for copper and copper-alloy additive manufacturing. The objective was to establish a stable platform capable of depositing high-thermal-conductivity copper materials and producing three-dimensional features and complex components through controlled layer-by-layer deposition.

Copper is substantially more challenging to process by conventional infrared laser systems than many steels and nickel-based alloys. Its combination of high optical reflectivity and very high thermal conductivity makes stable melt-pool formation and thermal management particularly demanding.

The successful delivery of this project is one example of GREENSTONE’s broader experience in customized powder-fed DED systems rather than a single isolated application.

Customer Challenge: Laser Additive Manufacturing of Copper

Copper and copper alloys are important functional materials wherever thermal or electrical performance is required. However, the same properties that make copper valuable in service also complicate laser additive manufacturing.

With commonly used near-infrared laser wavelengths, copper—particularly at lower temperatures—can absorb significantly less incident laser energy than many conventional engineering alloys. At the same time, heat is rapidly conducted away from the interaction zone.

Without an appropriately developed process window, this combination can lead to:

• Unstable melt-pool behavior
• Insufficient fusion between deposited tracks or layers
• Porosity and irregular deposition geometry
• Excessive thermal gradients and distortion
• Inconsistent deposition during multi-layer builds

For this reason, successful copper DED depends on the complete interaction between laser energy, powder delivery, material condition, deposition strategy and thermal management, rather than simply increasing laser power.

GREENSTONE Coaxial Powder-Fed DED Solution

GREENSTONE developed the delivered system around a coaxial powder-fed laser DED architecture.

During deposition, copper or copper-alloy powder is delivered concentrically toward the laser interaction zone. The laser generates a localized melt pool while the powder is introduced continuously into the processing area. Coordinated motion then produces individual tracks, overlapping layers and ultimately three-dimensional metallic structures.

For copper processing, GREENSTONE optimizes critical variables including:

laser power, spot characteristics, travel speed, powder feed rate, powder-stream convergence, track overlap, layer increment, shielding conditions and thermal strategy.

The objective is to maintain sufficient and stable energy coupling while controlling heat accumulation as the component grows.

This coordinated process control enables the system to move beyond simple surface coating and perform true three-dimensional material deposition.

Actual Copper and Copper-Alloy Deposition

During project implementation, GREENSTONE carried out actual deposition trials and process verification using copper-based materials before completing delivery.

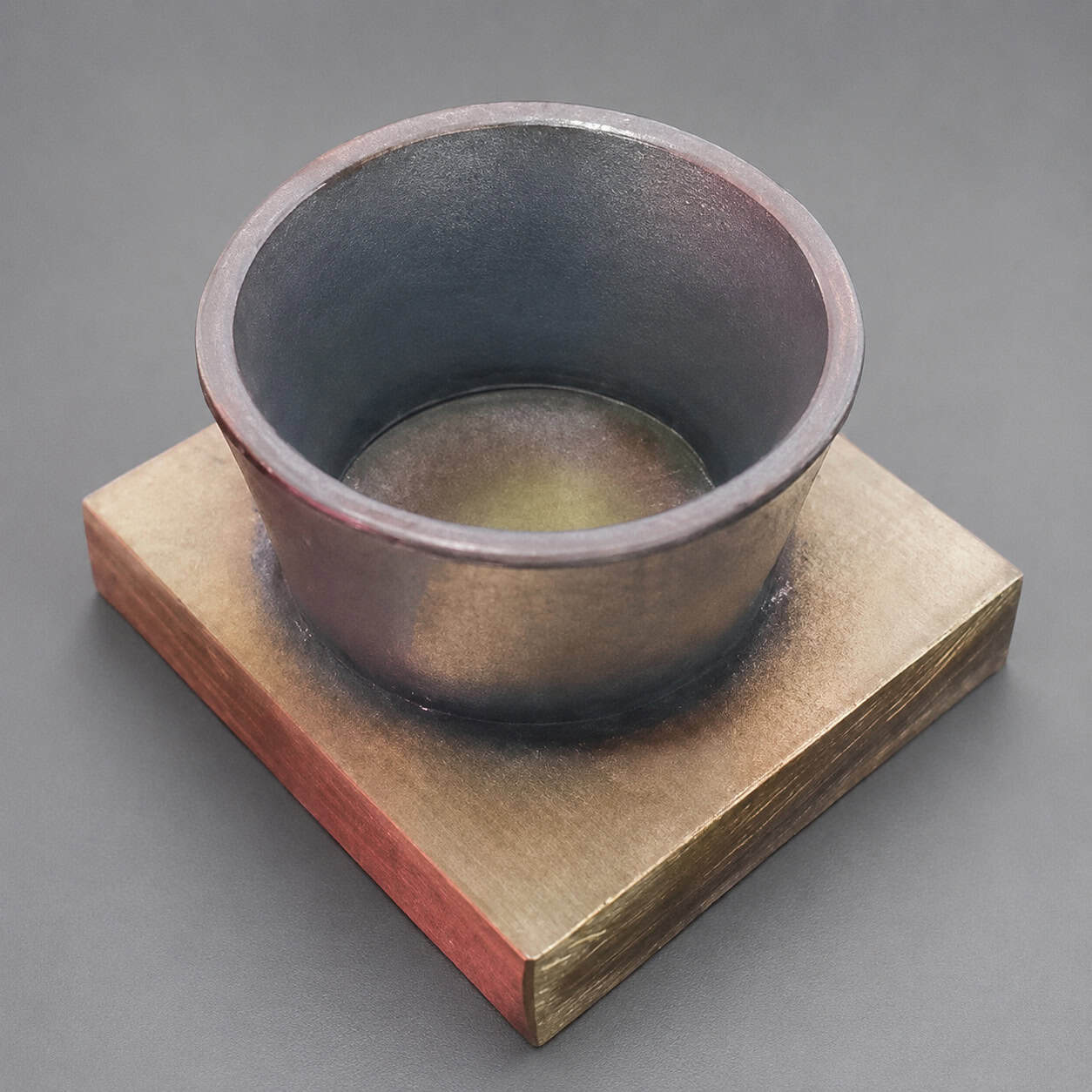

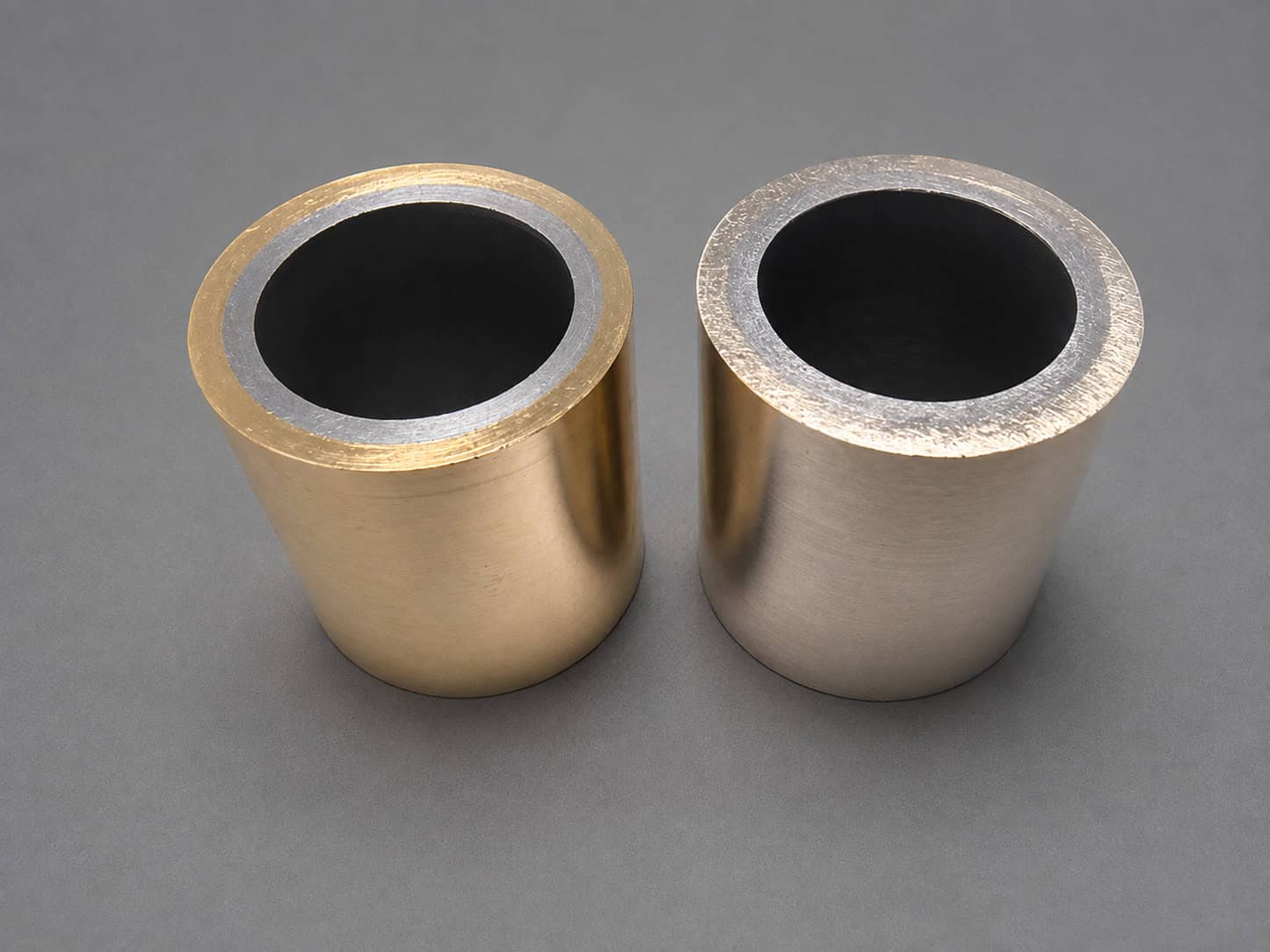

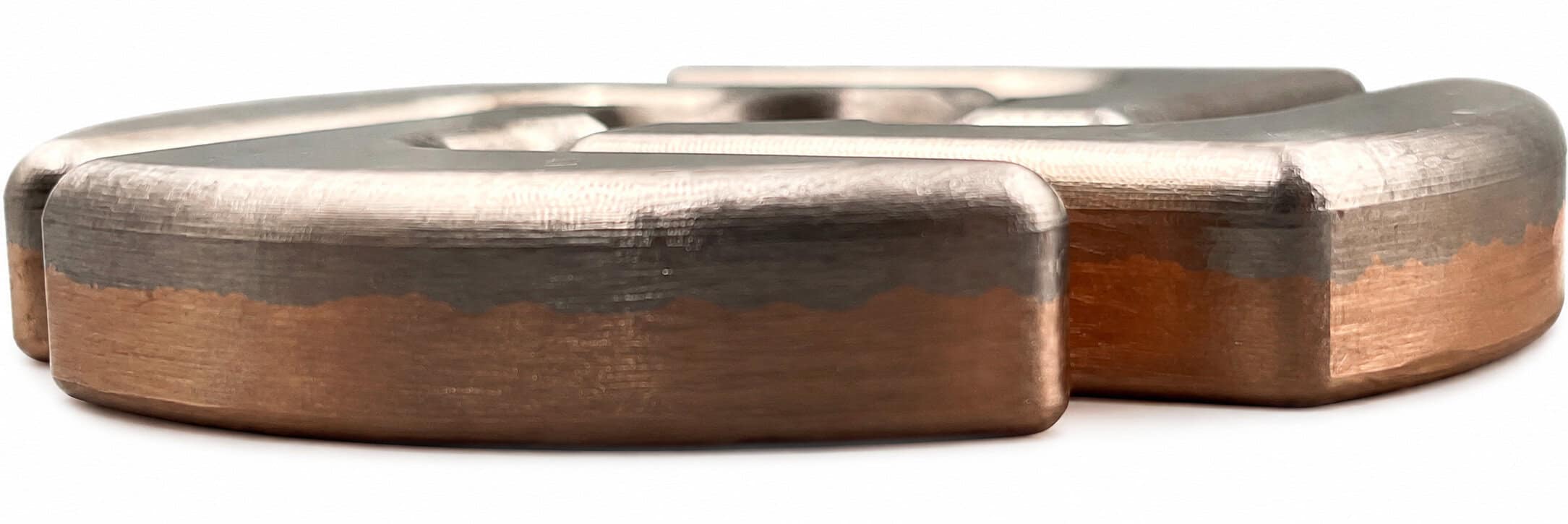

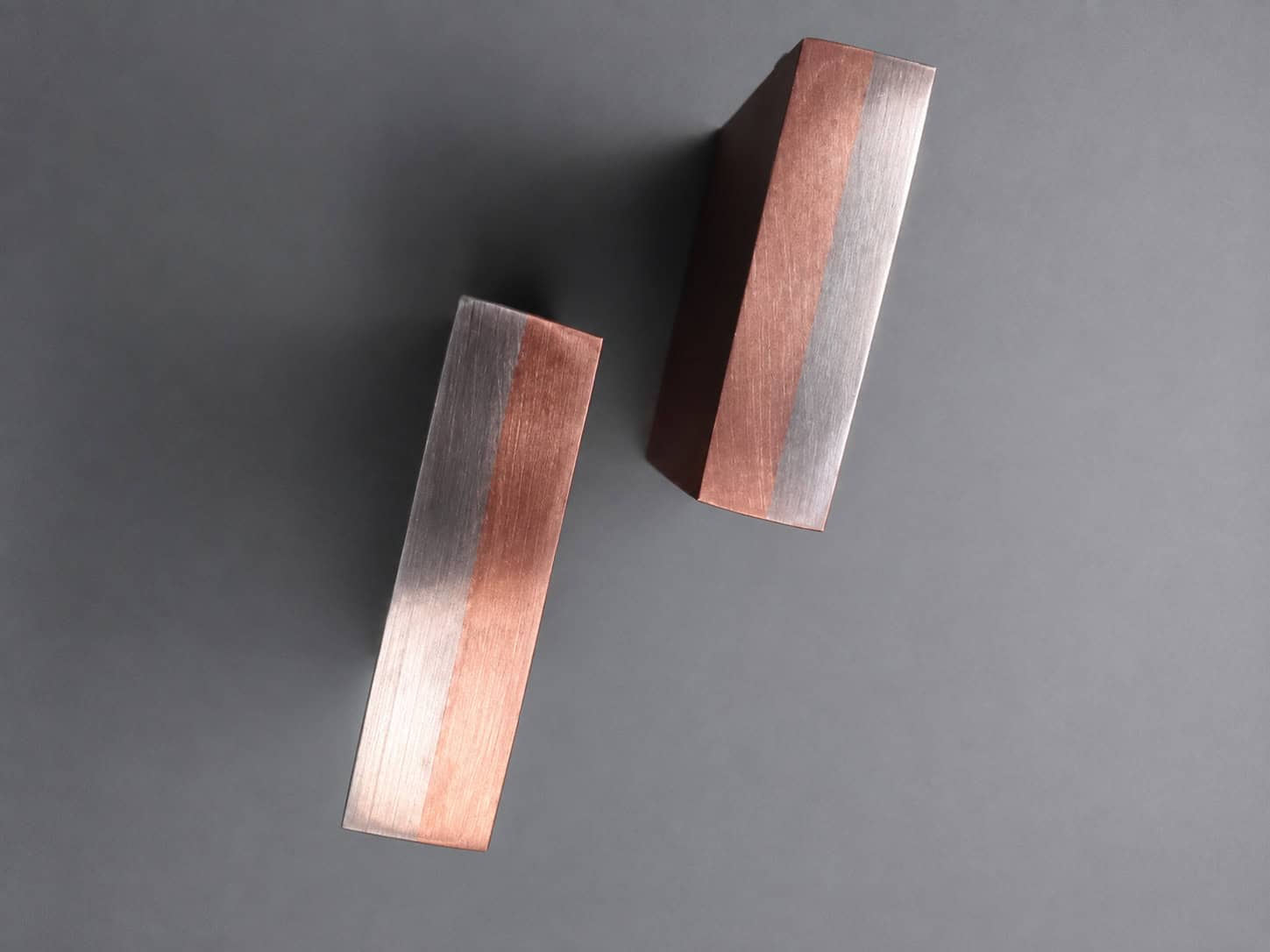

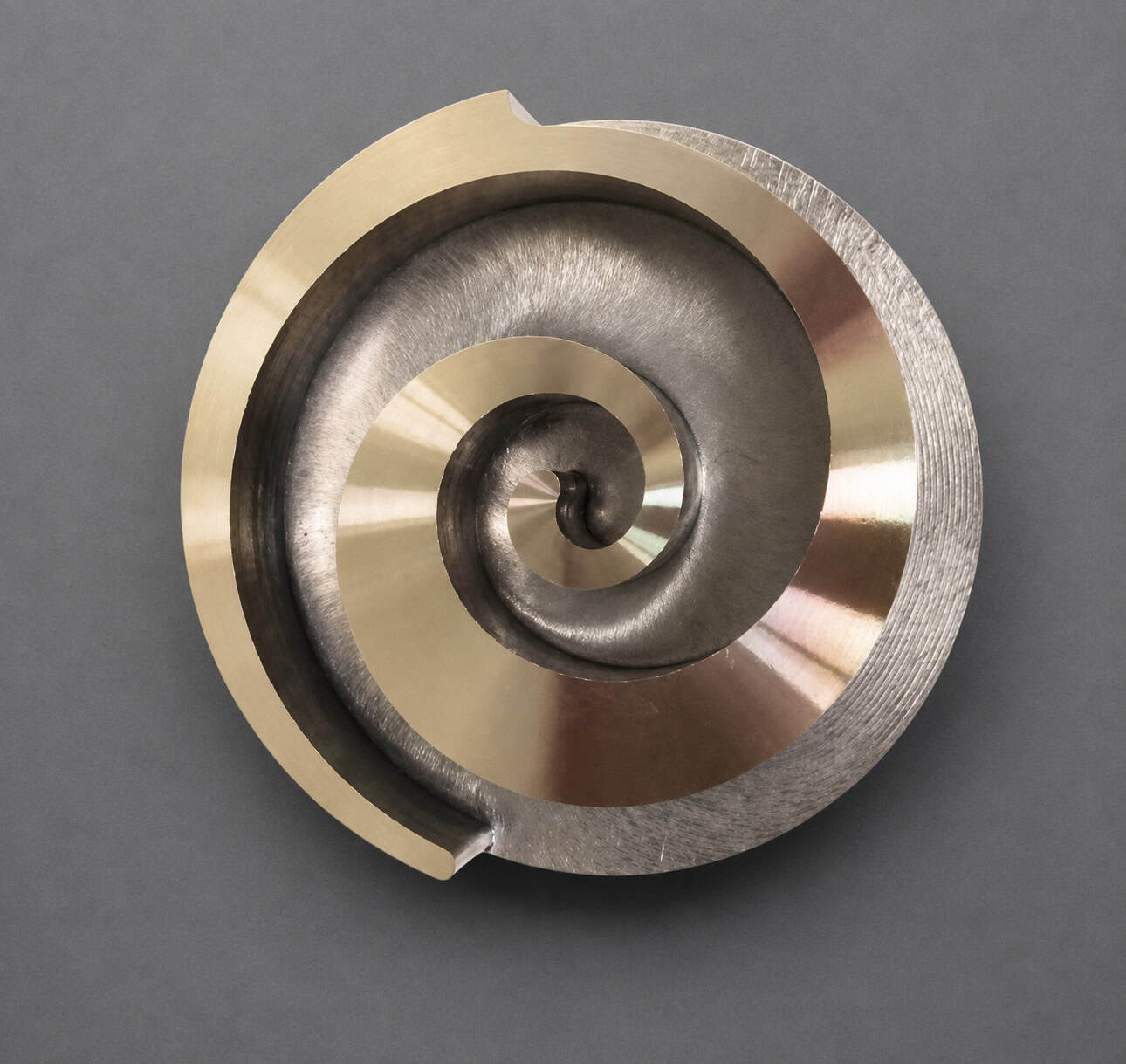

The system successfully demonstrated stable multi-track and multi-layer deposition, including the fabrication of walls, cylindrical features, blocks and other representative three-dimensional geometries.

These trials verified the interaction between the coaxial powder delivery system, laser processing head, motion platform and process parameters under actual copper-alloy deposition conditions.

Depending on the specific application and material properties required, the platform can be developed for pure copper and selected engineering copper alloys such as CuCrZr and other copper-based materials. Each alloy requires an appropriate process window rather than a universal parameter set.

Why Coaxial Powder-Fed DED?

Coaxial powder delivery provides significant flexibility for three-dimensional deposition because the powder stream is arranged around the laser axis. This reduces the directional limitations associated with lateral powder injection and supports deposition paths that change direction during a build.

The DED approach is particularly valuable when the customer requires:

• Near-net-shape copper component manufacturing

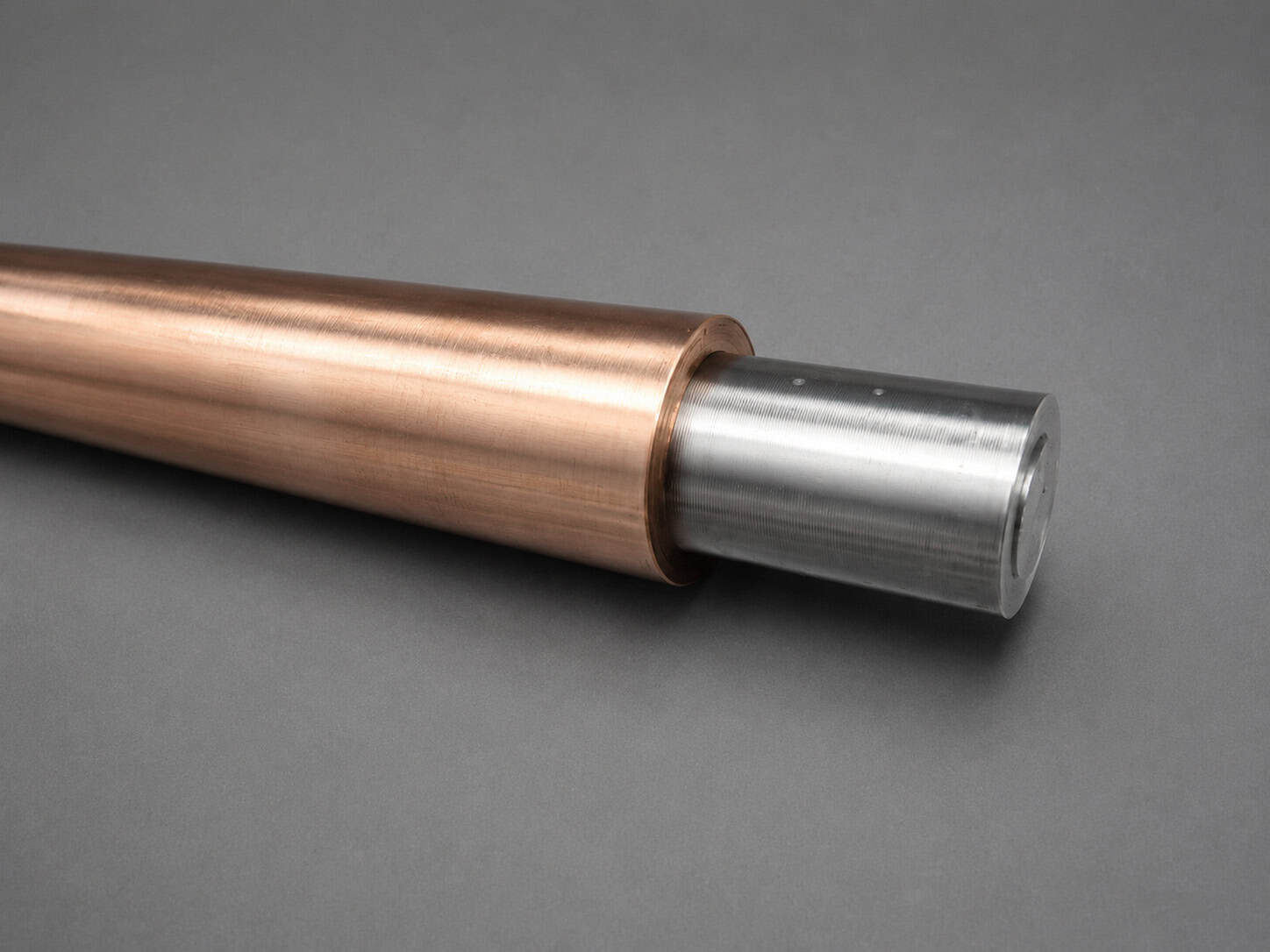

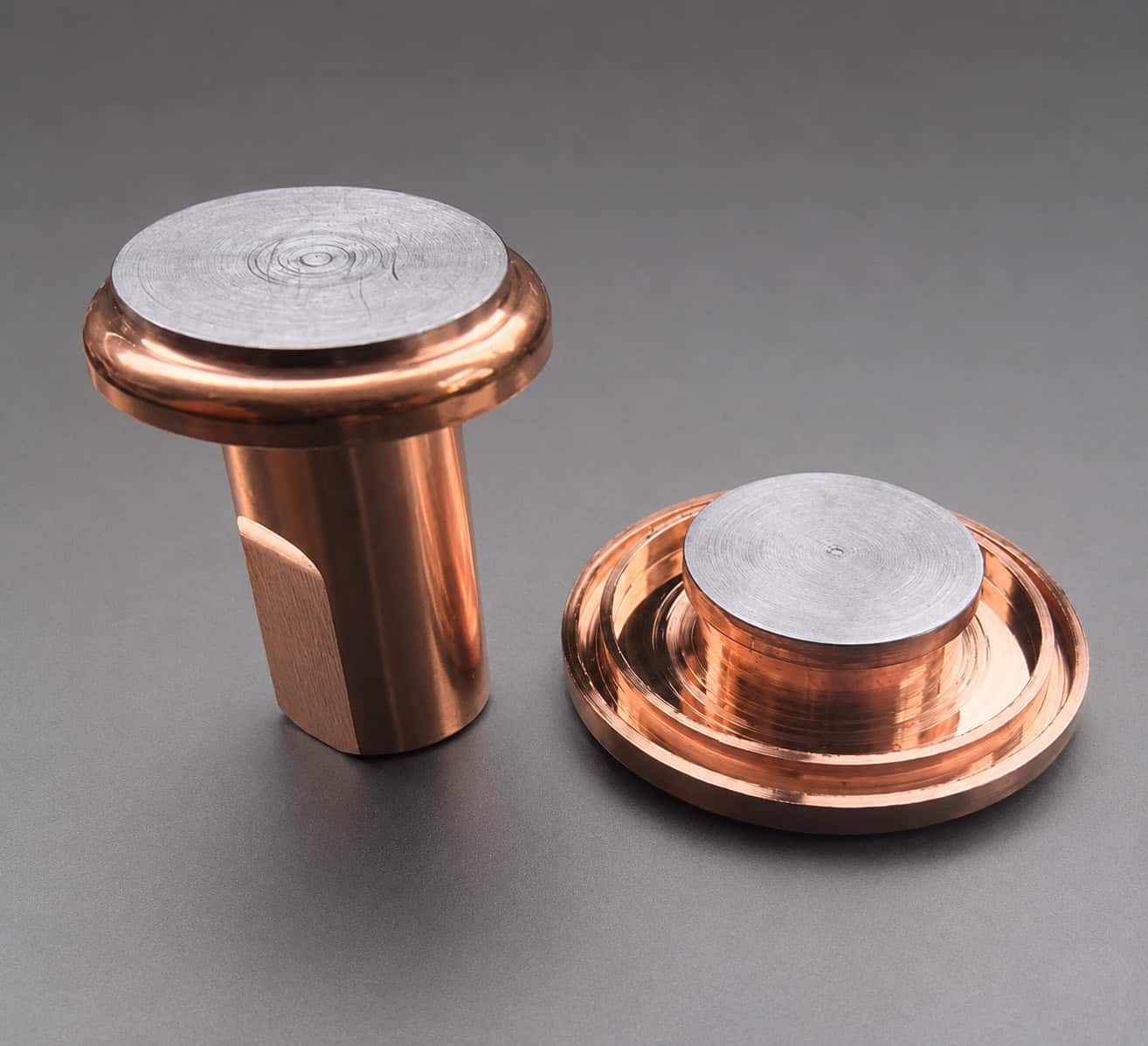

• Addition of copper features onto an existing substrate
• Larger components beyond typical powder-bed build dimensions
• Localized deposition of functional material
• Prototype and small-batch production
• Development of new copper-alloy additive manufacturing processes

Compared with machining an entire component from a large billet, near-net-shape DED can also reduce material removal for suitable geometries, particularly where only specific regions or functional features require deposited material.

From Equipment Delivery to Process Capability

Copper additive manufacturing cannot be treated as an equipment-only project.

For this delivery, GREENSTONE’s work covered the integration of the laser system, coaxial deposition head, powder feeder, precision motion system, shielding and cooling systems, process control and actual deposition verification.

The customer therefore received not simply an assembled machine, but a DED platform developed around the intended copper-material processing requirements.

This same engineering philosophy is used across GREENSTONE’s other delivered DED projects: the equipment architecture and process configuration are selected according to the material, component geometry, build dimensions, required properties and production or research objectives.

Successful Delivery — One of Multiple GREENSTONE DED Projects

Following system integration, process development and actual copper-alloy deposition verification, the GREENSTONE coaxial powder-fed DED system was successfully delivered and commissioned for the customer.

This project is one of a number of GREENSTONE DED systems and customized laser additive manufacturing solutions successfully delivered to customers. Different projects involve different materials, component dimensions, motion architectures and manufacturing objectives, so GREENSTONE does not treat one machine configuration as a universal solution.

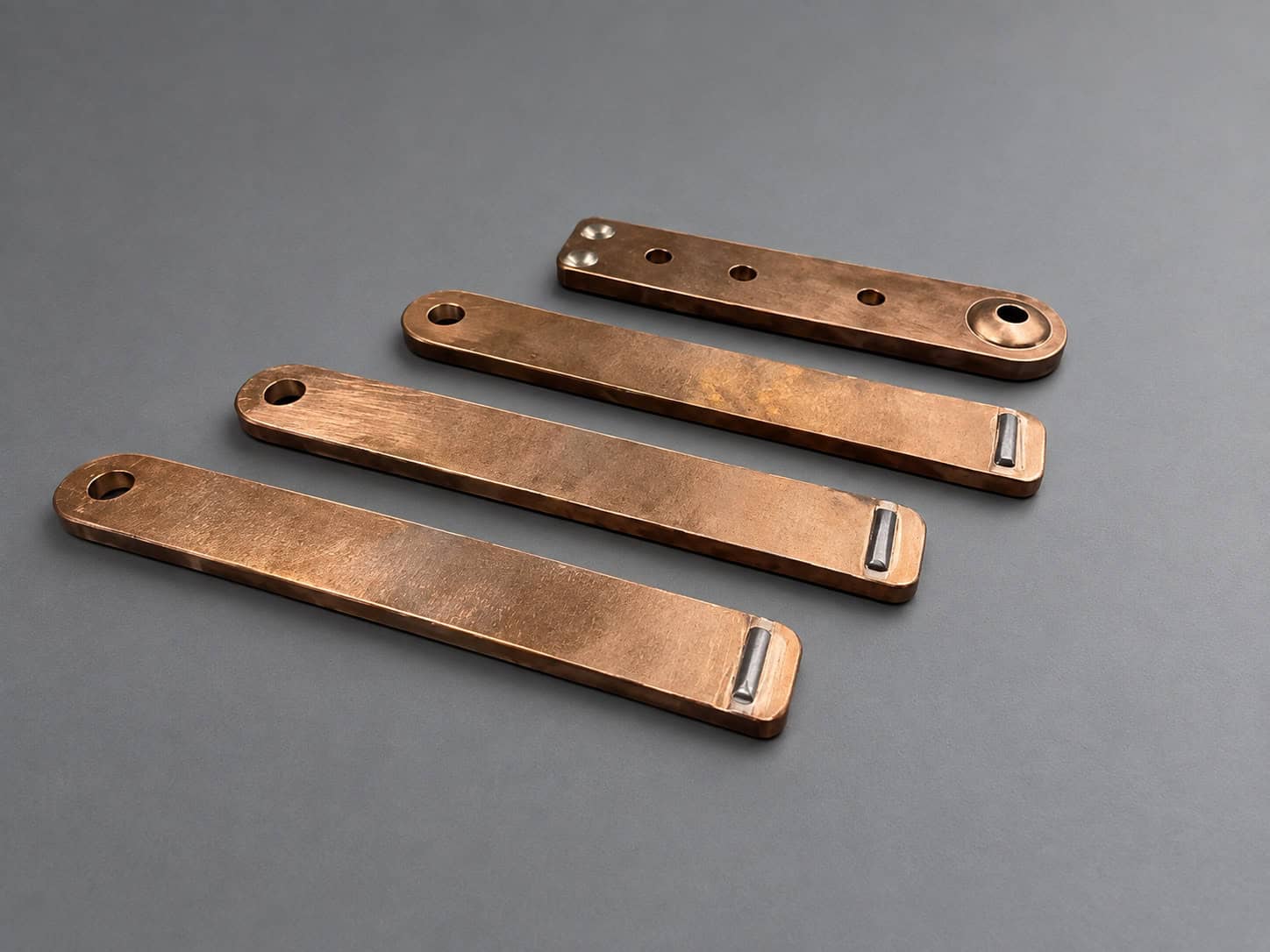

For copper and copper-alloy applications, the system can be developed around requirements such as thermal-management components, conductive structures, heat-transfer components, complex copper features and other industrial functional parts.

Customers can provide the 3D model or drawing, copper-alloy grade, component dimensions, required properties and production objectives. GREENSTONE can then evaluate the appropriate DED system architecture and develop the corresponding process solution.
