1. Application Scenarios and Severe Challenges

Cast pumps (such as centrifugal pumps, plunger pumps, and screw pumps) are the “heart” of industries such as petrochemical, marine power, and energy. The core component, the pump cavity, operates under harsh conditions for long periods. The inner wall of the pump cavity is subjected to high-speed erosion and wear from solid particle-laden media (such as drilling fluid, coal slurry, ash, etc.), high temperatures, high pressures, and exposure to various chemical media (e.g., Cl- ions, H2S, acids, and alkalis). More troublesome is the “cavitation effect,” which occurs due to high-pressure fluid flow changes, leading to the formation of high-pressure shock waves that cause “erosion” damage to the material’s surface.

These combined factors can cause rapid wear failure, corrosion perforation, and cavitation pitting in the pump cavity, which is typically made of cast iron, cast steel, or stainless steel. This leads to equipment leakage, reduced efficiency, increased vibrations, and ultimately unplanned downtime, resulting in significant maintenance costs and production losses. Traditional repair methods, such as build-up welding or complete replacement, either suffer from large thermal stress deformations or incur high costs and long repair cycles. These methods no longer meet the modern industrial demands for equipment reliability, cost-effectiveness, and long service life.

2. Systematic Laser Cladding Solution

Laser cladding technology provides a precise and high-performance systematic solution to address these challenges. The core principle involves using a high-energy laser beam as a heat source, controlled by a CNC system, to simultaneously melt a specifically blended corrosion- and wear-resistant alloy powder onto the damaged area of the pump cavity inner wall. This forms a metallurgically bonded functional coating that endows the part’s surface with superior performance far beyond the base material.

Key Technical Details:

Materials Science: Custom Alloy Powder Systems

For the pump cavity’s different failure modes, selecting the right cladding material is fundamental to performance enhancement.

Nickel-Based Alloys (e.g., Inconel 625 / Hastelloy C276):

Core Advantages: Exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. The rich Cr, Mo, Nb elements form a dense and self-healing passivation film (mainly Cr2O3).

Microstructure: The cladded layer typically consists of an austenitic matrix with a large number of strengthening phases such as Laves phases and carbide-borides, providing excellent strength and corrosion resistance. Suitable for most chemical media and seawater environments.

Cobalt-Based Alloys (e.g., Stellite 6):

Core Advantages: Excellent resistance to abrasive wear, adhesive wear, and high-temperature softening (red hardness). The matrix is rich in Co austenite, with hard carbide particles like Cr7C3 and WC dispersed throughout.

Microstructure: Maintains high hardness even in environments above 500°C, with good corrosion resistance. Particularly suitable for pump cavities subjected to both abrasive wear and high-temperature conditions.

Metal-Ceramic Composite Materials: To further enhance wear resistance, tungsten carbide (WC) particles can be added to the above alloy matrix (30%-50%). These hard phases serve as a “framework” within the cladding, effectively resisting the cutting actions of hard particles.

Process Control: Achieving Precision Coating on Complex Curves

Performing uniform cladding on the internal walls of pump cavities (which are often closed or semi-closed complex curved surfaces) presents a significant challenge.

Special Processing Heads: A dedicated laser cladding head with a long neck and large deflection angle, or integrated into a multi-joint robot, ensures the laser beam works almost perpendicularly on all parts of the pump cavity inner wall, avoiding “shadow effects.”

Coaxial Powder Delivery and Path Planning: The coaxial powder feeding method ensures that the powder stream and the laser beam are concentric, ensuring consistent cladding quality in all 360° directions. Precision scanning path planning based on the 3D model of the pump cavity ensures that the overlap rate of each layer is constant, resulting in uniform thickness and a smooth surface coating.

Ultra-Low Heat Input Control: By precisely controlling the laser power (1-3 kW), scanning speed (5-20 mm/s), and spot diameter, the heat input is minimized. The heat-affected zone width is controlled to between 0.1 and 0.5 mm, effectively preventing deformation in thin-walled pump bodies and preserving the base material’s original properties.

Performance Enhancement Mechanism:

Liaison métallurgique: The coating and base material form a strong metallurgical bond through mutual diffusion of elements, with the bond strength usually exceeding that of the base material, completely eliminating the risk of coating delamination.

Microstructure Refinement: The extremely high cooling rate (10^5~10^6 K/s) of laser cladding leads to a finely refined, dense microstructure in the coating. This significantly reduces compositional segregation, improving the coating’s strength, toughness, and corrosion resistance.

3. Industry Application Cases and Effectiveness

Petrochemical Industry:

Application: Heavy crude oil transmission plunger pump cavities.

Problem: The pump cavity’s inner wall suffers severe abrasive wear due to sand particles, catalyst powders, etc., in the crude oil, along with corrosion from sulfides and acidic media.

Solution: Laser cladding of Inconel 625 + 35% WC composite coating with a coating thickness of 1.5 mm.

Results: After repair, the pump cavity’s wear resistance was more than three times that of the new model, and its corrosion resistance was over five times better. The device’s continuous operation period was extended from 3 months to more than 12 months, with a 300% increase in service life per repair, significantly reducing spare parts procurement and downtime costs.

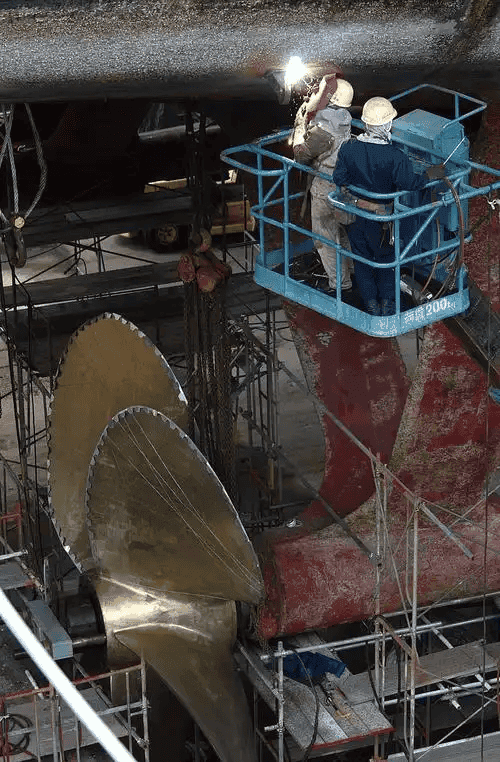

Shipbuilding and Shipping Industry:

Application: Large marine propeller shaft pump cavities (stern tube).

Problem: Long-term operation in seawater leads to erosion from seawater, Cl- ion corrosion, and cavitation damage.

Solution: Laser cladding of Hastelloy C276 nickel-based alloy on the cast iron pump cavity inner wall.

Results: The repaired pump cavity surface was highly smooth, reducing flow resistance. Its seawater corrosion resistance and cavitation resistance improved dramatically, extending the overhaul cycle from 2 years to over 5 years, significantly improving ship availability and navigation safety.
