کشف کنید چگونه پوشش‌دهی لیزری enables circular manufacturing—cutting waste, extending asset life, and replacing polluting processes. See real industrial wins on motor rotor shafts, gears, and hydraulic props, plus Greenstone-Tech’s high-efficiency DED solutions.

Target keywords: laser cladding, green manufacturing, circular economy, remanufacturing, rotor shaft repair, gear laser cladding, hydraulic prop cladding, EHLA, Greenstone-Tech, DED laser cladding, low dilution coating

Why Laser Cladding Matters for the Circular Economy

پوشش‌دهی لیزری uses a high-energy laser to create a متالورژیکاً متصل coating on a base metal with رقیق‌شدگی کم and minimal heat input. The result is durable surfaces with higher wear, corrosion, and fatigue resistance—delivered without the chemical waste typical of hard-chrome plating or other legacy processes. Benefits include:

• Resource efficiency: Less precious alloy use, >95% powder utilization (with tuned systems), component life extension 3–5×.
• Environmental gains: No hexavalent chromium, drastically lower wastewater and emissions.
• High performance: Fine microstructures from rapid solidification (10³–10⁶ K/s), dense coatings ≈100% relative density.
• Production agility: Localized, near-net repairs reduce scrap and lead times.

Application 1: Motor Rotor Shaft Remanufacturing

Rotor shafts suffer wear, fretting, impact damage, and fit loosening. پوشش‌دهی لیزری addresses these failure modes with very low heat input (HAZ ≈ 0.1–0.5 mm) and precise energy control, keeping runout within assembly tolerance (e.g., Ø800 mm journal restorations with <0.03 mm TIR after finish).

What works in practice

• Alloy design: Greenstone-Tech tailors Ni-base (e.g., Inconel 625) or Fe-base powders to the substrate and duty cycle. Typical results: HRC 55–62 surface hardness, >400 MPa bond strength—far above ~50 MPa mechanical bonds in plating.
• Process optimization: Grey-Taguchi multi-objective tuning of power, speed, and feed balances hardness vs. dilution with prediction error ≈ 2.68%.
• Economics: 20–35% of new-part price; ~80% lower energy than plating; zero Cr(VI) pollution.

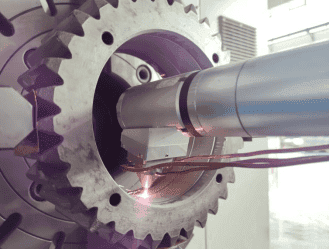

Application 2: Gear Strengthening & Repair

Heavy-duty gears face pitting, scuffing, and tooth breakage. پوشش‌دهی لیزری تحویل می‌دهد low dilution (<10%), refined microstructures, and crack-resistant surfaces—boosting fatigue life.

Why laser cladding beats legacy methods

• Versus welding/thermal spray: Laser cladding forms a پیوند متالورژیکی with a narrow HAZ and near-full density; no layered delamination typical of spray.
• Smart repair cells: Robot + vision (6-axis) improves repair throughput by ~40%; inline OES monitors alloy drift (e.g., کروم variation ≤0.8%), raising first-pass yield to ~99.6%.
• EHLA for thin, fast coatings: Ultra-high-speed EHLA در >150 cm³/h, ~30 µm thin layers, Ra < 20 µm—a proven hard-chrome alternative for wind and rail gearing.

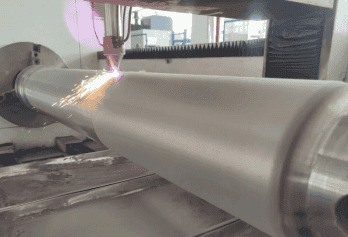

Application 3: Green Replacement for Hydraulic Props

Coal-mine hydraulic props operate in corrosive, abrasive conditions. پوشش‌دهی لیزری replaces plating with zero chemical effluent and long-life coatings.

Scale results

• Performance: Metallurgical bond eliminates peel-off risk; HRC 58–62 hardness; 3–5× the corrosion life of hard-chrome parts.
• Hybrid processes:
  • Laser cleaning + cladding: Pulsed laser pretreats surfaces (reduces surface O from 21.3% → 14.6%) and preheats to ~136 °C, removing a separate preheat step.
  • Additive + CNC finishing: End-to-end flow cuts lead time by ~70%.
• Economics: Users report 2× service life, 60% downtime reduction, and ~40% lower lifecycle maintenance cost.

Technology Advantages that Enable Sustainability

• Low heat input & distortion: Tight geometries preserved; ideal for shafts, seats, thin-wall parts.
• Parameter intelligence: Real-time control of P–V–D (power, speed, spot), overlap, and gas flow stabilizes bead geometry and dilution.
• Material breadth: From Al and steels to Ni-superalloys and W-rich systems; gradient cladding enables smooth transitions across dissimilar metals.
• Process combinations: Laser cleaning, EHLA, coaxial wire feeding, and hybrid print-and-machine lines accelerate throughput and quality.

Market Outlook & Green Impact

• Growth: Laser cladding services are projected to exceed $12.3B by 2031 (CAGR ~12.7%), with the APAC region growing fastest.
• Carbon reduction: Aerospace blade and lightweight part repairs via laser cladding can cut CO₂ by >45% vs. replace-with-new scenarios.
• Circularity: 60% lower resource use, ≥95% powder utilization (with recovery loops), and elimination of heavy-metal discharge meet carbon-peaking policies and ESG goals.

Greenstone-Tech: From R&D to Factory Proof

• DED platforms: Ultra-high-speed systems up to EHLA rates; protective-atmosphere cells for reactive alloys.
• Process intelligence: AI-assisted recipes, closed-loop plume and melt-pool control, digital traceability.
• Hardware depth: Wear-resistant nozzles (>2000 h), precision feeders (±1%, up to 50 kg/h), and powder recovery for >95% utilization.
• Hybrid lines: Additive + subtractive cells compress lead times while holding tight tolerances.

Implementation Checklist (Quick Wins)

1. Define function: wear, corrosion, fatigue, or combined.
2. Select alloy & target dilution: aim 5–8% for property retention + strong bond.
3. Tune P–V–F–overlap: optimize with small DoE; confirm by cross-section (porosity, dilution, HAZ).
4. Surface prep: laser cleaning or grit + solvent; lock in a clean, dry, oxide-free baseline.
5. QA & digitization: inline spectrometry/vision, hardness maps, and digital recipes for repeatability.

FAQs (Rich-result Friendly)

Is laser cladding environmentally friendly?
Yes. It eliminates Cr(VI) plating chemistry, minimizes waste, and enables remanufacturing instead of scrapping.

How does laser cladding support the circular economy?
By restoring high-value parts to service with less material and energy, raising utilization, and cutting lifecycle emissions.

Can laser cladding replace hard chrome?
In many cases, yes—especially with EHLA thin coatings that meet or exceed wear/corrosion performance while avoiding toxic effluents.

What industries see the fastest ROI?
Aerospace, energy, mining, rail, marine, and heavy equipment—anywhere large parts are costly to replace and downtime is expensive.

Bottom line: پوشش‌دهی لیزری is a practical engine for green, circular manufacturing—extending life, cutting waste, and replacing polluting surface processes. With Greenstone-Tech’s intelligent DED platforms, tailored alloys, and hybrid production lines, manufacturers gain a faster, cleaner path to high-performance remanufacturing and sustainable growth.
