پوشش‌دهی لیزری is an advanced technology that has revolutionized the way we repair and restore components. It is an additive manufacturing process where high-power laser beams are used to fuse layers of material onto a substrate. This process helps create protective coatings that improve functionality and restore worn surfaces.

آن پوشش‌دهی لیزری process has been widely applied in industries such as aerospace, automotive, and medical fields, thanks to its numerous advantages. It plays a significant role in extending the lifespan of machinery, especially those exposed to wear, impact, and corrosion.

In this article, we will explore the various aspects of پوشش‌دهی لیزری, including its benefits, applications, and future prospects. Let’s dive in!

Overview of Laser Cladding Technology

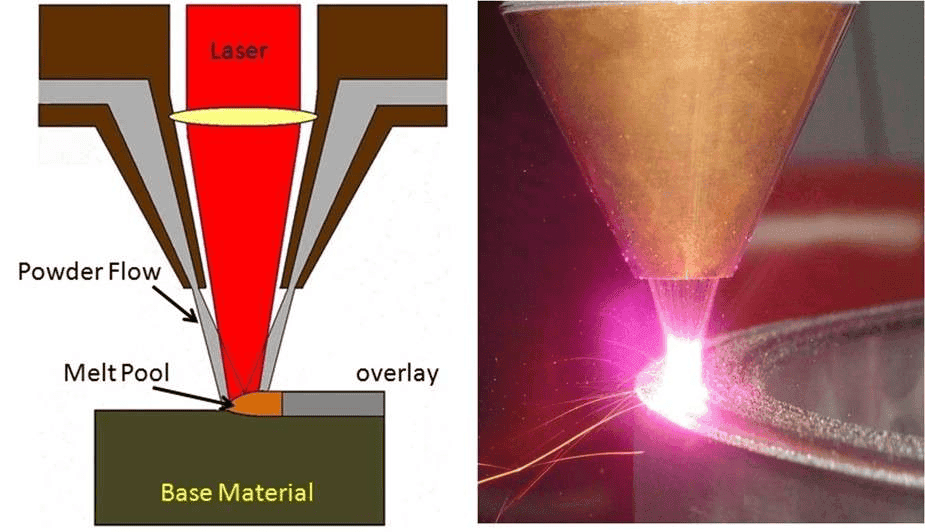

پوشش‌دهی لیزری (also known as laser metal deposition) is a method where one material is deposited onto another. As the laser beam scans the sample surface, metal powder or wire is introduced into the molten pool generated by the laser, creating a layer of the selected material.

Laser technology ensures precise and selective deposition of materials with minimal heat input to the underlying substrate. It can improve the surface properties of parts, such as wear resistance, and repair damaged or worn surfaces. One of the most precise پوشش‌دهی لیزری welding methods is used to establish mechanical bonds between the substrate and the deposited layer.

Laser Cladding Process Summary

پوشش‌دهی لیزری is a method where a laser is used as a heat source to apply a metallic coating on a part’s surface. This technology typically produces protective coatings that enhance efficiency and repair damaged or worn surfaces. The application of پوشش‌دهی لیزری is not limited to components exposed to corrosion, wear, or impact in machinery and equipment. For example, the construction equipment industry uses پوشش‌دهی لیزری to increase wear resistance and extend the service life of equipment.

Typically, پوشش‌دهی لیزری involves melting metal powder using a laser (such as IPG’s high-power multimode fiber lasers) and applying the coating to the substrate. Alloy steels or stainless steels can be protected with coatings made of tungsten carbide, nickel alloys, or cobalt alloys. This method creates a strong metallurgical bond with minimal dilution of the base material, enhancing the metal’s corrosion resistance, wear resistance, and toughness.

Types of Lasers Used for Cladding

آن پوشش‌دهی لیزری process uses different types of lasers depending on the requirements of the coating process and specific applications. Some common types include:

CO2 Lasers: These gas lasers can generate very high power and are typically used in cladding applications that require deep penetration. CO2 lasers operate by discharging carbon dioxide gas molecules, which emit photons at a specific wavelength of around 10.6 microns.

Fiber Lasers: These are solid-state lasers that use optical fibers as the medium to deliver the laser beam. Fiber lasers can provide high-quality coatings with smooth surface finish. They are widely used in various پوشش‌دهی لیزری applications due to their high power output, excellent beam quality, and efficient operation.

Nd:YAG Lasers: Nd:YAG (Neodymium-doped Yttrium Aluminum Garnet) lasers are solid-state lasers often used in پوشش‌دهی لیزری. They offer a wide range of power densities and have a high pulse repetition rate, making them suitable for precise and effective cladding applications.

Diode Lasers: These semiconductor-based lasers are typically used for low-power پوشش‌دهی لیزری applications. PN junction diodes are used as the lasing medium in these lasers.

Materials Used in Laser Cladding

پوشش‌دهی لیزری uses various materials, including metal powders, ceramic powders, and composite powders. The selection of materials depends on the desired coating properties, such as thermal stability, corrosion resistance, and wear resistance. Common materials used in پوشش‌دهی لیزری شامل:

پودرهای فلزی: Common metal powders used in پوشش‌دهی لیزری include titanium, aluminum, cobalt-based alloys, and nickel-based alloys.

Ceramic Powders: Ceramic particles such as aluminum oxide, zirconium oxide, and carbides like tungsten carbide are used for پوشش‌دهی لیزری.

Composite Powders: Coatings with special properties can be made from composite powders, which are combinations of metal and ceramic powders.

Advantages of Laser Cladding Over Other Coating Methods

Compared to other coating methods, پوشش‌دهی لیزری offers many advantages. Some of the key benefits include:

Superior coating quality: پوشش‌دهی لیزری offers high adhesion strength and integrity with improved surface quality.

Precision deposition: پوشش‌دهی لیزری allows for precise placement of customized performance-enhancing materials, ensuring that the coatings are selectively deposited where needed.

Minimal heat input: The process uses minimal heat, reducing the heat-affected zone (HAZ) and minimizing the deformation of the base material.

Material flexibility: پوشش‌دهی لیزری can be used on a wide variety of materials, including custom alloys and metal matrix composites (MMCs).

Low porosity: The deposited material in پوشش‌دهی لیزری is typically more than 99.9% dense, with minimal porosity.

Shorter manufacturing time: The integration of پوشش‌دهی لیزری with CAD/CAM systems and the ability to control laser output reduces manufacturing time compared to traditional coating methods.

کاهش ضایعات مواد: پوشش‌دهی لیزری only applies material where it is needed, reducing material waste and providing a more environmentally friendly solution.

Benefits of Laser Cladding

This surface modification technology offers several key benefits, including:

Enhanced durability and wear resistance: پوشش‌دهی لیزری improves the wear resistance of materials by depositing harder substances onto softer substrates.

Extended component lifespan: By improving the surface properties of components, پوشش‌دهی لیزری extends their lifespan, allowing them to resist wear, corrosion, and other types of degradation.

Reduced downtime and maintenance costs: Other surface treatments, such as electroplating or thermal spraying, can be more expensive than پوشش‌دهی لیزری. پوشش‌دهی لیزری requires fewer materials and can be completed quickly, reducing maintenance costs.

Improved component functionality and performance: پوشش‌دهی لیزری improves the strength, hardness, and toughness of materials, enhancing their performance in demanding environments.

Eco-friendly and sustainable: پوشش‌دهی لیزری minimizes material waste by only applying material where it is needed, reducing the overall amount of material used.

Applications of Laser Cladding

پوشش‌دهی لیزری is a versatile technology with many applications across various industries. Some common applications include:

Repair of damaged components: One of the primary uses of پوشش‌دهی لیزری is to repair damaged parts. It restores the original shape and functionality of components by adding material to the worn or damaged areas.

Wear-resistant surface modification: Manufacturers use پوشش‌دهی لیزری to apply hard, wear-resistant coatings to metal parts, such as hydraulic cylinders, gears, and engine components. These coatings also provide corrosion protection, extending the life of the parts.

Custom coatings: The process can also be used to change the surface characteristics of parts, such as adding patterns or textures to improve grip or reduce friction for better performance.

High-value component repair: پوشش‌دهی لیزری is especially useful for repairing expensive or hard-to-replace parts, such as molds, shafts, blades, and turbines.

Aerospace and defense applications: In aerospace and defense, پوشش‌دهی لیزری helps enhance the performance and reliability of components in missiles, aircraft, and other high-performance systems.

Automotive applications: The automotive industry benefits from پوشش‌دهی لیزری in applications ranging from enhancing engine components’ performance and durability to extending the lifespan of high-wear parts.

Proleantech, an expert in پوشش‌دهی لیزری technology, offers پوشش‌دهی لیزری services for agricultural harvesting machine parts, significantly reducing wear and extending the lifespan of customer equipment. If you require پوشش‌دهی لیزری services for your products, feel free to contact us anytime.

نتیجه‌گیری

پوشش‌دهی لیزری is an effective method for improving the surface performance of various materials. By using laser beams to deposit a material onto a substrate, it enhances wear and corrosion protection, as well as overall functionality. This process extends component lifespan, reduces maintenance costs, and boosts efficiency.

به عنوان پوشش‌دهی لیزری becomes more accessible and cost-effective, it is increasingly attractive for a wide range of applications. Contact ProLean Tech for the best laser cladding services tailored to your specific needs.
